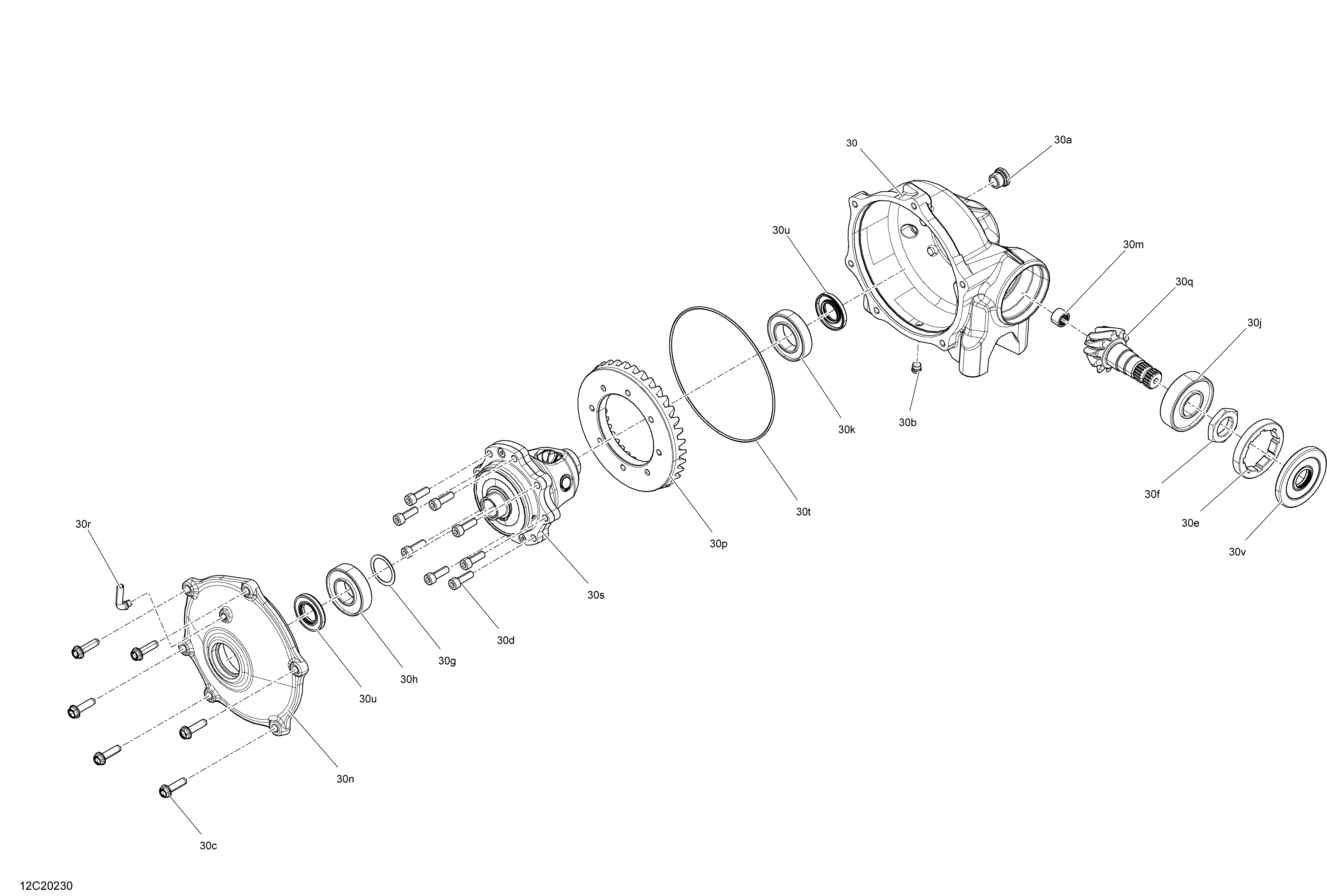

07- Front Drive - Differential Parts для BRP 001 - Maverick Turbo - STD - North America - 2020
-
№АртикулНазвание
-
30705402373 Front Differential Ass'y. Includes 30 to 30vFront Differential Ass'y. Includes 30 to 30v
-
30a705501889 Fill Level PlugFill Level Plug
-
30b705501885 Drain PlugDrain Plug
-
30c705501886 ScrewScrew
-
30d705402375 ScrewScrew
-
30e705401819 Nut M75 X 1.5Nut M75 X 1.5
-
30f705401820 Nut M27 X 1.5Nut M27 X 1.5
-
30g705401604 ShimShim
-
30h705401934 Ball BearingBall Bearing
-
30j705401606 Ball BearingBall Bearing
-
30k705401821 Ball BearingBall Bearing
-
30m705401607 Needle BearingNeedle Bearing
-
30n705401667 Front CoverFront Cover
-
30p705401822 36Th Gear36Th Gear
-
30q705401933 Pinion 10 th.Pinion 10 th.
-
30r705401935 Vent ValveVent Valve
-
30s705402377 DifferentialDifferential
-
30t705501881 Oil Seal iDIA 6.737 oDIA 6.943Oil Seal iDIA 6.737 oDIA 6.943
-
30u705401836 Oil SealOil Seal
-
30v705401827 Oil Seal, Triple Lip 25 X 79 X 8Oil Seal, Triple Lip 25 X 79 X 8
