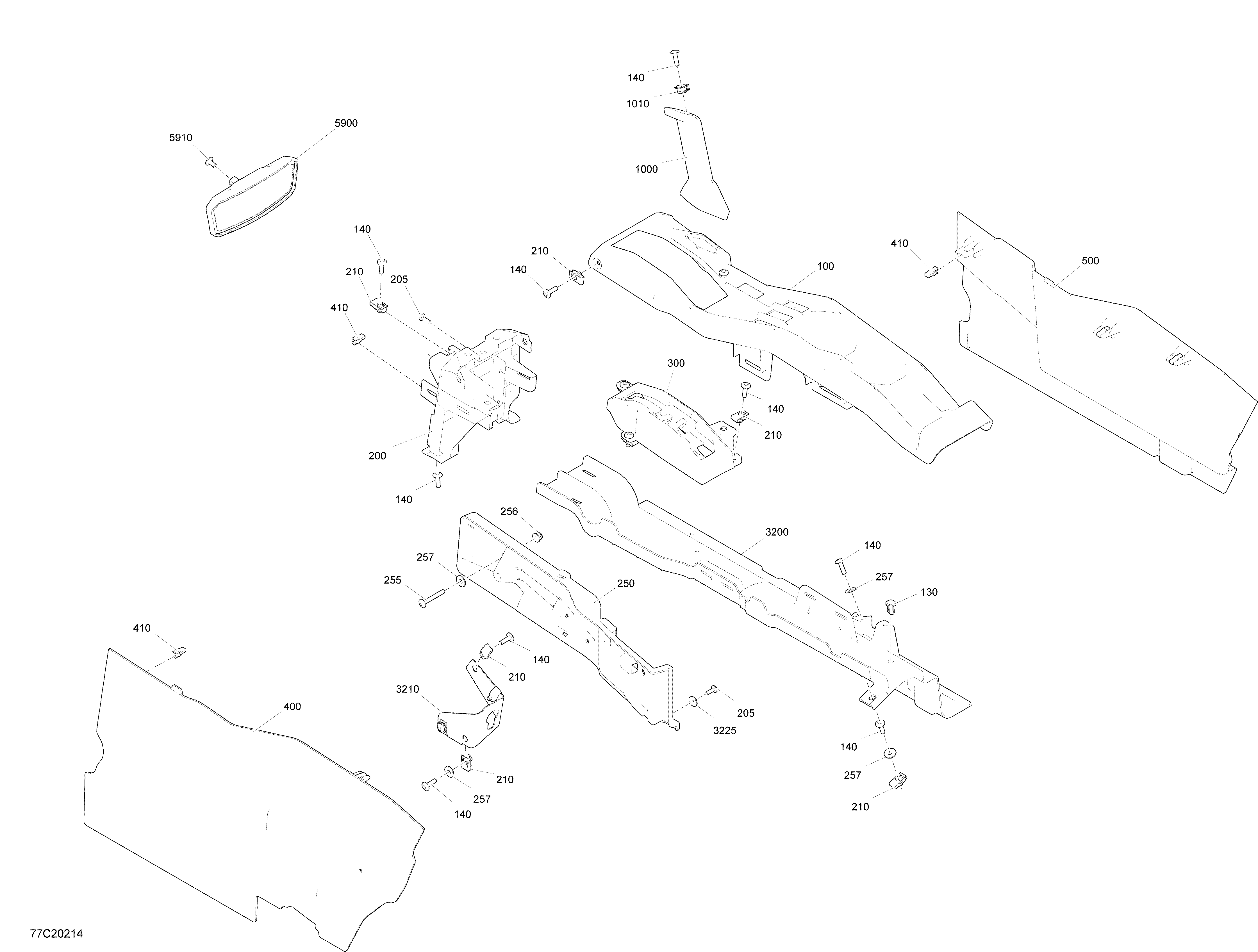

09- Cab Interior - Console - STD для BRP 001 - Maverick Turbo - STD - North America - 2020
-
№АртикулНазвание
-
100715004068 Front Console KitFront Console Kit
-
130293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
140250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
200707900459 Front Central Consol SupportFront Central Consol Support
-
205250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
210250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
250707900488 Shifter Gate SupportShifter Gate Support
-
255250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
256233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
257234062670 Flat Washer, StainlessFlat Washer, Stainless
-
300707900644 Lever IndicatorLever Indicator
-
400707900396 LH Lateral Dash PanelLH Lateral Dash Panel
-
410705010721 ClipClip
-
500707900397 RH Lateral Dash PanelRH Lateral Dash Panel
-
1000707900011 Passenger HandlePassenger Handle
-
1010707900048 Connector TubeConnector Tube
-
3200707900710 Support Hose CentralSupport Hose Central
-
3210707900478 Cable SupportCable Support
-
3225250200025 Washer M5Washer M5
-
5900707900502 Central MirrorCentral Mirror
-
5910250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
