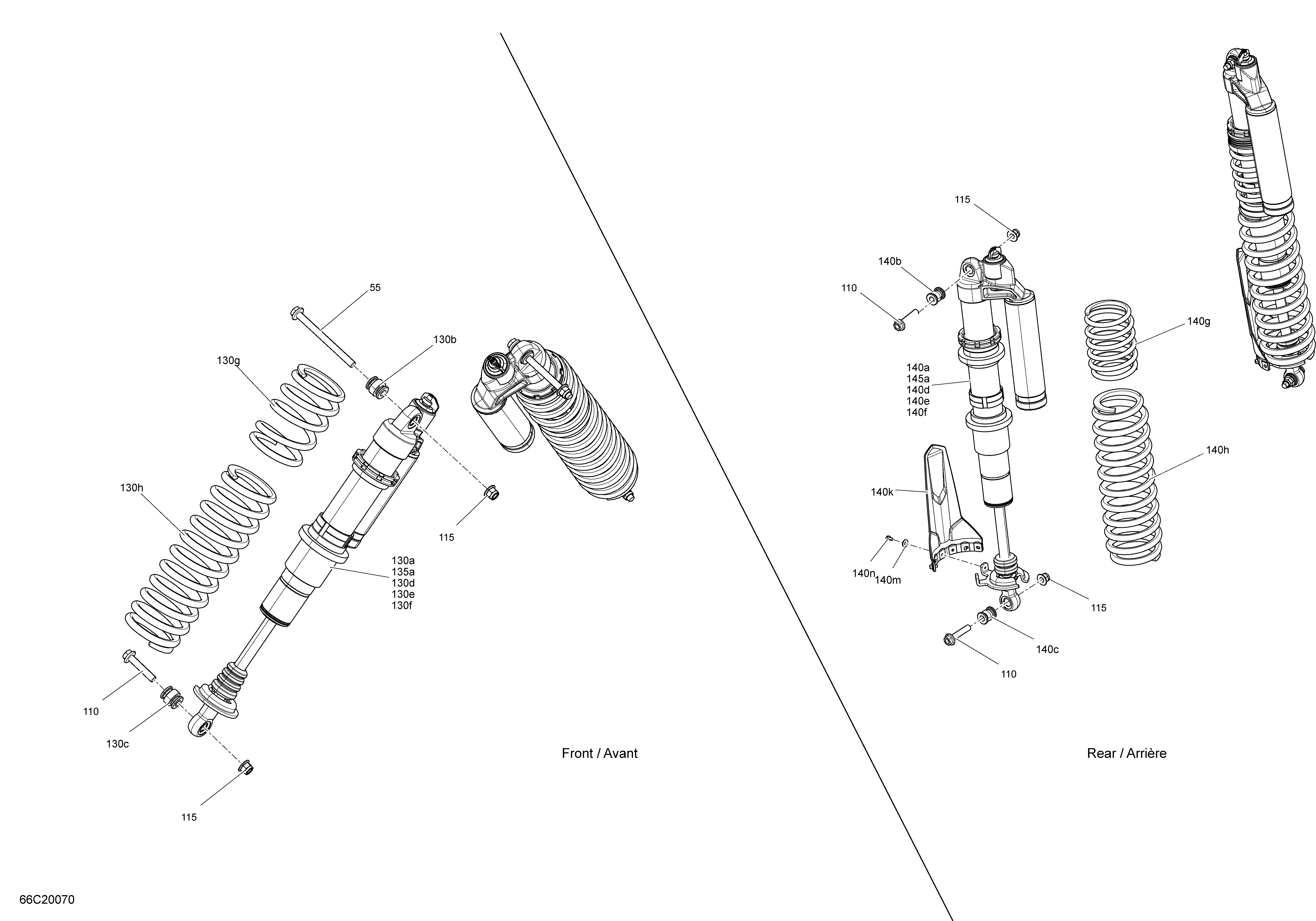

08- Shocks - XDS для BRP 008 - Maverick MAX Turbo R, Turbo RR - STD_XDS_XRS - North America - 2020
-
№АртикулНазвание
-
55250000861 Screw Flange M12 X 145Screw Flange M12 X 145
-
110250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
115233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
130a706202788 LH Front Shock. Includes 130a to 130fLH Front Shock. Includes 130a to 130f
-
130b715900337 Spherical BearingSpherical Bearing
-
130c715900482 BearingBearing
-
130d715900338 O-Ring BushingO-Ring Bushing
-
130e715900480 CirclipCirclip
-
130f715900481 ReducerReducer
-
130g706202586 Black Front Spring. Model Phoenix Orange & Timeless BlackBlack Front Spring. Model Phoenix Orange & Timeless Black
-
130g706203824 Manta Green, Front Compression Spring. Model Mineral Gray SatinManta Green, Front Compression Spring. Model Mineral Gray Satin
-
130h706202790 Black Front Spring. Model Phoenix Orange & Timeless BlackBlack Front Spring. Model Phoenix Orange & Timeless Black
-
130h706203825 Manta Green, Front Compression Spring. Model Mineral Gray SatinManta Green, Front Compression Spring. Model Mineral Gray Satin
-
135a706202789 RH Front Shock. Includes 135a to 135fRH Front Shock. Includes 135a to 135f
-
140a706002660 LH Rear Shock. Includes 140a to 140fLH Rear Shock. Includes 140a to 140f
-
140b715900337 Spherical BearingSpherical Bearing
-
140c715900482 BearingBearing
-
140d715900338 O-Ring BushingO-Ring Bushing
-
140e715900480 CirclipCirclip
-
140f715900481 ReducerReducer
-
140g706002662 Black Rear Spring. Model Phoenix Orange & Timeless BlackBlack Rear Spring. Model Phoenix Orange & Timeless Black
-
140g706003556 Manta Green, Rear Compression Spring. Model Mineral Gray SatinManta Green, Rear Compression Spring. Model Mineral Gray Satin
-
140h706002661 Black Rear Spring. Model Phoenix Orange & Timeless BlackBlack Rear Spring. Model Phoenix Orange & Timeless Black
-
140h706003555 Manta Green, Rear Compression Spring. Model Mineral Gray SatinManta Green, Rear Compression Spring. Model Mineral Gray Satin
-
140k706202215 ProtectorProtector
-
140m250200025 Washer M5Washer M5
-
140n210251150 Hex. Flanged Screw M5 X 11Hex. Flanged Screw M5 X 11
-
145a706002663 RH Rear Shock. Includes 145a to 145fRH Rear Shock. Includes 145a to 145f
