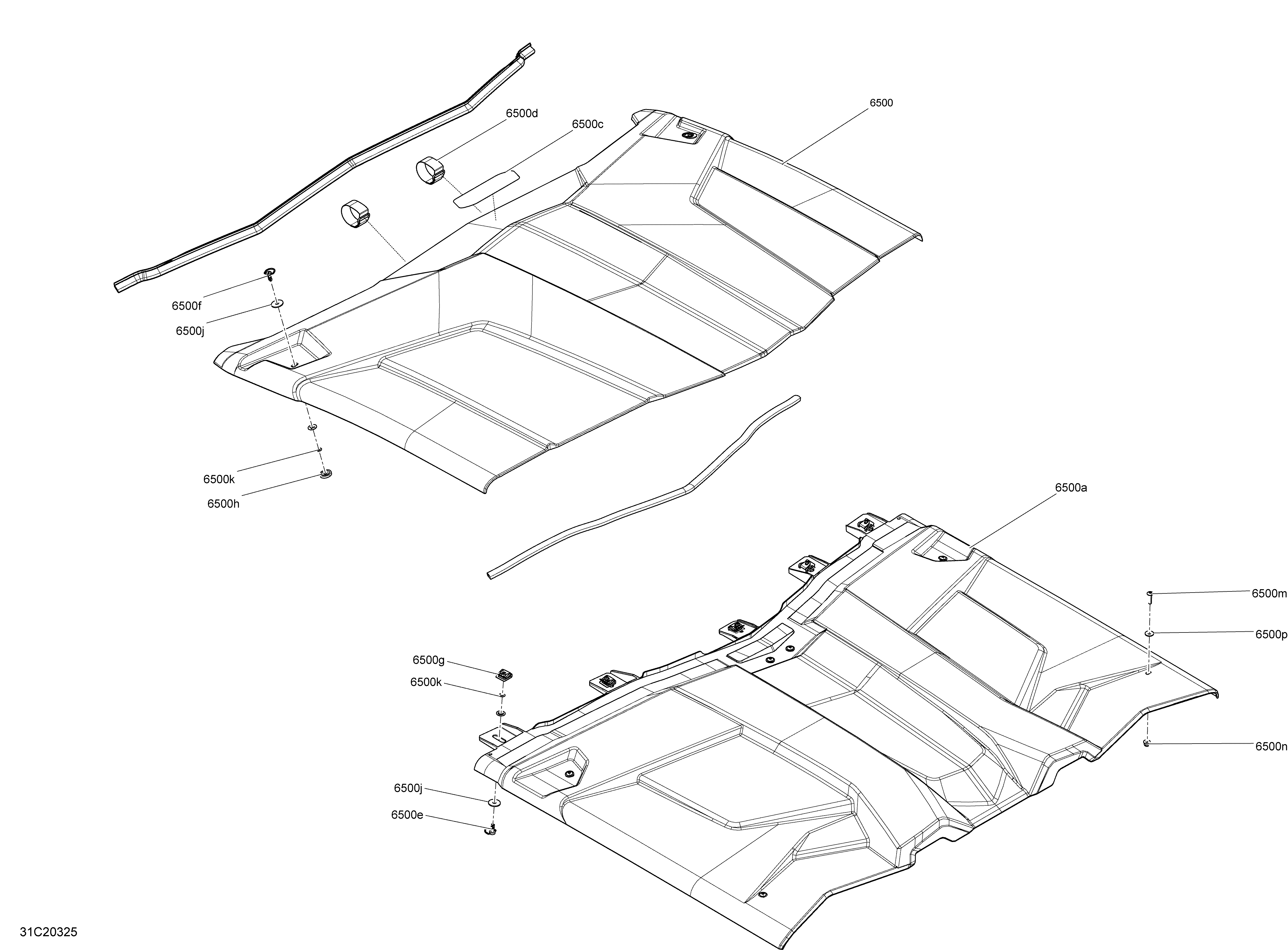

09- Body - Roof Section - XRS для BRP 008 - Maverick MAX Turbo R, Turbo RR - STD_XDS_XRS - North America - 2020
-
№АртикулНазвание
-
6500715003750 Max Sport Roof. Includes 6500 to 6500qMax Sport Roof. Includes 6500 to 6500q
-
6500a715003750 Max Sport RoofMax Sport Roof
-
6500b705012346 Fastener Package. Not Shown. Includes 6500b to 6500qFastener Package. Not Shown. Includes 6500b to 6500q
-
6500c704904566 CAN-AM DecalCAN-AM Decal
-
6500d705011280 StrapStrap
-
6500e705002649 Quarter Turn ScrewQuarter Turn Screw
-
6500f715003815 Quarter Turn Service KitQuarter Turn Service Kit
-
6500g705002651 Quarter Turn NutQuarter Turn Nut
-
6500h705011055 Quarter Turn Urethane WasherQuarter Turn Urethane Washer
-
6500j250200165 Flat Washer M6Flat Washer M6
-
6500k705002650 WasherWasher
-
6500m250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
6500n233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6500p250200029 Washer M6Washer M6
-
6500q250000720 Torx Screw K50 X 16. Not ShownTorx Screw K50 X 16. Not Shown
