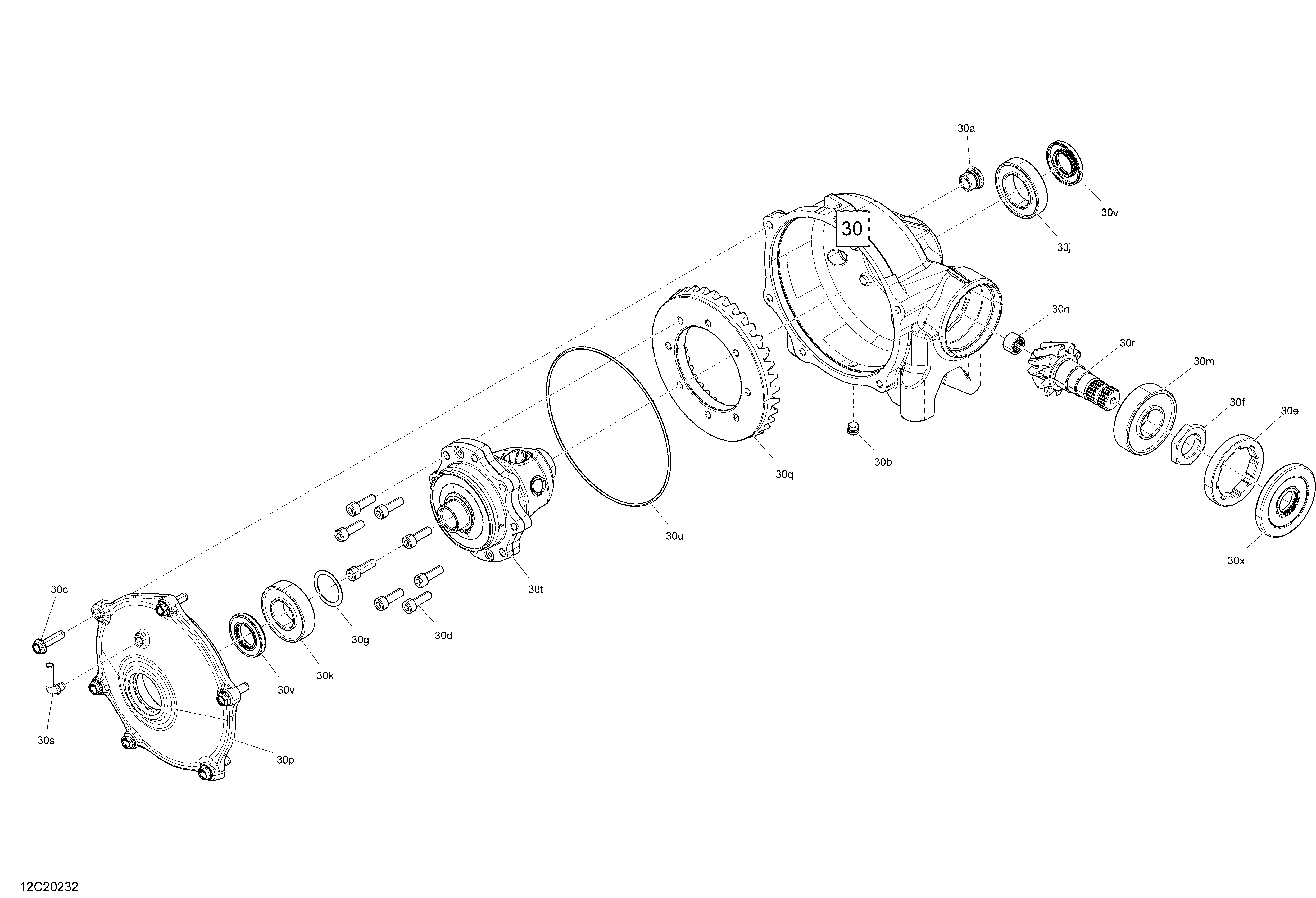

07- Front Drive - Differential Parts для BRP 001 - Maverick Sport 1000 - BASE - North America - 2020
-
№АртикулНазвание
-
30705402373 Front Differential Ass'y. Includes 30 to 30xFront Differential Ass'y. Includes 30 to 30x
-
30a705501889 Fill Level PlugFill Level Plug
-
30b705501885 Drain PlugDrain Plug
-
30c705501886 ScrewScrew
-
30d705402375 ScrewScrew
-
30e705401819 Nut M75 X 1.5Nut M75 X 1.5
-
30f705401820 Nut M27 X 1.5Nut M27 X 1.5
-
30g705401604 ShimShim
-
30j705401934 Ball BearingBall Bearing
-
30k705401606 Ball BearingBall Bearing
-
30m705401821 Ball BearingBall Bearing
-
30n705401607 Needle BearingNeedle Bearing
-
30p705401667 Front CoverFront Cover
-
30q705401822 36Th Gear36Th Gear
-
30r705401933 Pinion 10 th.Pinion 10 th.
-
30s705401935 Vent ValveVent Valve
-
30t705402377 DifferentialDifferential
-
30u705501881 Oil Seal iDIA 6.737 oDIA 6.943Oil Seal iDIA 6.737 oDIA 6.943
-
30v705401836 Oil SealOil Seal
-
30x705401827 Oil Seal, Triple Lip 25 X 79 X 8Oil Seal, Triple Lip 25 X 79 X 8
