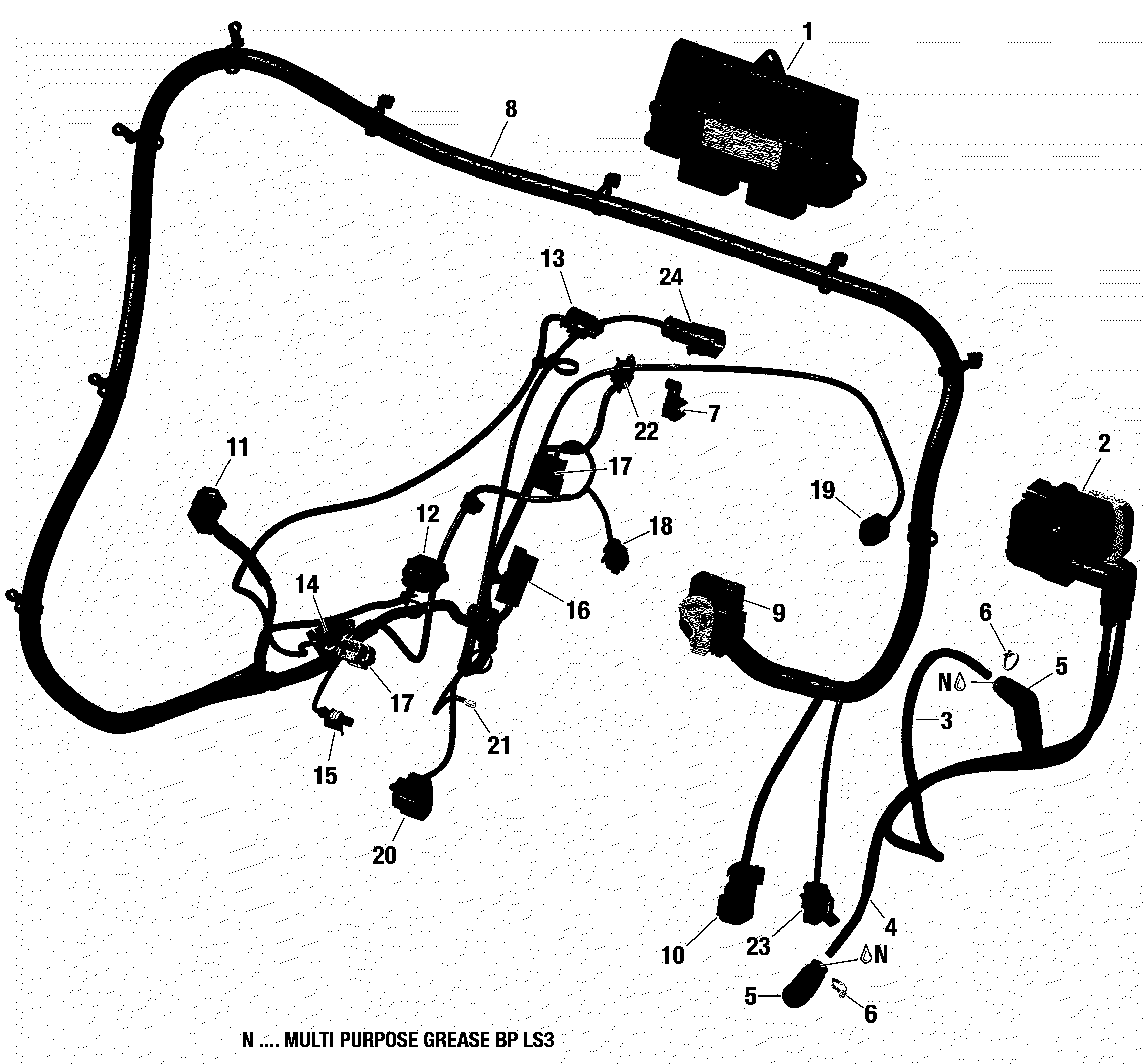

10- Engine Harness And Electronic Module для BRP 001 - Maverick Sport 1000 - BASE - North America - 2020
-
№АртикулНазвание
-
1420464425 Electronic ModuleElectronic Module
-
2>2a278001546 Ignition CoilIgnition Coil
-
2a710000568 HousingHousing
-
3420665333 Spark Plug Cable, 790 mm, RearSpark Plug Cable, 790 mm, Rear
-
4420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
5420265248 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
8>24420666584 Wiring HarnessWiring Harness
-
10710001927 HousingHousing
-
11710001872 Housing, 6 PositionsHousing, 6 Positions
-
12515176410 Male ConnectorMale Connector
-
13278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
14278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
15278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
16278002378 Male HousingMale Housing
-
18278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
19278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
20710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
21278001009 Female TerminalFemale Terminal
-
21278001007 Insulated SheathInsulated Sheath
-
22710001169 HousingHousing
-
23710001132 HousingHousing
-
24710002466 HousingHousing
