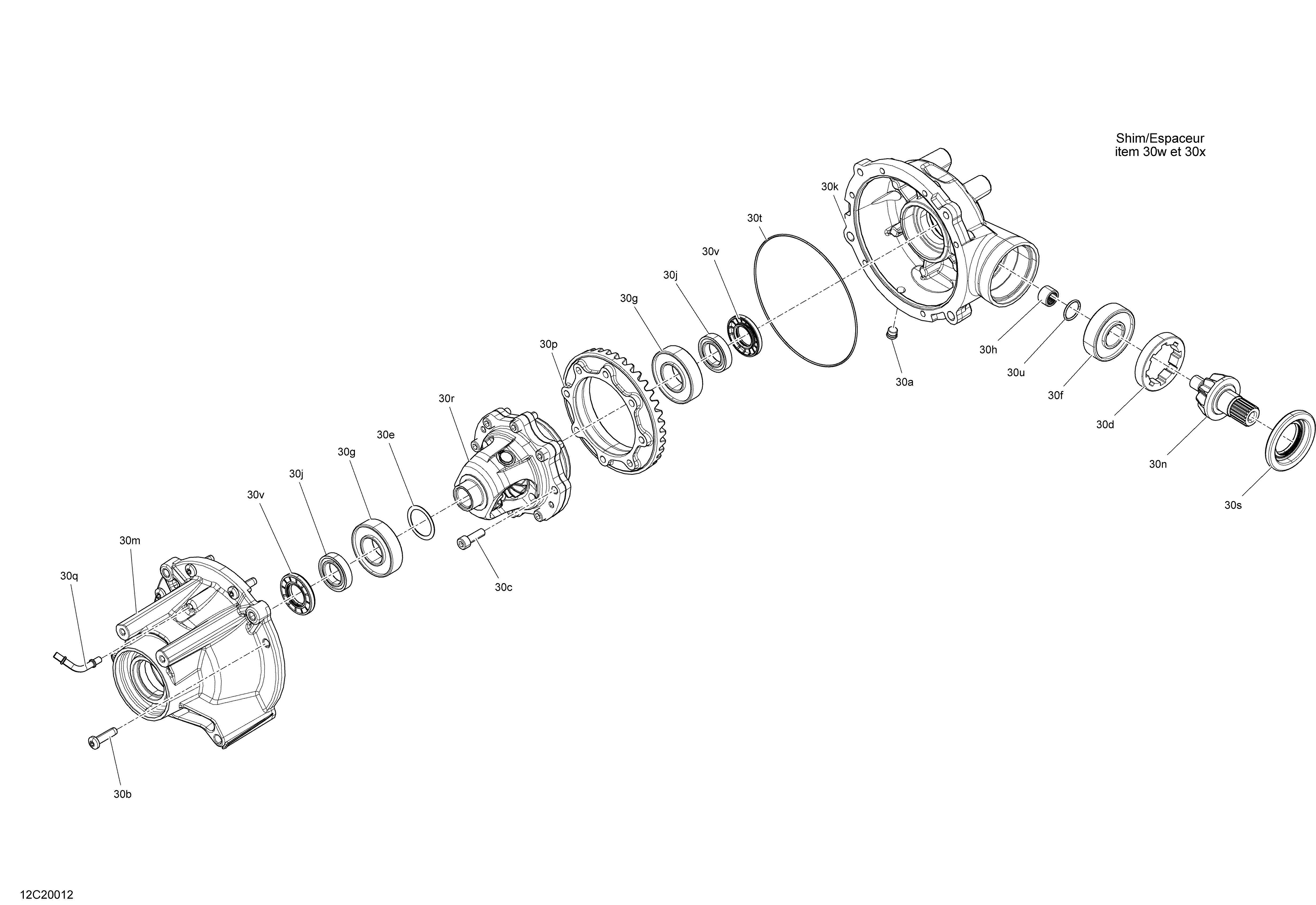

07- Front Drive - Differential Parts для BRP 001 - Commander 800R EFI - International - 2020
-
№АртикулНазвание
-
30a705501885 Drain Plug. Package DPSDrain Plug. Package DPS
-
30b705401601 Screw. Package DPSScrew. Package DPS
-
30c705401602 Screw. Package DPSScrew. Package DPS
-
30d705401603 Nut. Package DPSNut. Package DPS
-
30e705401604 Shim. Package DPSShim. Package DPS
-
30f705401605 Ball Bearing. Package DPSBall Bearing. Package DPS
-
30g705401606 Ball Bearing. Package DPSBall Bearing. Package DPS
-
30h705401607 Needle Bearing. Package DPSNeedle Bearing. Package DPS
-
30j705401608 Ball Bearing. Package DPSBall Bearing. Package DPS
-
30k705401792 Front Cover, Pinion. Package DPSFront Cover, Pinion. Package DPS
-
30m705401610 Front Cover. Package DPSFront Cover. Package DPS
-
30n705401791 Pinion 10 Teeth. Package DPSPinion 10 Teeth. Package DPS
-
30p705401612 Gear 36 Teeth. Package DPSGear 36 Teeth. Package DPS
-
30q705401613 Vent Valve. Package DPSVent Valve. Package DPS
-
30r705402182 Differential. Package DPSDifferential. Package DPS
-
30s705401615 Oil Seal. Package DPSOil Seal. Package DPS
-
30t705401616 Seal. Package DPSSeal. Package DPS
-
30u705401617 O'Ring. Package DPSO'Ring. Package DPS
-
30v705401618 Gasket. Package DPSGasket. Package DPS
-
30w705401769 Shim. Package DPS. Not shownShim. Package DPS. Not shown
-
30x705401770 Shim. Package DPS. Not shownShim. Package DPS. Not shown
-
30a705501885 Drain Plug. Package STDDrain Plug. Package STD
-
30b705401601 Screw. Package STDScrew. Package STD
-
30c705401602 Screw. Package STDScrew. Package STD
-
30d705401603 Nut. Package STDNut. Package STD
-
30e705401604 Shim. Package STDShim. Package STD
-
30f705401605 Ball Bearing. Package STDBall Bearing. Package STD
-
30g705401606 Ball Bearing. Package STDBall Bearing. Package STD
-
30h705401607 Needle Bearing. Package STDNeedle Bearing. Package STD
-
30j705401608 Ball Bearing. Package STDBall Bearing. Package STD
-
30k705401792 Front Cover, Pinion. Package STDFront Cover, Pinion. Package STD
-
30m705401610 Front Cover. Package STDFront Cover. Package STD
-
30n705401791 Pinion 10 Teeth. Package STDPinion 10 Teeth. Package STD
-
30p705401612 Gear 36 Teeth. Package STDGear 36 Teeth. Package STD
-
30q705401613 Vent Valve. Package STDVent Valve. Package STD
-
30r705402184 Differential. Package STDDifferential. Package STD
-
30s705401615 Oil Seal. Package STDOil Seal. Package STD
-
30t705401616 Seal. Package STDSeal. Package STD
-
30u705401617 O'Ring. Package STDO'Ring. Package STD
-
30v705401618 Gasket. Package STDGasket. Package STD
-
30w705401769 Shim. Package STD. Not shownShim. Package STD. Not shown
-
30x705401770 Shim. Package STD. Not shownShim. Package STD. Not shown
