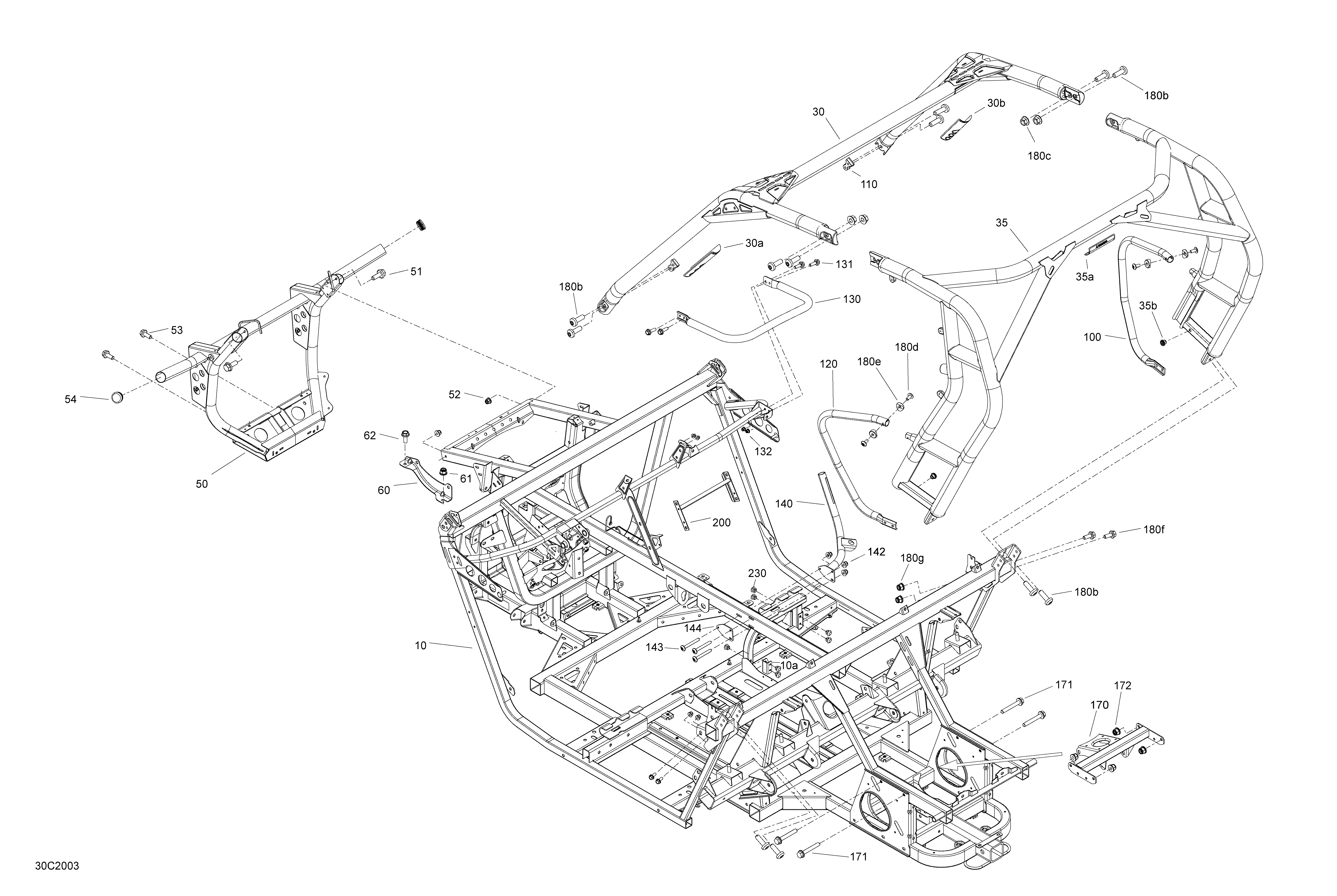

09- Frame для BRP 001 - Commander 800R EFI - International - 2020
-
№АртикулНазвание
-
10715004811 Black, Frame. Includes 10 to 10aBlack, Frame. Includes 10 to 10a
-
10a705202602 Seat SupportSeat Support
-
30715004812 Deep Black, Cage Ass'y. Includes 30 to 30bDeep Black, Cage Ass'y. Includes 30 to 30b
-
30a704903679 Warning LabelWarning Label
-
30b704903680 Warning LabelWarning Label
-
35715004812 Deep Black, Cage Ass'y. Includes 35 to 35bDeep Black, Cage Ass'y. Includes 35 to 35b
-
35a704903492 Warning LabelWarning Label
-
35b250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
50705202995 Black Front BumperBlack Front Bumper
-
51207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
52233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
53207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
54705202455 CapCap
-
60705201721 Front Differential SupportFront Differential Support
-
61233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
62207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
100705203640 Black RH Side Protector TubeBlack RH Side Protector Tube
-
110705203415 Binding BlockBinding Block
-
120705203637 Black LH Side Protector TubeBlack LH Side Protector Tube
-
130705203332 Black HandleBlack Handle
-
131207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
132233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
140705204399 Black Console HandleBlack Console Handle
-
142233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
143250000317 Torx Screw M6 X 50Torx Screw M6 X 50
-
144705204606 Steel PlateSteel Plate
-
170705203538 Differential HolderDifferential Holder
-
171207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
172233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
180b250000848 Screw Pan M10 X 30Screw Pan M10 X 30
-
180c233101464 Hex. Elastic Flange Nut , M10 X 1.5Hex. Elastic Flange Nut , M10 X 1.5
-
180d250000789 Torx Truss M6X14Torx Truss M6X14
-
180e705202223 Offset WasherOffset Washer
-
180f207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
180g233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
200705203330 Reinforcement PanelReinforcement Panel
-
230293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
