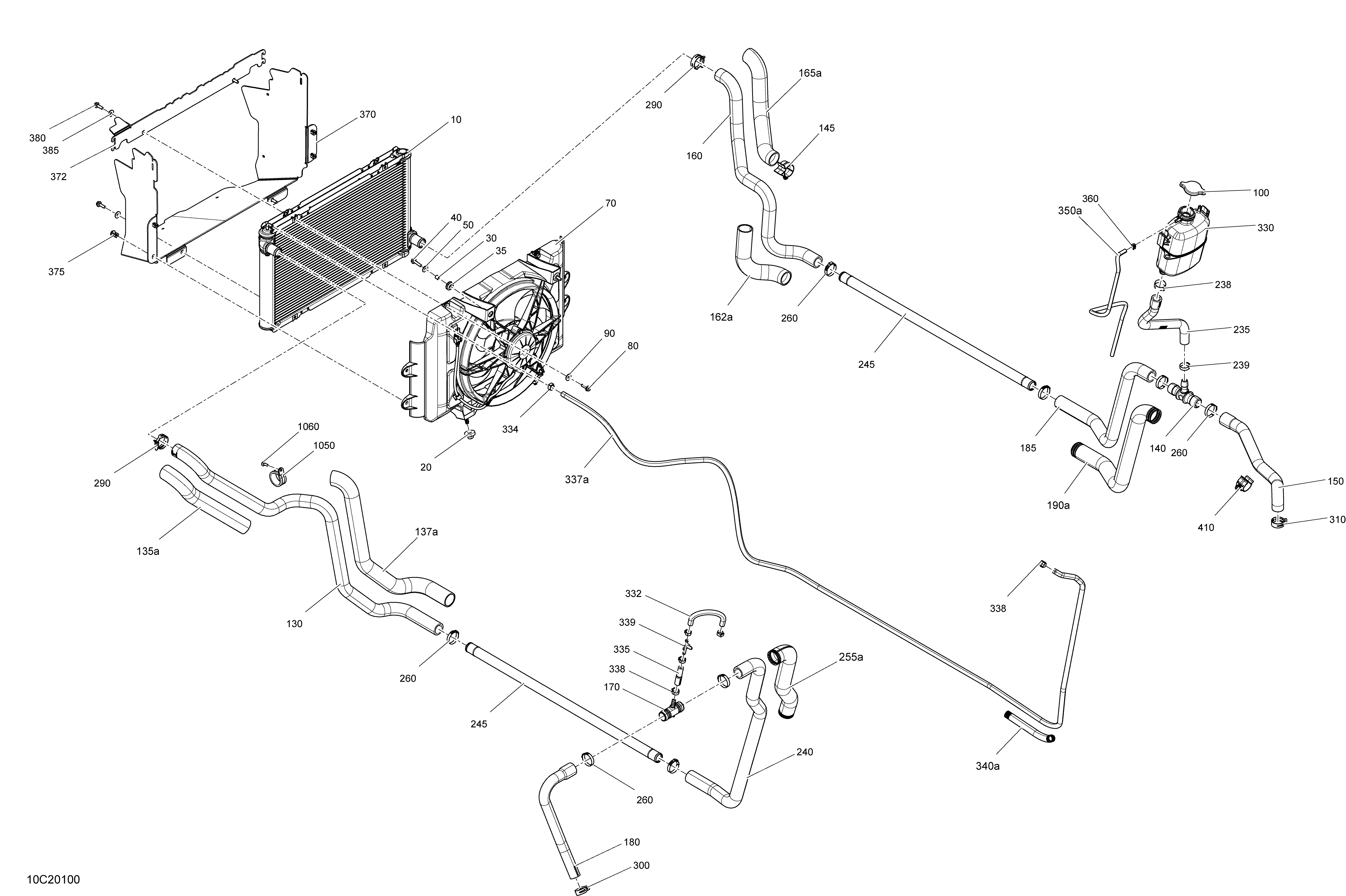

01- Cooling - System для BRP 001 - Defender HD5 - International - 2020
-
№АртикулНазвание
-
10709200951 RadiatorRadiator
-
20709200285 GrommetGrommet
-
30293900105 BushingBushing
-
35293720053 GrommetGrommet
-
40207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
50234062410 Flat Washer 6 mmFlat Washer 6 mm
-
70709200534 FanFan
-
80207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
90234062410 Flat Washer 6 mmFlat Washer 6 mm
-
100709200207 Pressure CapPressure Cap
-
130709200958 Radiator Hose InRadiator Hose In
-
135a515176260 Tubing 35 mmTubing 35 mm
-
137a515176260 Tubing 35 mmTubing 35 mm
-
140509000995 T FittingT Fitting
-
145275500590 RetainerRetainer
-
150709200815 Pump HosePump Hose
-
160709200845 Radiator Hose OutRadiator Hose Out
-
162a515176260 Tubing 35 mmTubing 35 mm
-
165a515176260 Tubing 35 mmTubing 35 mm
-
170509000510 T-FittingT-Fitting
-
180709200812 HoseHose
-
185709200804 HoseHose
-
190a515176260 Tubing 35 mmTubing 35 mm
-
235709200814 HoseHose
-
238293650165 Oetiker Gear ClampOetiker Gear Clamp
-
239509000442 Oeticker Gear Clamp, 25.6-706ROeticker Gear Clamp, 25.6-706R
-
240709200805 HoseHose
-
245709200657 Heater TubingHeater Tubing
-
255a515176260 Tubing 35 mmTubing 35 mm
-
260509000162 Gear ClampGear Clamp
-
290293650166 Norma Spring ClampNorma Spring Clamp
-
300293650109 Norma Spring ClampNorma Spring Clamp
-
310293650108 Norma Spring ClampNorma Spring Clamp
-
330709200412 Coolant TankCoolant Tank
-
332415129508 Bleeder HoseBleeder Hose
-
334293650042 Oetiker ClampOetiker Clamp
-
335709200606 Bleeding HoseBleeding Hose
-
337a415129508 Bleeder HoseBleeder Hose
-
338293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
339293710059 Y-FittingY-Fitting
-
340a415080000 Tubing 16 mm (1 meter pac)Tubing 16 mm (1 meter pac)
-
350a293830193 Polyurethane HosePolyurethane Hose
-
360414554800 Spring ClampSpring Clamp
-
370705013987 Front Radiator DeflectorFront Radiator Deflector
-
372705014486 Front Radiator DeflectorFront Radiator Deflector
-
375293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
380207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
385234062410 Flat Washer 6 mmFlat Washer 6 mm
-
410275500526 RetainerRetainer
-
1050293650218 Hose RetainerHose Retainer
-
1060250000720 Torx Screw K50 X 16Torx Screw K50 X 16
