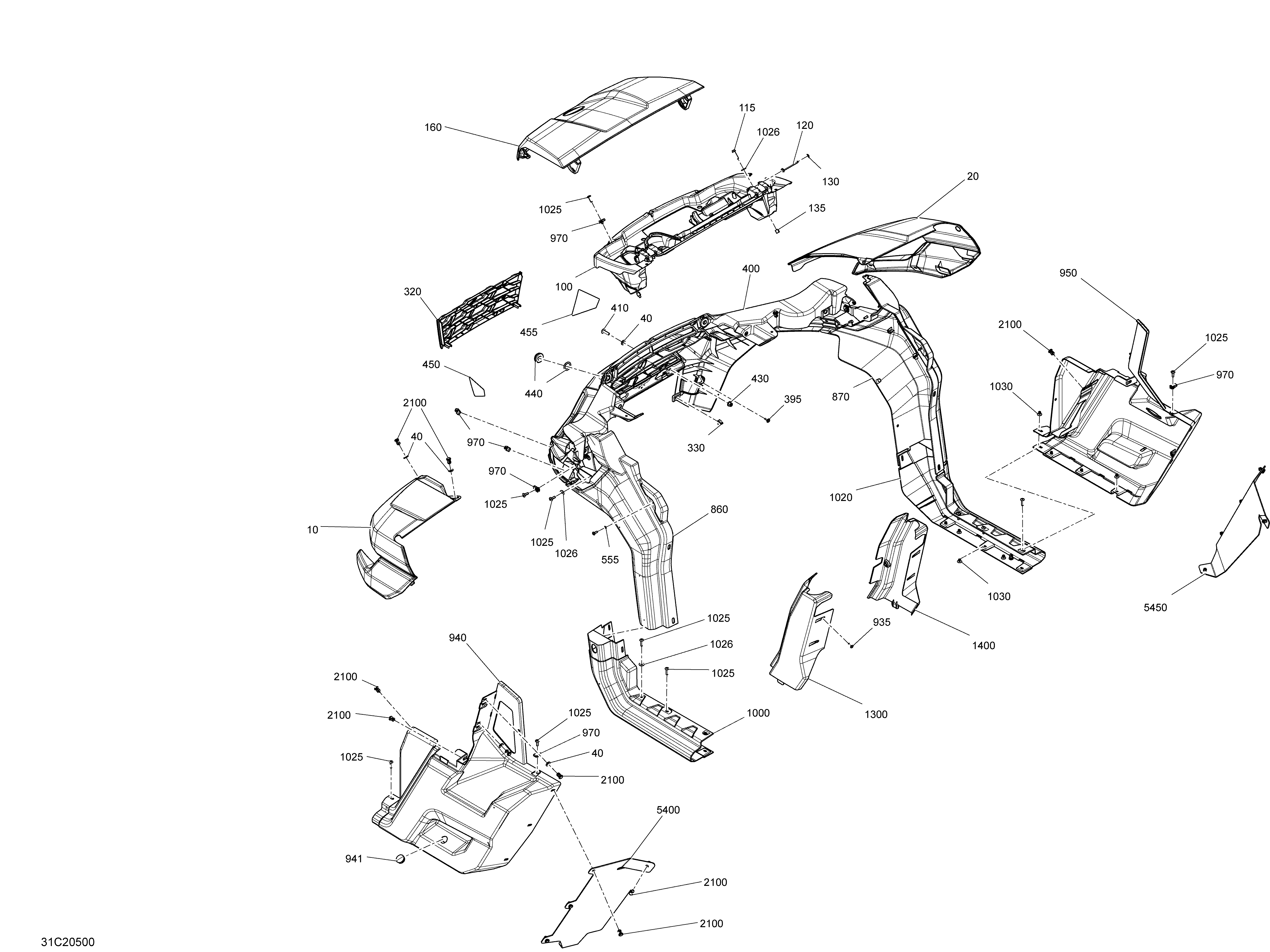

09- Body - Squadron Green для BRP 001 - Defender HD5 - International - 2020
-
№АртикулНазвание
-
10705012590 Squadron Green, Front LH FenderSquadron Green, Front LH Fender
-
20705012591 Squadron Green, RH Front FenderSquadron Green, RH Front Fender
-
40503192494 WasherWasher
-
100705013766 Multi Purpose SupportMulti Purpose Support
-
115210263050 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
120207667554 Screw Hex Flange M6 X 75Screw Hex Flange M6 X 75
-
130732610072 Push NutPush Nut
-
135293900125 BushingBushing
-
160705014054 Squadron Green, Front HoodSquadron Green, Front Hood
-
320705013590 GrillGrill
-
330517306478 ClipClip
-
395250000725 Screw M4 X 16Screw M4 X 16
-
400705013591 Deep Black, Front FasciaDeep Black, Front Fascia
-
410250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
430233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
440705010718 GrommetGrommet
-
450704905072 LH Front ReflectorLH Front Reflector
-
455704905073 RH Front ReflectorRH Front Reflector
-
555234051670 Flat Washer M5Flat Washer M5
-
860705008152 LH Front Lateral PanelLH Front Lateral Panel
-
870705008153 RH Front Lateral PanelRH Front Lateral Panel
-
935250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
940705013658 Deep Black, LH Rear Body PanelDeep Black, LH Rear Body Panel
-
941414916600 Black Nylon CapBlack Nylon Cap
-
950705013659 Deep Black, RH Rear Body PanelDeep Black, RH Rear Body Panel
-
970250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1000705008699 LH Central Lateral PanelLH Central Lateral Panel
-
1020705008700 RH Central Lateral PanelRH Central Lateral Panel
-
1025250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
1026234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1030293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
1300715003564 LH Rear Cage Cover KitLH Rear Cage Cover Kit
-
1400715003565 RH Rear Cage Cover KitRH Rear Cage Cover Kit
-
2100293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
5400705013057 LH Rear DeflectorLH Rear Deflector
-
5450705013058 RH Rear DeflectorRH Rear Deflector
