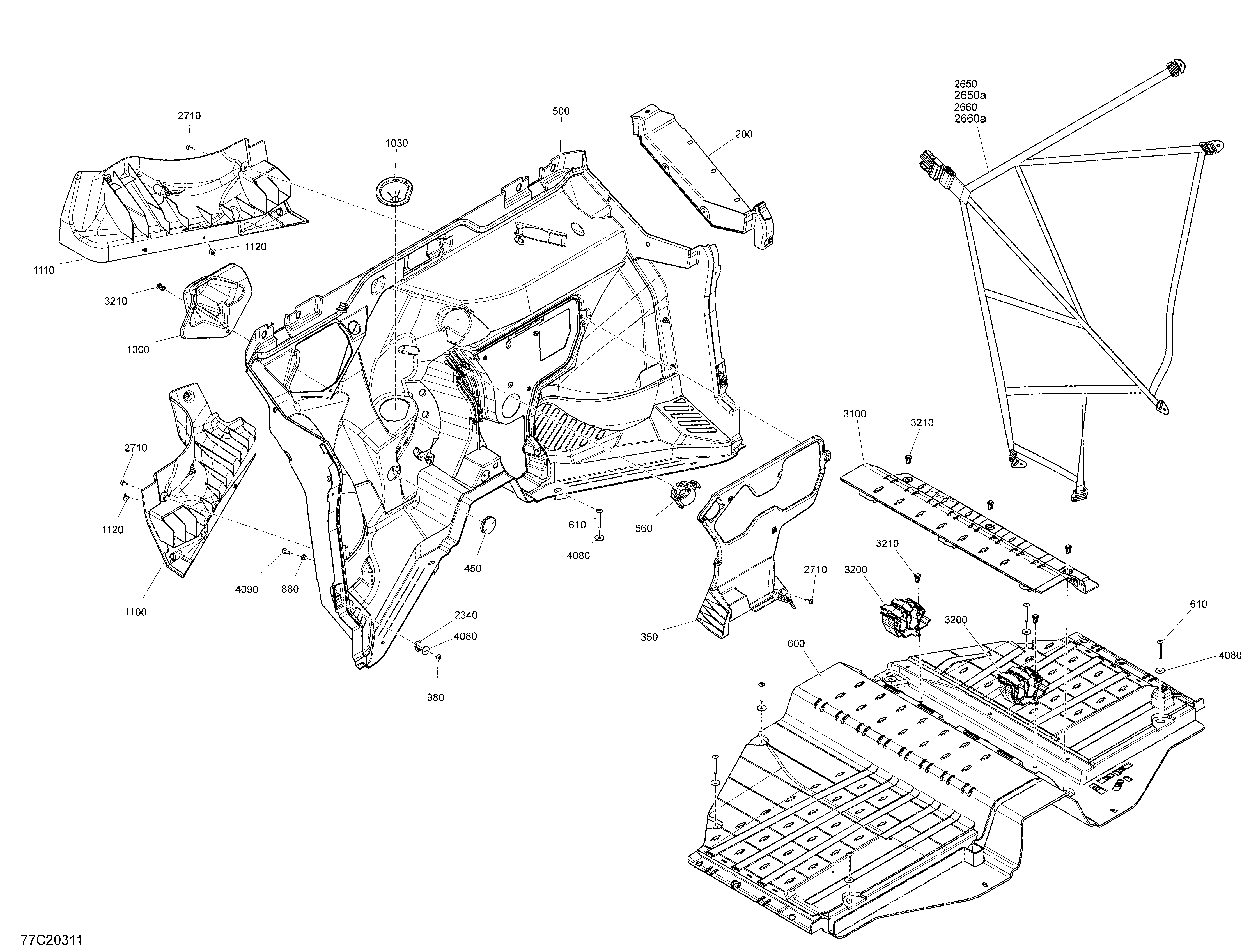

09- Cab Interior - Fire Wall Section для BRP 003 - Defender HD10 - XT - International - 2020
-
№АртикулНазвание
-
200707900739 RH Upper DeflectorRH Upper Deflector
-
350707900740 Front Panel TrimFront Panel Trim
-
450293250242 Rubber CoverRubber Cover
-
500707900712 Front Cab Panel Ass'yFront Cab Panel Ass'y
-
560707900719 Split GrommetSplit Grommet
-
600707900431 FloorFloor
-
610250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
880233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
980250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
1030707900753 Steering Column TrimSteering Column Trim
-
1100707900750 LH Front DeflectorLH Front Deflector
-
1110707900751 RH Front DeflectorRH Front Deflector
-
1120293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1300707900389 Exterior CoverExterior Cover
-
2340250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2650707900672 LH Front Protection Net. Includes 2650 to 2650aLH Front Protection Net. Includes 2650 to 2650a
-
2650a707900049 Upper LinkUpper Link
-
2660707900673 RH Front Protection Net. Includes 2660 to 2660aRH Front Protection Net. Includes 2660 to 2660a
-
2660a707900049 Upper LinkUpper Link
-
2710250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
3100707900806 Floor PanelFloor Panel
-
3200707900325 Hose SupportHose Support
-
3210293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4080250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
4090250000722 Torx Screw M6 X 20Torx Screw M6 X 20
