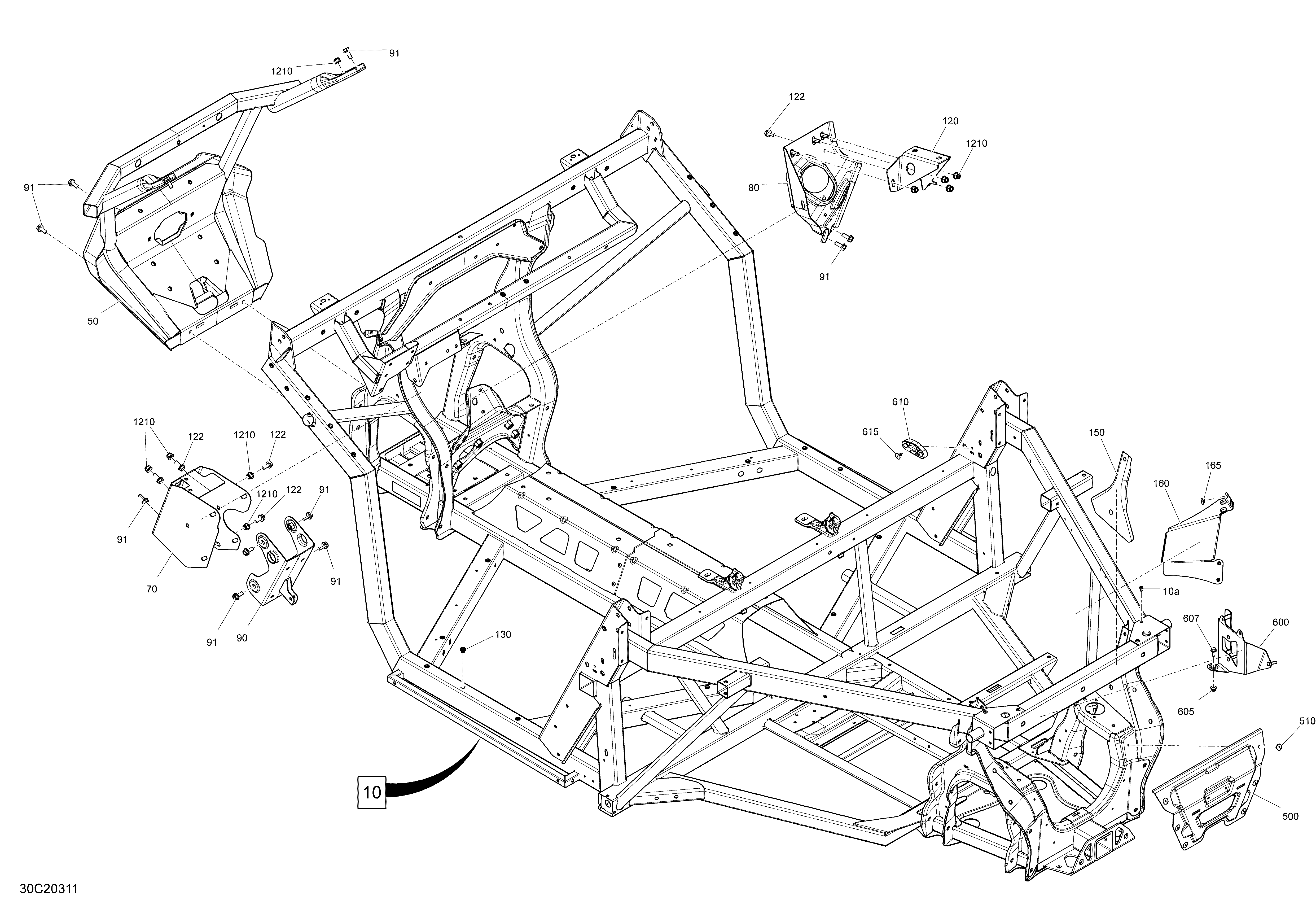

09- Frame - XT для BRP 003 - Defender HD10 - XT - International - 2020
-
№АртикулНазвание
-
10715006536 Black, Frame Ass'yBlack, Frame Ass'y
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
50705207588 Deep Black, Front BumperDeep Black, Front Bumper
-
70705208747 Module SupportModule Support
-
80705208741 Power Steering SupportPower Steering Support
-
90715005429 Support Steering ColumnSupport Steering Column
-
91207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
120705208742 SupportSupport
-
122207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
130250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
150705014849 Heat ShieldHeat Shield
-
160707002709 Heat ShieldHeat Shield
-
500705207753 Rear Chassis ReinforcementRear Chassis Reinforcement
-
510293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
600710006644 Voltage Regulator SupportVoltage Regulator Support
-
605233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
607207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
610705208203 SpacerSpacer
-
615293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1210233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
