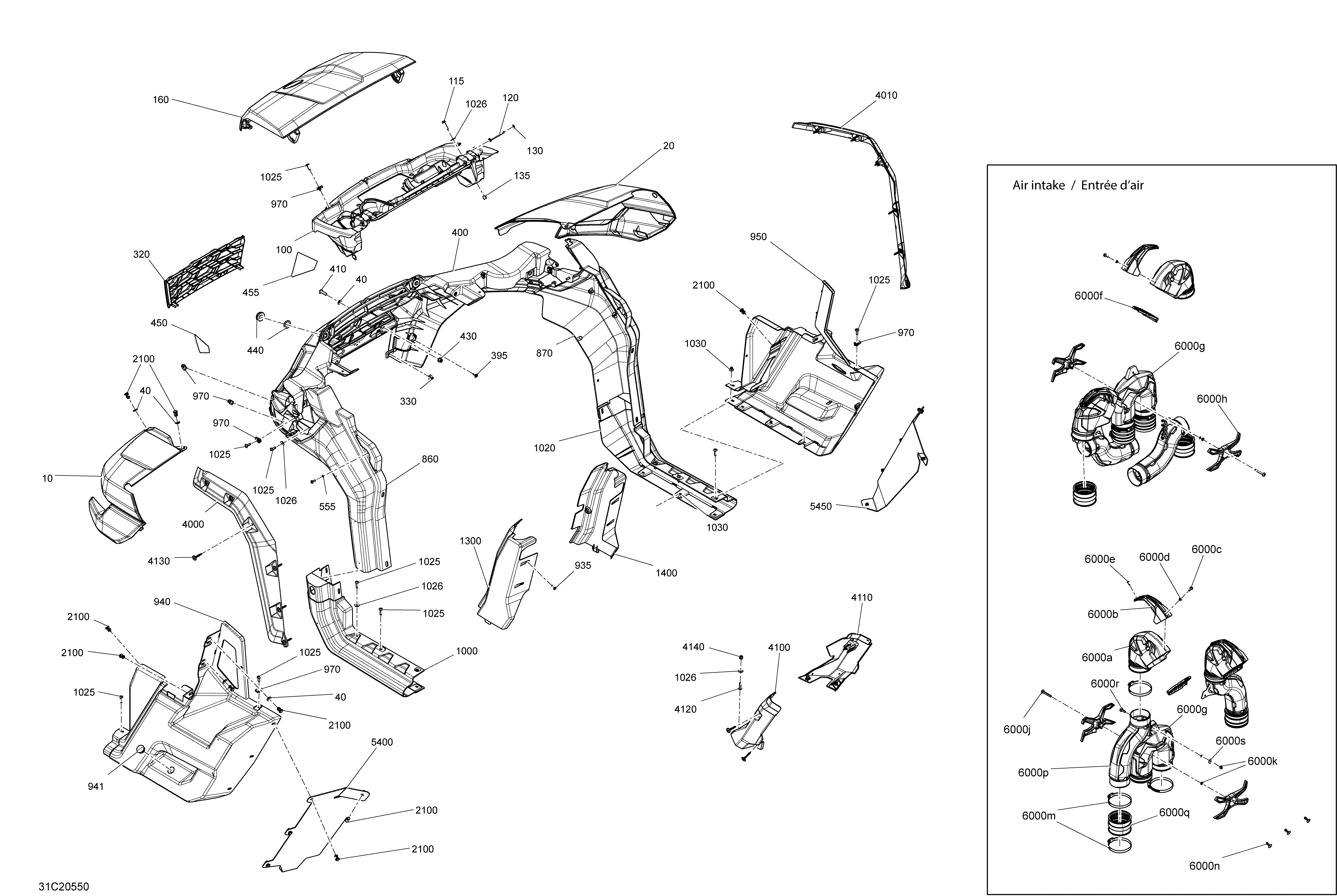

09- Body - Camo - XMR для BRP 004 - Defender HD10 - XMR - International - 2020
-
№АртикулНазвание
-
10705010179 Camo, LH Front FenderCamo, LH Front Fender
-
20705010511 Camo, RH Front FenderCamo, RH Front Fender
-
40503192494 WasherWasher
-
100705013766 Multi Purpose SupportMulti Purpose Support
-
115210263050 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
120207667554 Screw Hex Flange M6 X 75Screw Hex Flange M6 X 75
-
130732610072 Push NutPush Nut
-
135293900125 BushingBushing
-
160705013726 Break Up Country, Front HoodBreak Up Country, Front Hood
-
320705013590 GrillGrill
-
330517306478 ClipClip
-
395250000725 Screw M4 X 16Screw M4 X 16
-
400705013591 Deep Black, Front FasciaDeep Black, Front Fascia
-
410250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
430233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
440705010718 GrommetGrommet
-
450704905072 LH Front ReflectorLH Front Reflector
-
455704905073 RH Front ReflectorRH Front Reflector
-
555234051670 Flat Washer M5Flat Washer M5
-
860705008152 LH Front Lateral PanelLH Front Lateral Panel
-
870705008153 RH Front Lateral PanelRH Front Lateral Panel
-
935250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
940705013658 Deep Black, LH Rear Body PanelDeep Black, LH Rear Body Panel
-
941414916600 Black Nylon CapBlack Nylon Cap
-
950705013659 Deep Black, RH Rear Body PanelDeep Black, RH Rear Body Panel
-
970250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1000705008699 LH Central Lateral PanelLH Central Lateral Panel
-
1020705008700 RH Central Lateral PanelRH Central Lateral Panel
-
1025250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
1026234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1030293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
1300715003564 LH Rear Cage Cover KitLH Rear Cage Cover Kit
-
1400715003565 RH Rear Cage Cover KitRH Rear Cage Cover Kit
-
2100293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4000705011518 LH Front Fender FlareLH Front Fender Flare
-
4010705011519 Front RH Fender FlareFront RH Fender Flare
-
4020250000840 Torx-Screw Truss Head PT.K50 X 40Torx-Screw Truss Head PT.K50 X 40
-
4100705011522 LH Central Fender FlareLH Central Fender Flare
-
4110705011523 RH Center Fender FlareRH Center Fender Flare
-
4120250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
4125234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4130250000840 Torx-Screw Truss Head PT.K50 X 40Torx-Screw Truss Head PT.K50 X 40
-
4140233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
5400705013057 LH Rear DeflectorLH Rear Deflector
-
5450705013058 RH Rear DeflectorRH Rear Deflector
-
6000a706600236 Air InletAir Inlet
-
6000b707001523 Black CapBlack Cap
-
6000c250000792 Torx Screw M5 X 20Torx Screw M5 X 20
-
6000d233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
6000e250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
6000f706600221 GrateGrate
-
6000g706600205 CVT OutletCVT Outlet
-
6000h705012555 TrimTrim
-
6000j250000647 Torx Screw M6 X 45Torx Screw M6 X 45
-
6000k232561494 Elastic Stop Nut M6Elastic Stop Nut M6
-
6000m293650272 ClampClamp
-
6000n293150101 Pop Rivet 3/16”Pop Rivet 3/16”
-
6000p706600277 Intake TubeIntake Tube
-
6000q706600278 Flexible JointFlexible Joint
-
6000r250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
6000s250200164 Flat washer M6Flat washer M6
