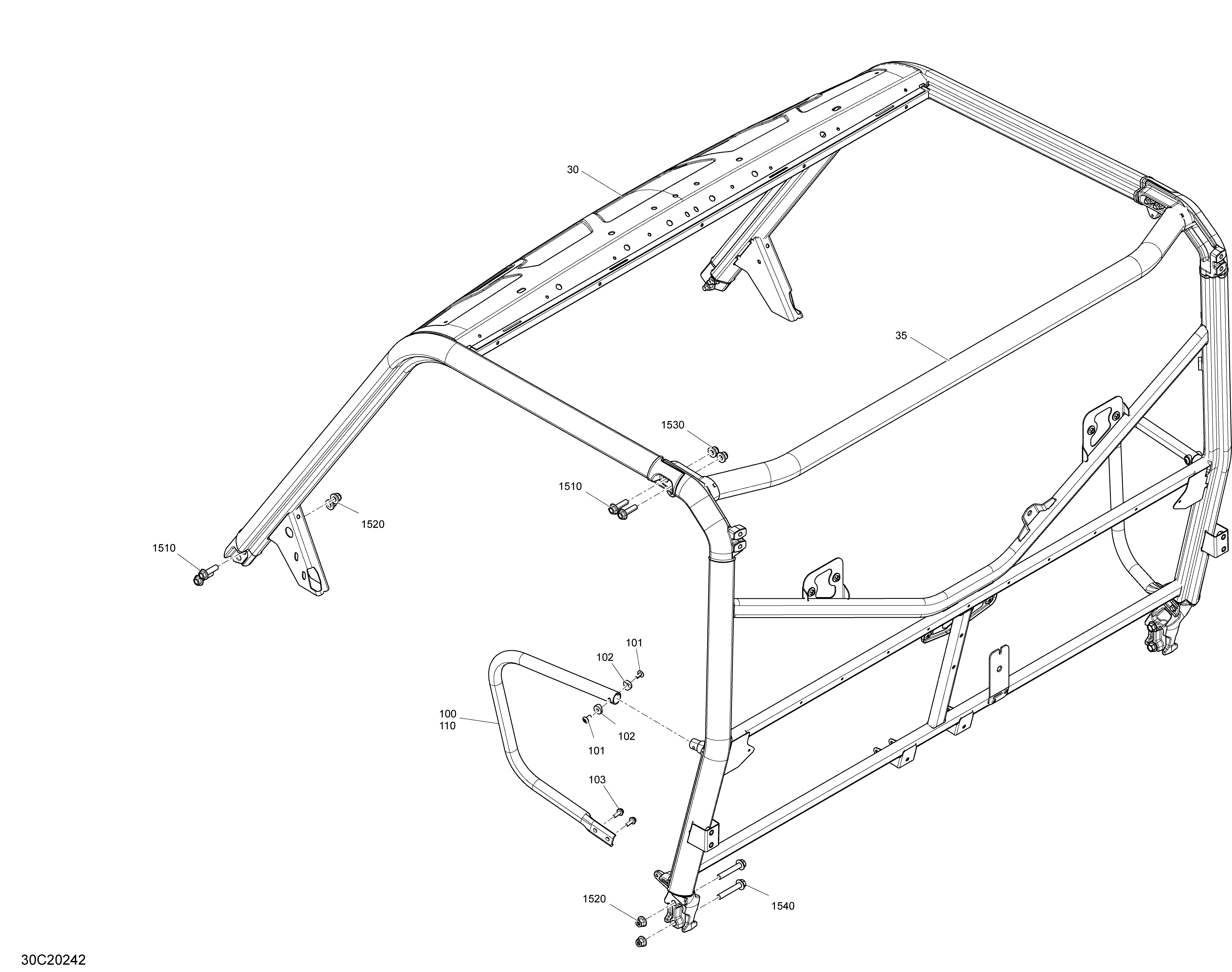

09- Safety Cage - XMR для BRP 004 - Defender HD10 - XMR - International - 2020
-
№АртикулНазвание
-
30715006528 Front Cage Profile Ass'y. BlackFront Cage Profile Ass'y. Black
-
30715006531 Front Cage Profile Ass'y. Manta GreenFront Cage Profile Ass'y. Manta Green
-
35715006532 Rear Cage Profile Ass'y. BlackRear Cage Profile Ass'y. Black
-
35715006533 Rear Cage Profile Ass'y. Manta GreenRear Cage Profile Ass'y. Manta Green
-
100705204594 LH Protector Tube. BlackLH Protector Tube. Black
-
100705208209 Manta Green, LH Side Protector. Manta GreenManta Green, LH Side Protector. Manta Green
-
101250000789 Torx Truss M6X14Torx Truss M6X14
-
102705202223 Offset WasherOffset Washer
-
103207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
110705204592 RH Protector Tube. BlackRH Protector Tube. Black
-
110705208211 Manta Green, RH Side Protector. Manta GreenManta Green, RH Side Protector. Manta Green
-
1510250000855 Hex. Flanged Screw M10 X 35Hex. Flanged Screw M10 X 35
-
1520233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
1530233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
1540207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
