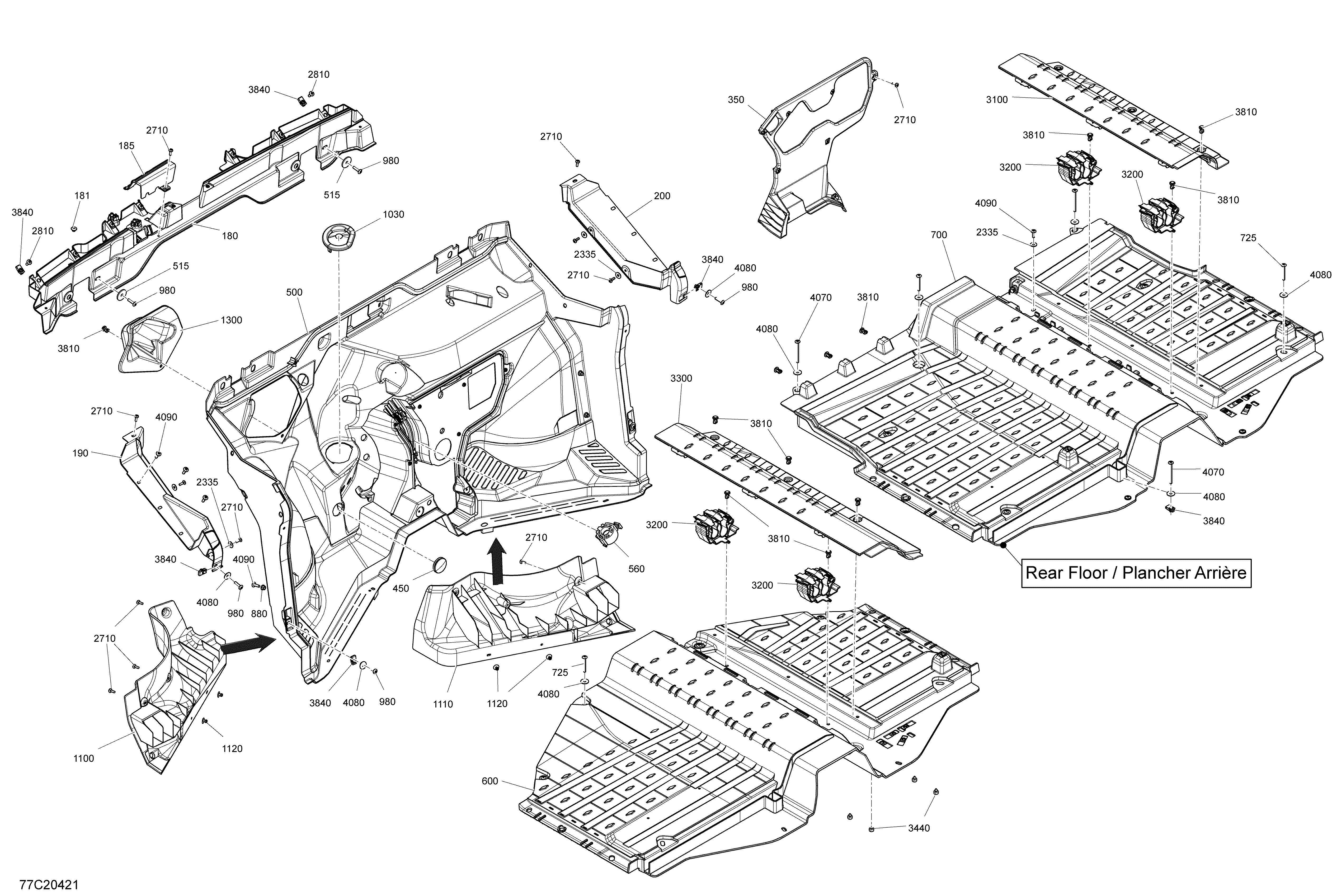

09- Cab Interior - Fire Wall Section для BRP 005 - Defender MAX HD8 - International - 2020
-
№АртикулНазвание
-
180707900755 Front Upper DeflectorFront Upper Deflector
-
181293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
185707900747 Front Upper DeflectorFront Upper Deflector
-
190707900738 LH Upper DeflectorLH Upper Deflector
-
200707900739 RH Upper DeflectorRH Upper Deflector
-
350707900740 Front Panel TrimFront Panel Trim
-
450293250242 Rubber CoverRubber Cover
-
500707900712 Front Cab Panel Ass'yFront Cab Panel Ass'y
-
515250200158 Flat Washer M8Flat Washer M8
-
560707900719 Split GrommetSplit Grommet
-
600707900431 FloorFloor
-
700707900464 Rear Floor Ass'yRear Floor Ass'y
-
725250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
880233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
980250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
1030707900821 Steering Column TrimSteering Column Trim
-
1100707900750 LH Front DeflectorLH Front Deflector
-
1110707900751 RH Front DeflectorRH Front Deflector
-
1120293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1300707900389 Exterior CoverExterior Cover
-
2335234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2710250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
2810250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
3100707900806 Floor PanelFloor Panel
-
3200707900325 Hose SupportHose Support
-
3300707900807 Floor PlancherFloor Plancher
-
3440293830005 Rubber BumperRubber Bumper
-
3810293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3840250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4070250000954 Torx Screw M6 X 70Torx Screw M6 X 70
-
4080250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
4090250000722 Torx Screw M6 X 20Torx Screw M6 X 20
