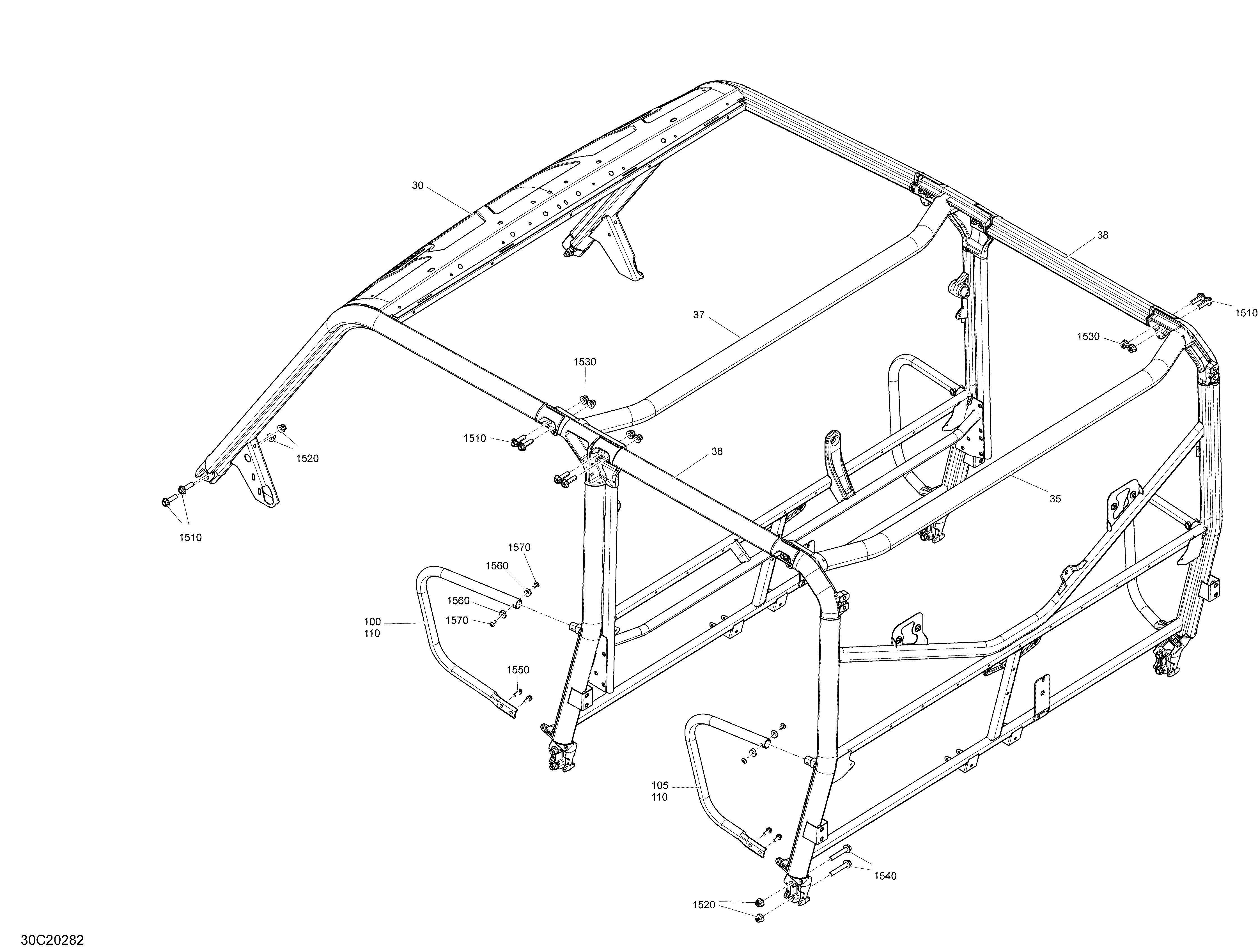

09- Safety Cage - BASE - DPS для BRP 005 - Defender MAX HD8 - International - 2020
-
№АртикулНазвание
-
30715006530 Front Cage Profile Ass'yFront Cage Profile Ass'y
-
35715006532 Rear Cage Profile Ass'yRear Cage Profile Ass'y
-
37715006667 Deep Black, Central Cage Ass'yDeep Black, Central Cage Ass'y
-
38705205401 Black, Cage ExtensionBlack, Cage Extension
-
100705204594 LH Protector TubeLH Protector Tube
-
105705204590 LH Side ProtectLH Side Protect
-
110705204592 RH Protector TubeRH Protector Tube
-
1510250000855 Hex. Flanged Screw M10 X 35Hex. Flanged Screw M10 X 35
-
1520233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
1530233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
1540207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
-
1550207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
1560705202223 Offset WasherOffset Washer
-
1570250000789 Torx Truss M6X14Torx Truss M6X14
