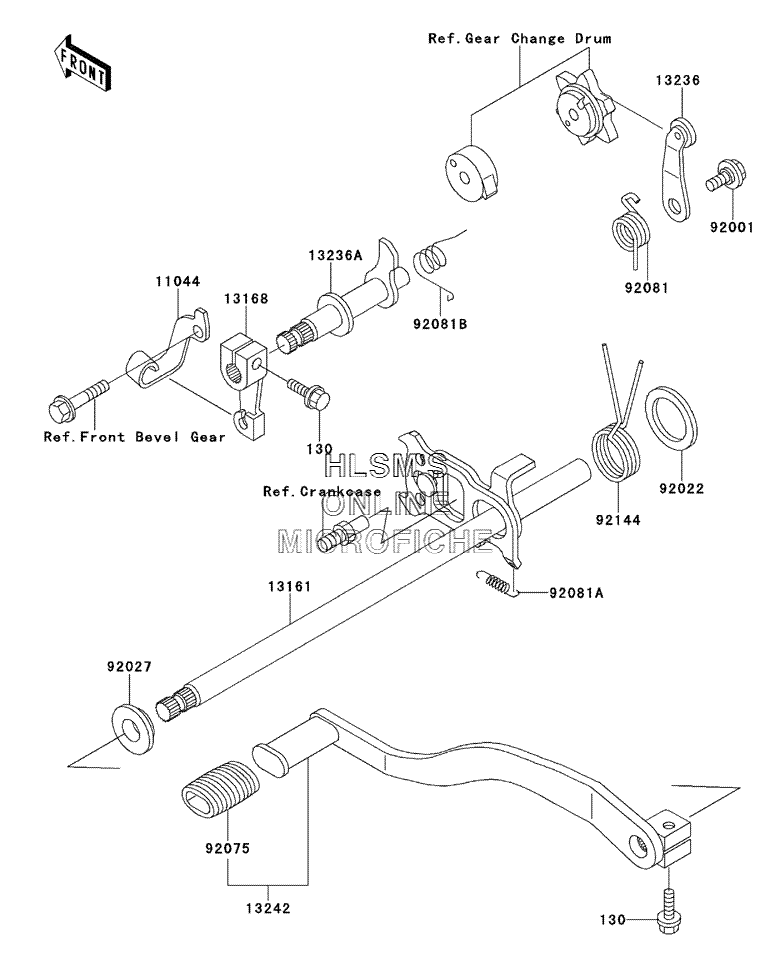

GEAR CHANGE MECHANISM для Kawasaki Bayou 300 (KLF300-B13) - 2000 года выпуска
-
№АртикулНазвание
-
130130S0620 BOLT-FLANGED, 6X20 (BLACK)BOLT-FLANGED, 6X20 (BLACK)
-
1104411044-1303 BRACKET, REVERSE CABLEBRACKET, REVERSE CABLE
-
1316113161-1196 LEVER-COMP-CHANGE SHAFTLEVER-COMP-CHANGE SHAFT
-
1316813168-1267 LEVER, REVERSELEVER, REVERSE
-
1323613236-1178 LEVER-COMP, CHANGE DRUMLEVER-COMP, CHANGE DRUM
-
13236A13236-1239 LEVER-COMP, REVERSELEVER-COMP, REVERSE
-
1324213242-1236 LEVER-ASSY-CHANGE, PEDALLEVER-ASSY-CHANGE, PEDAL
-
9200192001-1715 BOLT, GEAR CHANGE LEVERBOLT, GEAR CHANGE LEVER
-
9202292022-057 WASHER, 25.5X36X1WASHER, 25.5X36X1
-
9202792027-1891 COLLAR, L=5.2COLLAR, L=5.2
-
9207592075-1585 DAMPER, CHANGE PEDALDAMPER, CHANGE PEDAL
-
9208192081-1496 SPRINGSPRING
-
92081A92081-1753 SPRING, CHANGE LEVERSPRING, CHANGE LEVER
-
92081B92081-1850 SPRING, REVERSE LEVERSPRING, REVERSE LEVER
-
9214492144-1798 SPRINGSPRING
