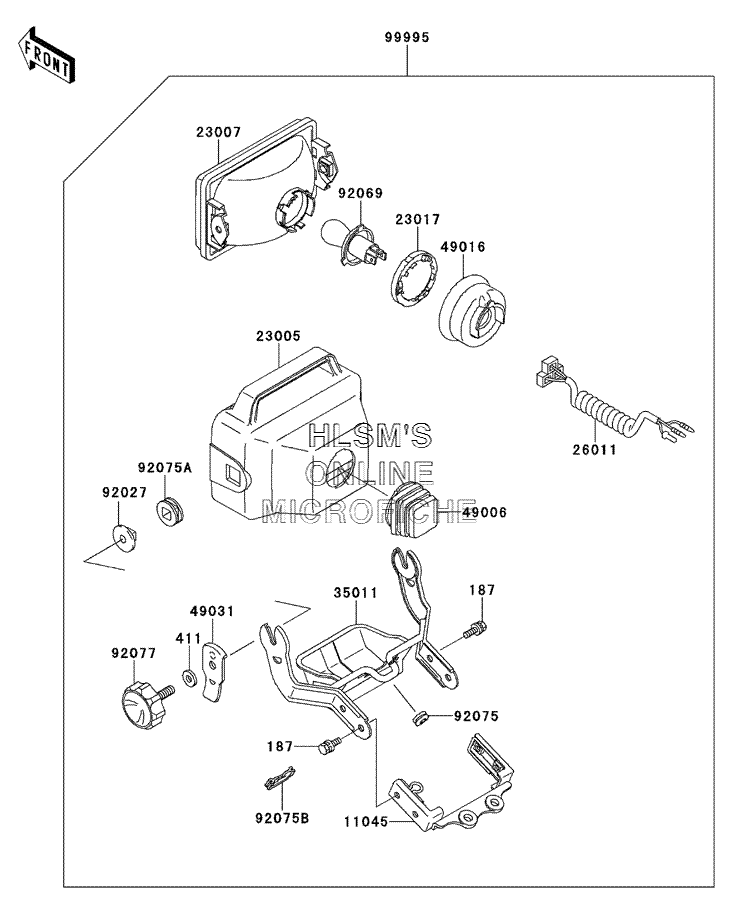

OPTIONAL PARTS (HEADLIGHT) для Kawasaki Bayou 300 (KLF300-B13) - 2000 года выпуска
-
№АртикулНазвание
-
187187C0614 BOLT-UPSET-WSPBOLT-UPSET-WSP
-
411411F0800 WASHER-PLAIN, 8MM (BLACK)WASHER-PLAIN, 8MM (BLACK)
-
1104511045-1924 BRACKET, HEAD LAMPBRACKET, HEAD LAMP
-
2300523005-1064-6Z BODY-COMP-HEAD LAMP (BLACK)BODY-COMP-HEAD LAMP (BLACK)
-
2300723007-1138 LENS-COMP, HEAD LAMPLENS-COMP, HEAD LAMP
-
2301723017-1051 SOCKET, BULBSOCKET, BULB
-
2601126011-1405 WIRE-LEAD, HEAD LAMPWIRE-LEAD, HEAD LAMP
-
3501135011-1413 STAY, HEAD LAMPSTAY, HEAD LAMP
-
4900649006-1172 BOOT, HEAD LAMP BODYBOOT, HEAD LAMP BODY
-
4901649016-1111 COVER-SEAL, BULB SOCKETCOVER-SEAL, BULB SOCKET
-
4903149031-1052 LATCH, HEAD LAMPLATCH, HEAD LAMP
-
9202792027-1938 COLLAR, L=11.9COLLAR, L=11.9
-
9206992069-1069 BULB, 12V 65/60WBULB, 12V 65/60W
-
9207592075-1482 DAMPER, HEAD LAMP HOLDERDAMPER, HEAD LAMP HOLDER
-
92075A92075-1768 DAMPER, HEAD LAMP FITTINGDAMPER, HEAD LAMP FITTING
-
92075B92075-1881 DAMPERDAMPER
-
9207792077-1060 KNOB, HEAD LAMPKNOB, HEAD LAMP
-
9999599995-1018 KIT., HEAD LAMPKIT., HEAD LAMP
