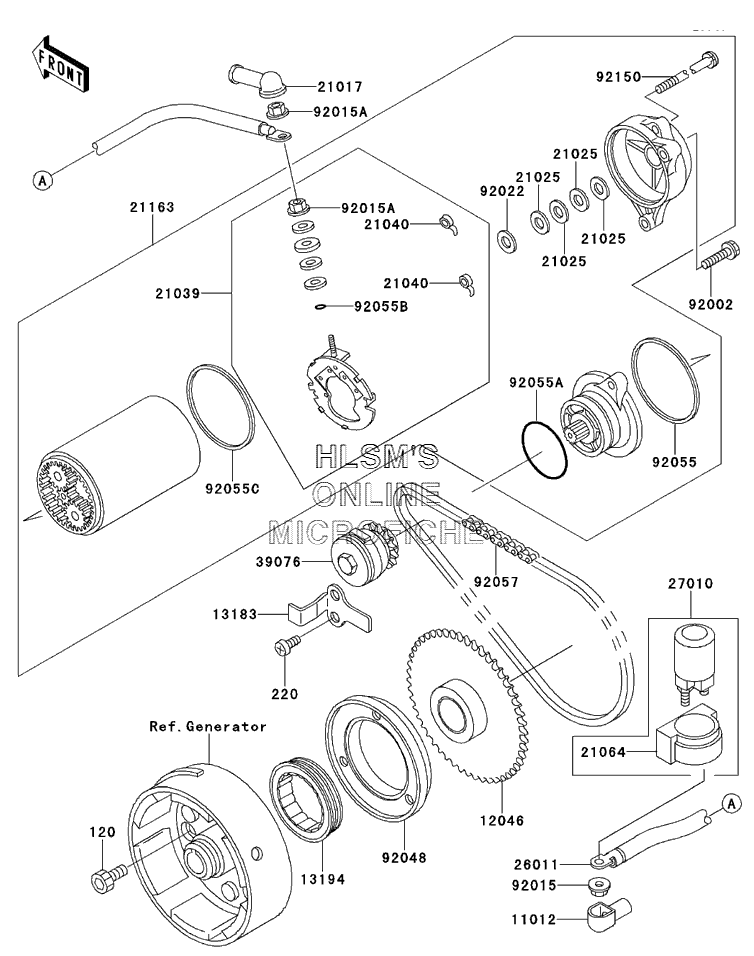

STARTER MOTOR для Kawasaki Lakota 300 (KEF300-A6) - 2000 года выпуска
-
№АртикулНазвание
-
120120P0816 BOLT-SOCKETBOLT-SOCKET
-
220220B0612 SCREW-PAN-CROS, 6X12SCREW-PAN-CROS, 6X12
-
1101211012-1354 CAP, TERMINALCAP, TERMINAL
-
1204612046-1077 SPROCKET, STARTERSPROCKET, STARTER
-
1318313183-1002 PLATE, STARTER CHAINPLATE, STARTER CHAIN
-
1319413194-1091 CLUTCH-ONEWAYCLUTCH-ONEWAY
-
2101721017-017 GROMMET, STARTER TERMINALGROMMET, STARTER TERMINAL
-
2102521025-011 WASHER, 9.1X18X0.2WASHER, 9.1X18X0.2
-
2103921039-1063 BRUSH, CARBONBRUSH, CARBON
-
2104021040-1057 SPRING-BRUSHSPRING-BRUSH
-
2106421064-002 DAMPER, MAGNETIC SWITCHDAMPER, MAGNETIC SWITCH
-
2116321163-1141 STARTER-ELECTRICSTARTER-ELECTRIC
-
2601126011-1634 WIRE-LEAD, STARTER MOTORWIRE-LEAD, STARTER MOTOR
-
2701027010-1098 SWITCH, MAGNETICSWITCH, MAGNETIC
-
3907639076-1054 LIMITER, STARTER IDLE GEARLIMITER, STARTER IDLE GEAR
-
9200292002-1664 BOLTBOLT
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1476 NUT, STARTER MOTORNUT, STARTER MOTOR
-
9202292022-1132 WASHER, 9.1X18X0.8WASHER, 9.1X18X0.8
-
9204892048-1095 RACE, ONEWAY CLUTCHRACE, ONEWAY CLUTCH
-
9205592055-1086 RING-O, 64MMRING-O, 64MM
-
92055A92055-1313 RING-O, 42.8MMRING-O, 42.8MM
-
92055B92055-1370 RING-O, 4.5X2.0RING-O, 4.5X2.0
-
92055C92055-1381 RING-O, STARTER MOTORRING-O, STARTER MOTOR
-
9205792057-1196 CHAIN, STARTER, KEC29H, 64LCHAIN, STARTER, KEC29H, 64L
-
9215092150-1138 BOLT, STARTER MOTORBOLT, STARTER MOTOR
