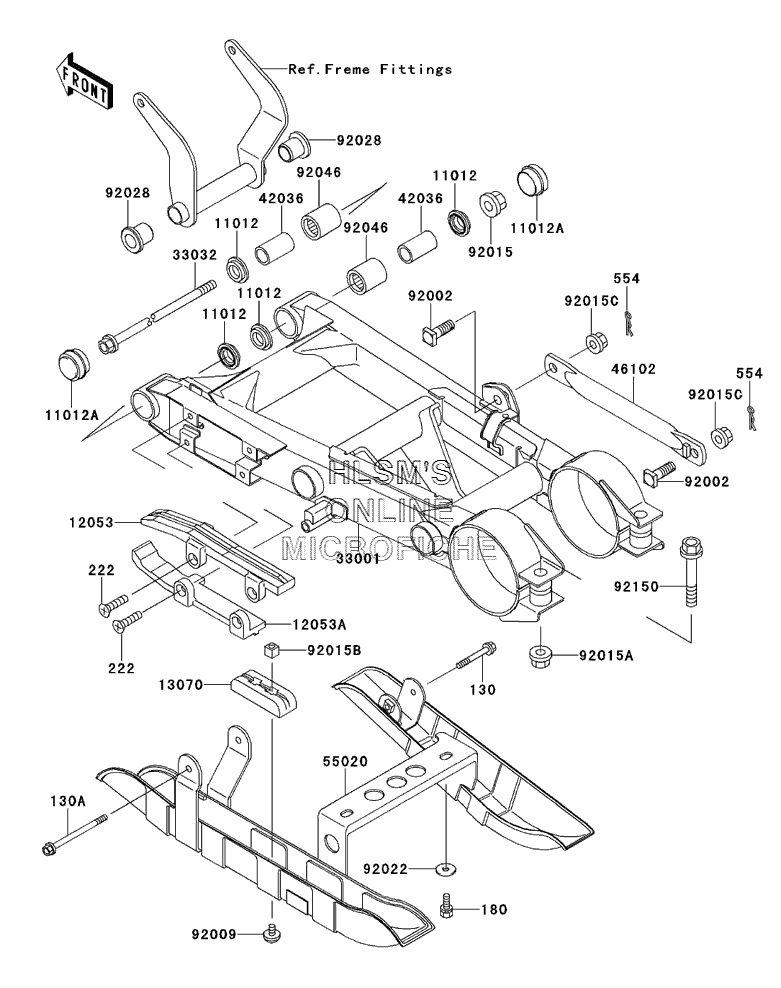

SUSPENSION - SWINGARM для Kawasaki Lakota 300 (KEF300-A6) - 2000 года выпуска
-
№АртикулНазвание
-
130130G0640 BOLT-FLANGED, 6X40BOLT-FLANGED, 6X40
-
130A130G0680 BOLT-FLANGEDBOLT-FLANGED
-
180180G0614 BOLT-UPSET-WS, 6X14BOLT-UPSET-WS, 6X14
-
222222B0612 SCREW-CSK-RD-CROS, 6X12SCREW-CSK-RD-CROS, 6X12
-
554554A1000 PIN-SNAP, 10MMPIN-SNAP, 10MM
-
1101211012-1259 CAP, SWING ARMCAP, SWING ARM
-
11012A11012-1520 CAP, SWING ARMCAP, SWING ARM
-
1205312053-1194 GUIDE-CHAIN, UPPGUIDE-CHAIN, UPP
-
12053A12053-1195 GUIDE-CHAIN, LWRGUIDE-CHAIN, LWR
-
1307013070-1156 GUIDE, CHAINGUIDE, CHAIN
-
3300133001-1462-5A ARM-COMP-SWING, SILVER NO.40ARM-COMP-SWING, SILVER NO.40
-
3303233032-1139 SHAFT-SWING ARMSHAFT-SWING ARM
-
4203642036-1064 SLEEVE, SWING ARMSLEEVE, SWING ARM
-
4610246102-1342-5A ROD, TORQUE, SILVER NO.40ROD, TORQUE, SILVER NO.40
-
5502055020-1583-5A GUARD, CHAIN AND DICS (SILVER)GUARD, CHAIN AND DICS (SILVER)
-
9200292002-1733 BOLT, 10X28BOLT, 10X28
-
9200992009-1286 SCREW, 6X10, WHITESCREW, 6X10, WHITE
-
9201592015-1407 NUT, 14MMNUT, 14MM
-
92015A92015-1426 NUT, 12MMNUT, 12MM
-
92015B92015-1452 NUT, 6MMNUT, 6MM
-
92015C92015-1597 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9202292022-1804 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
9202892028-1261 BUSHING, SWING ARMBUSHING, SWING ARM
-
9204692046-1128 BEARING-NEEDLE, TA2030ZBEARING-NEEDLE, TA2030Z
-
9215092150-1842 BOLT, FLANGED, 12X62BOLT, FLANGED, 12X62
