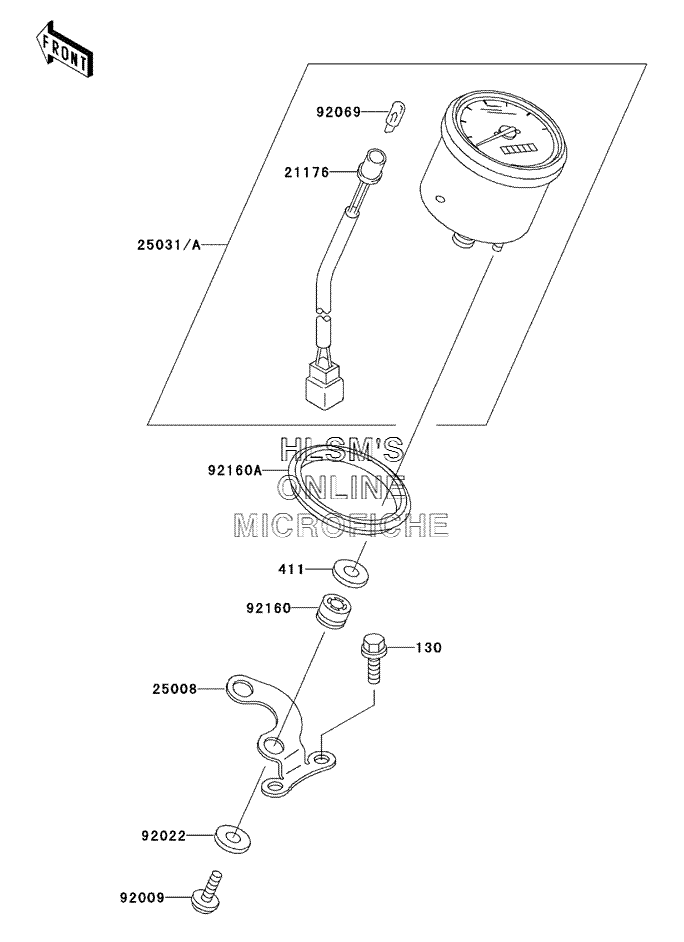

METER(S) для Kawasaki Prairie 300 4x4 (KVF300-A2) - 2000 года выпуска
-
№АртикулНазвание
-
130130J0814 BOLT-FLANGED, 8X14BOLT-FLANGED, 8X14
-
411411B0800 WASHER-PLAIN, 8MMWASHER-PLAIN, 8MM
-
2117621176-1059 CORD ASSY, SPEEDOMETERCORD ASSY, SPEEDOMETER
-
2500825008-1221 BRACKET-METERBRACKET-METER
-
2503125031-1080 METER-ASSY, MPH (US ONLY)METER-ASSY, MPH (US ONLY)
-
25031A25031-1083 METER-ASSY, KPH (CANADA ONLY)METER-ASSY, KPH (CANADA ONLY)
-
9200992009-3740 SCREW, 5X12SCREW, 5X12
-
9202292022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
9206992069-1059 BULB, 12V 1.7W, T10BULB, 12V 1.7W, T10
-
9216092160-1461 DAMPERDAMPER
-
92160A92160-1959 DAMPER, SPEEDOMETERDAMPER, SPEEDOMETER
