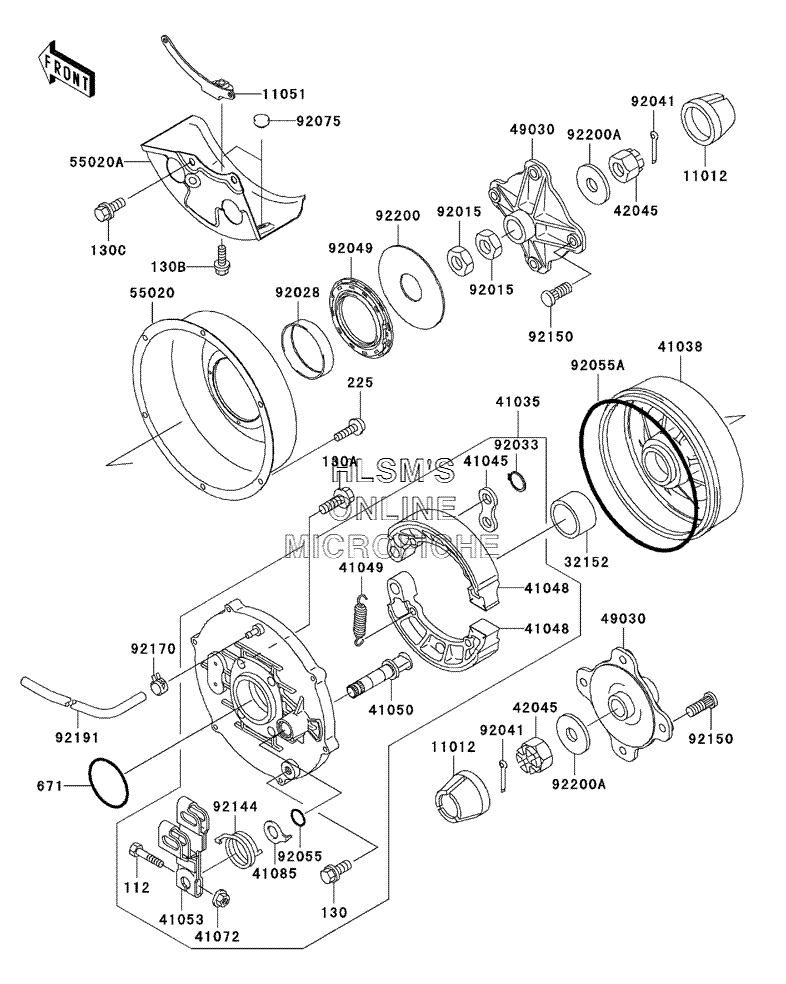

REAR HUB для Kawasaki Prairie 300 4x4 (KVF300-A2) - 2000 года выпуска
-
№АртикулНазвание
-
112112H0640 BOLT-UPSET, 6X40BOLT-UPSET, 6X40
-
130130B1012 BOLT-FLANGED, 10X12BOLT-FLANGED, 10X12
-
130A130G1030 BOLT-FLANGED, 10X30BOLT-FLANGED, 10X30
-
130B130J0812 BOLT-FLANGED, 8X12BOLT-FLANGED, 8X12
-
130C130J0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
225225C0616 SCREW-PAN-WSP-CROS, 6X16SCREW-PAN-WSP-CROS, 6X16
-
671671B2570 O RING, 70MMO RING, 70MM
-
1101211012-1969 CAP, WHEELCAP, WHEEL
-
1105111051-1205 BRACKET, GUARDBRACKET, GUARD
-
3215232152-1082 PIPE, 40X50.8X28PIPE, 40X50.8X28
-
4103541035-1500 PANEL-ASSY-BRAKE, REARPANEL-ASSY-BRAKE, REAR
-
4103841038-1308 DRUM, REAR BRAKEDRUM, REAR BRAKE
-
4104541045-006 WASHERWASHER
-
4104841048-1127 SHOE-BRAKESHOE-BRAKE
-
4104941049-012 SPRING, BRAKE SHOESPRING, BRAKE SHOE
-
4105041050-1089 CAM-BRAKECAM-BRAKE
-
4105341053-1084 LEVER-BRAKE CAMLEVER-BRAKE CAM
-
4107241072-007 NUT, 6MMNUT, 6MM
-
4108541085-1086 INDICATORINDICATOR
-
4204542045-018 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
-
4903049030-1113 HUB, REARHUB, REAR
-
5502055020-1646 GUARD, REAR BRAKEGUARD, REAR BRAKE
-
55020A55020-1685 GUARDGUARD
-
9201592015-1545 NUT, LOCK, 37MMNUT, LOCK, 37MM
-
9202892028-1865 BUSHINGBUSHING
-
9203392033-1250 RING-SNAP, 15MMRING-SNAP, 15MM
-
9204192041-1053 COTTER, 4.0X35COTTER, 4.0X35
-
9204992049-1485 SEAL-OIL, SD7 64X106X9ZSSEAL-OIL, SD7 64X106X9ZS
-
9205592055-1376 RING-O, ID=16.4RING-O, ID=16.4
-
92055A92055-1582 RING-ORING-O
-
9207592075-1983 DAMPERDAMPER
-
9214492144-1365 SPRINGSPRING
-
9215092150-1289 BOLTBOLT
-
9217092170-2042 CLAMPCLAMP
-
9219192191-1292 TUBE, 4.7X9.5X850TUBE, 4.7X9.5X850
-
9220092200-1403 WASHER, 37X111X2WASHER, 37X111X2
-
92200A92200-1474 WASHER, 18.5X52X4.5WASHER, 18.5X52X4.5
