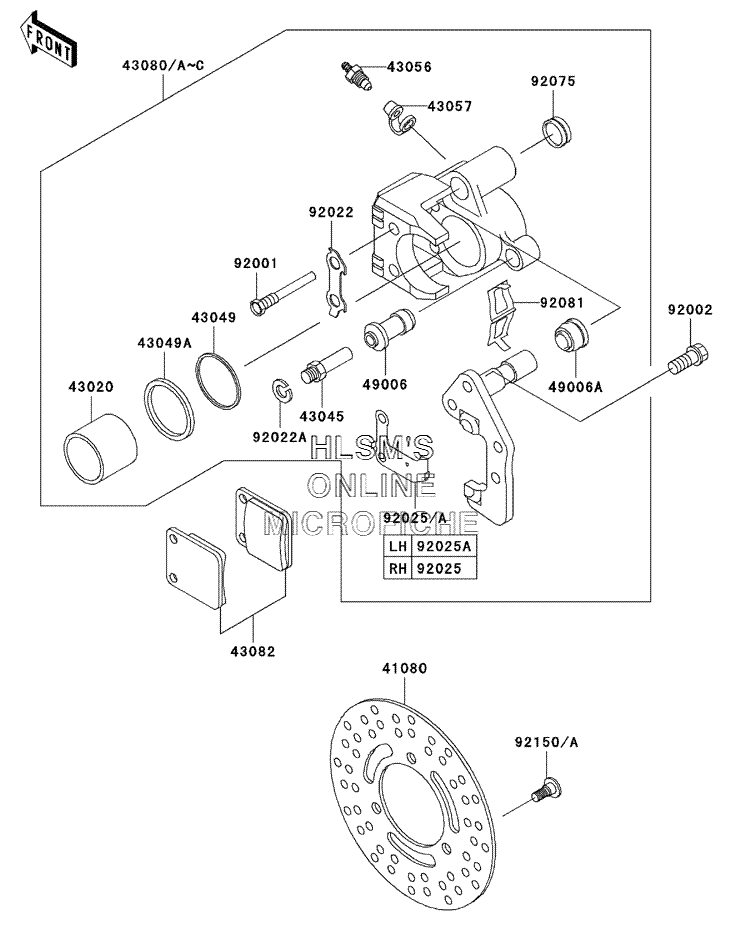

BRAKE - FRONT для Kawasaki Prairie 300 (KVF300-B2) - 2000 года выпуска
-
№АртикулНазвание
-
4108041080-1216 DISC, FRDISC, FR
-
4302043020-1114 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4304543045-1010 SHAFT-CALIPERSHAFT-CALIPER
-
4304943049-1081 PACKINGPACKING
-
43049A43049-1082 PACKINGPACKING
-
4305643056-1055 BREATHERBREATHER
-
4305743057-1001 CAP-BREATHERCAP-BREATHER
-
4308043080-5124 CALIPER-SUB-ASSY, FR (LEFT)CALIPER-SUB-ASSY, FR (LEFT)
-
43080A43080-5125 CALIPER-SUB-ASSY, FR (RIGHT)CALIPER-SUB-ASSY, FR (RIGHT)
-
4308243082-1201 PAD-ASSY-BRAKEPAD-ASSY-BRAKE
-
4900649006-1088 BOOT, CALIPERBOOT, CALIPER
-
49006A49006-1089 BOOT, CALIPERBOOT, CALIPER
-
9200192001-1723 BOLT, PAD HOLDERBOLT, PAD HOLDER
-
9200292002-1737 BOLT, FLANGED, 8X13BOLT, FLANGED, 8X13
-
9202292022-1372 WASHER, LOCKWASHER, LOCK
-
92022A92022-1373 WASHER, WAVEWASHER, WAVE
-
9202592025-1344 SHIM, PADSHIM, PAD
-
92025A92025-1817 SHIM, PADSHIM, PAD
-
9207592075-1414 DAMPERDAMPER
-
9208192081-1502 SPRING, PADSPRING, PAD
-
9215092150-1760 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
