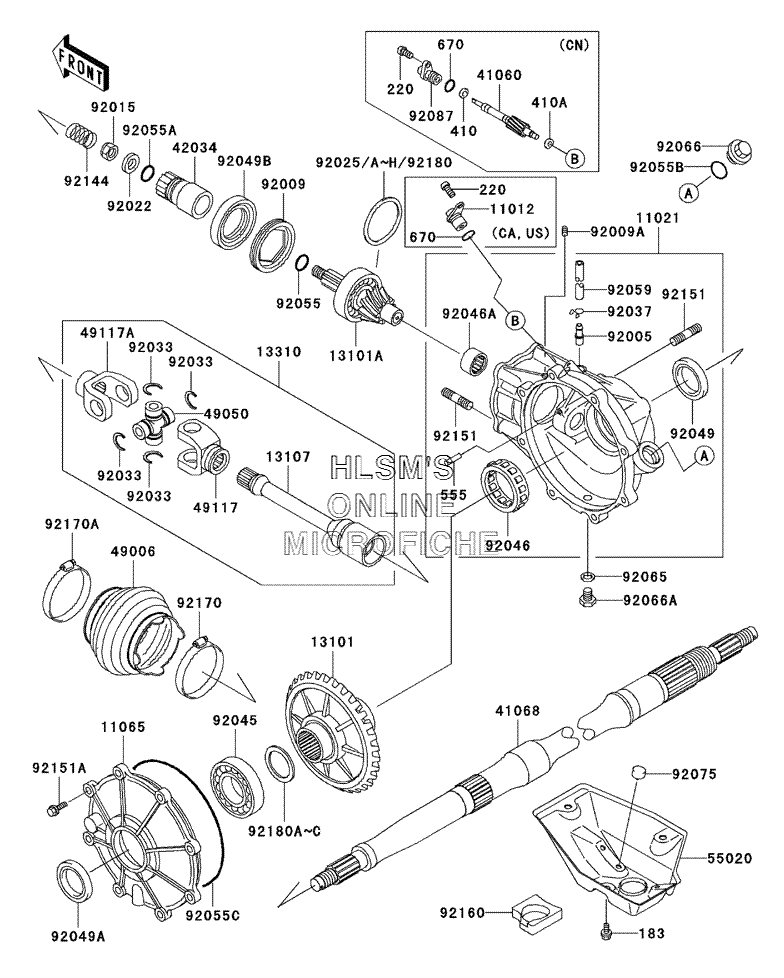

DRIVE SHAFT для Kawasaki Prairie 300 (KVF300-B2) - 2000 года выпуска
-
№АртикулНазвание
-
1101211012-1650 CAP, METER GEAR (US ONLY)CAP, METER GEAR (US ONLY)
-
1102111021-1128 CASE-ASSY, DRIVE SHAFTCASE-ASSY, DRIVE SHAFT
-
1106511065-1103 CAPCAP
-
1310113101-1277 GEAR-ASSY, 39TGEAR-ASSY, 39T
-
13101A13101-1283 GEAR-ASSY, 9TGEAR-ASSY, 9T
-
1310713107-1408 SHAFT, DRIVESHAFT, DRIVE
-
1331013310-1024 SHAFT-ASSY, DRIVESHAFT-ASSY, DRIVE
-
4106041060-1157 GEAR-METER SCREW (CANADA ONLY)GEAR-METER SCREW (CANADA ONLY)
-
4106841068-1388 AXLEAXLE
-
4203442034-1145 COUPLINGCOUPLING
-
4900649006-1307 BOOTBOOT
-
4905049050-1002 SPIDERSPIDER
-
4911749117-1085 YOKE, DRIVEYOKE, DRIVE
-
49117A49117-1086 YOKE, DRIVEYOKE, DRIVE
-
5502055020-1551 GUARDGUARD
-
9200592005-1127 FITTING, BREATHERFITTING, BREATHER
-
9200992009-1528 SCREWSCREW
-
92009A92009-1896 SCREW, 6X12SCREW, 6X12
-
9201592015-1182 NUT, 12MMNUT, 12MM
-
9202292022-1293 WASHER, 12.3X25X3.2WASHER, 12.3X25X3.2
-
9202592025-1669 SHIM, 52.5X61.5X0.15SHIM, 52.5X61.5X0.15
-
92025A92025-1670 SHIM, 52.5X61.5X0.18SHIM, 52.5X61.5X0.18
-
92025B92025-1671 SHIM, 52.5X61.5X0.8SHIM, 52.5X61.5X0.8
-
92025C92025-1672 SHIM, 52.5X61.5X0.9SHIM, 52.5X61.5X0.9
-
92025D92025-1673 SHIM, 52.5X61.5X1.0SHIM, 52.5X61.5X1.0
-
92025E92025-1674 SHIM, 52.5X61.5X1.1SHIM, 52.5X61.5X1.1
-
92025F92025-1675 SHIM, 52.5X61.5X1.2SHIM, 52.5X61.5X1.2
-
92025G92025-1676 SHIM, 52.5X61.5X1.3SHIM, 52.5X61.5X1.3
-
92025H92025-1677 SHIM, 52.5X61.5X1.4SHIM, 52.5X61.5X1.4
-
9203392033-1030 RING-SNAPRING-SNAP
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9204592045-1015 BEARING-BALL, #6009BEARING-BALL, #6009
-
9204692046-1247 BEARING-NEEDLEBEARING-NEEDLE
-
92046A92046-1265 BEARING-NEEDLEBEARING-NEEDLE
-
9204992049-1248 SEAL-OILSEAL-OIL
-
183183H0814 BOLT-UPSET-WS-SMALL, 8X14BOLT-UPSET-WS-SMALL, 8X14
-
220220X0614 SCREW-PAN-CROS, 6X14SCREW-PAN-CROS, 6X14
-
410410B0500 WASHER-PLAIN-SMALL, 5MM (CANADA ONLY)WASHER-PLAIN-SMALL, 5MM (CANADA ONLY)
-
410A410B0600 WASHER-PLAIN-SMALL, 6MM (CANADA ONLY)WASHER-PLAIN-SMALL, 6MM (CANADA ONLY)
-
555555A0422 PIN-SPRINGPIN-SPRING
-
670670B2012 O RING, 12MMO RING, 12MM
-
92049A92049-1287 SEAL-OILSEAL-OIL
-
92049B92049-1460 SEAL-OILSEAL-OIL
-
9205592055-012 RING-ORING-O
-
92055A92055-1119 RING-O, 27MMRING-O, 27MM
-
92055B92055-1136 RING-O, 25.7X2.4RING-O, 25.7X2.4
-
92055C92055-1599 RING-O, 160X2.6RING-O, 160X2.6
-
9205992059-1929 TUBE, 4.7X9.5X900TUBE, 4.7X9.5X900
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206692066-1303 PLUGPLUG
-
92066A92066-1490 PLUG, DRAIN, 10X8PLUG, DRAIN, 10X8
-
9207592075-021 DAMPERDAMPER
-
9208792087-1057 BUSHING-METER GEAR (CANADA ONLY)BUSHING-METER GEAR (CANADA ONLY)
-
9214492144-1278 SPRINGSPRING
-
9215192151-1424 BOLTBOLT
-
92151A92151-1506 BOLT, 8X25BOLT, 8X25
-
9216092160-1956 DAMPERDAMPER
-
9217092170-1676 CLAMPCLAMP
-
92170A92170-1764 CLAMPCLAMP
-
9218092180-1115 SHIM, 52.5X61.5X0.10SHIM, 52.5X61.5X0.10
-
92180A92180-1205 SHIM, T=1.0SHIM, T=1.0
-
92180B92180-1206 SHIM, T=0.1SHIM, T=0.1
-
92180C92180-1207 SHIM, T=0.5SHIM, T=0.5
