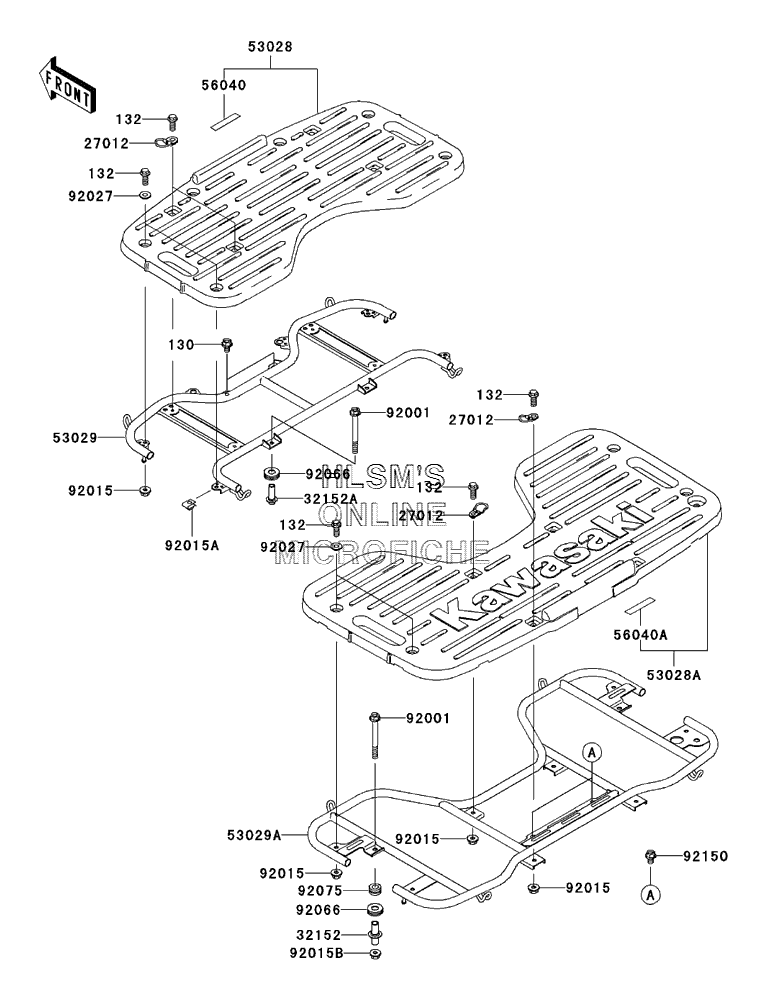

CARRIER(S) для Kawasaki Prairie 300 4x4 (KVF300-A3) - 2001 года выпуска
-
№АртикулНазвание
-
130130J0812 BOLT-FLANGED, 8X12BOLT-FLANGED, 8X12
-
132132J0820 BOLT-FLANGED-SMALL, 8X20BOLT-FLANGED-SMALL, 8X20
-
2701227012-1577 HOOKHOOK
-
3215232152-1066 PIPE, REAR CARRIERPIPE, REAR CARRIER
-
32152A32152-1067 PIPE, FRONT CARRIERPIPE, FRONT CARRIER
-
5302853028-1093-6Z CARRIER-ASSY, FRONT (F.BLACK)CARRIER-ASSY, FRONT (F.BLACK)
-
53028A53028-1094-6Z CARRIER-ASSY, REAR (F.BLACK)CARRIER-ASSY, REAR (F.BLACK)
-
5302953029-1197 CARRIER, FRONTCARRIER, FRONT
-
53029A53029-1198 CARRIER, REARCARRIER, REAR
-
5604056040-1321 LABEL-WARNING, MAXIMUM LOADLABEL-WARNING, MAXIMUM LOAD
-
56040A56040-1322 LABEL-WARNING, MAXIMUM LOADLABEL-WARNING, MAXIMUM LOAD
-
9200192001-1642 BOLT, FLANGED, 8X75 (BLACK)BOLT, FLANGED, 8X75 (BLACK)
-
9201592015-1183 NUT, FLANGED, 8MM (BLACK)NUT, FLANGED, 8MM (BLACK)
-
92015A92015-1691 NUT, CLIP, 8MMNUT, CLIP, 8MM
-
92015B92015-1696 NUT, FLANGED, LOCK, 8MMNUT, FLANGED, LOCK, 8MM
-
9202792027-1908 COLLARCOLLAR
-
9206692066-1438 PLUGPLUG
-
9207592075-1086 DAMPERDAMPER
-
9215092150-1780 BOLT, 8X12BOLT, 8X12
