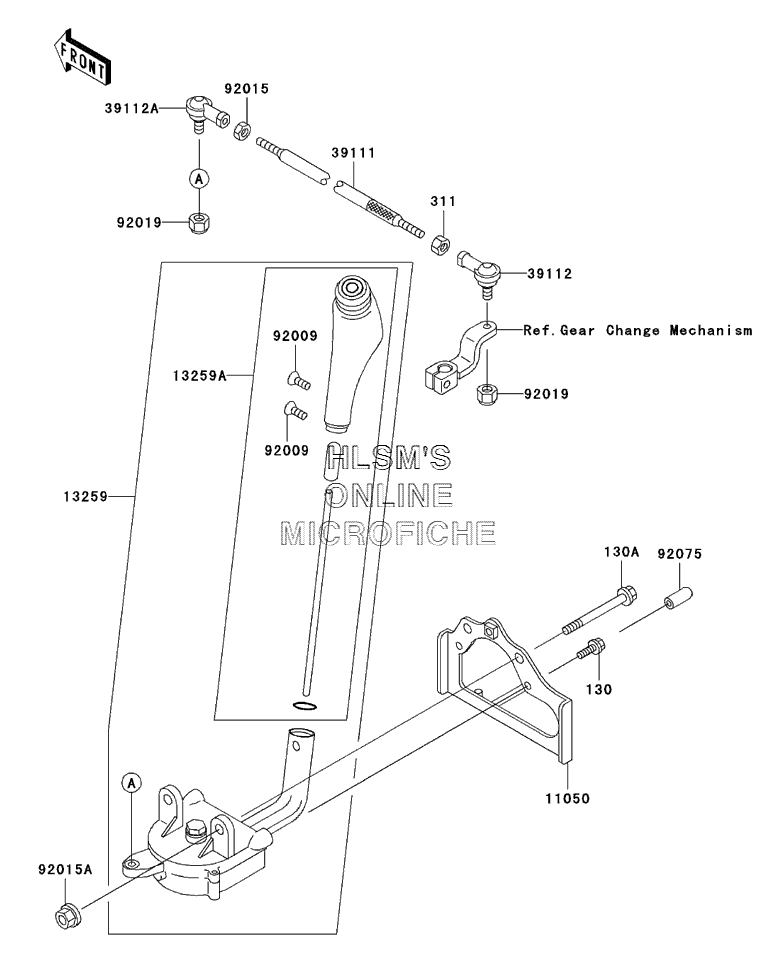

CONTROL для Kawasaki Prairie 300 4x4 (KVF300-A3) - 2001 года выпуска
-
№АртикулНазвание
-
130130J0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130A130J0860 BOLT-FLANGED, 8X60BOLT-FLANGED, 8X60
-
311311J0600 NUT-HEXNUT-HEX
-
1105011050-1700 BRACKETBRACKET
-
1325913259-1010 LEVER-ASSY-SHIFT CONTROLLEVER-ASSY-SHIFT CONTROL
-
13259A13259-1011 LEVER-ASSY-SHIFT CONTROL, KNOBLEVER-ASSY-SHIFT CONTROL, KNOB
-
3911139111-1161 ROD-TIEROD-TIE
-
3911239112-1006 RODEND-TIERODEND-TIE
-
39112A39112-1070 RODEND-TIERODEND-TIE
-
9200992009-1885 SCREW, SHIFT CONTROLSCREW, SHIFT CONTROL
-
9201592015-1125 NUTNUT
-
92015A92015-1397 NUT, LOCK, FLANGED, 8MMNUT, LOCK, FLANGED, 8MM
-
9201992019-008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
9207592075-1980 DAMPERDAMPER
