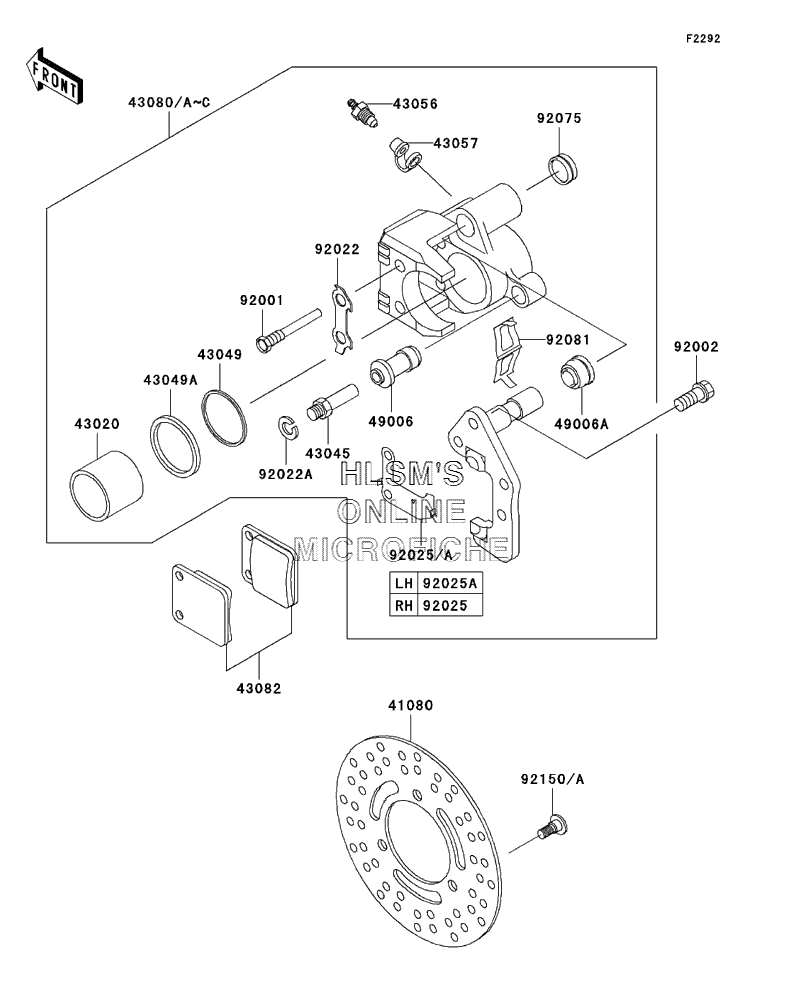

BRAKE - FRONT для Kawasaki Prairie 300 (KVF300-B3) - 2001 года выпуска
-
№АртикулНазвание
-
4108041080-1216 DISC, FRONTDISC, FRONT
-
4302043020-1114 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4304543045-1010 SHAFT-CALIPERSHAFT-CALIPER
-
4304943049-1081 PACKINGPACKING
-
43049A43049-1082 PACKINGPACKING
-
4305643056-1055 BREATHERBREATHER
-
4305743057-1001 CAP-BREATHERCAP-BREATHER
-
43080B43080-5135 CALIPER-SUB-ASSY, FRONT (LEFT)CALIPER-SUB-ASSY, FRONT (LEFT)
-
43080C43080-5136 CALIPER-SUB-ASSY, FRONT (RIGHT)CALIPER-SUB-ASSY, FRONT (RIGHT)
-
4308243082-1201 PAD-ASSY-BRAKEPAD-ASSY-BRAKE
-
4900649006-1088 BOOT, CALIPERBOOT, CALIPER
-
49006A49006-1089 BOOT, CALIPERBOOT, CALIPER
-
9200192001-1723 BOLT, PAD HOLDERBOLT, PAD HOLDER
-
9200292002-1737 BOLT, FLANGED, 8X13BOLT, FLANGED, 8X13
-
9202292022-1372 WASHER, LOCKWASHER, LOCK
-
92022A92022-1373 WASHER, WAVEWASHER, WAVE
-
9202592025-1344 SHIM, PADSHIM, PAD
-
92025A92025-1817 SHIM, PADSHIM, PAD
-
9207592075-1414 DAMPERDAMPER
-
9208192081-1502 SPRING, PADSPRING, PAD
-
92150A92150-1800 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
