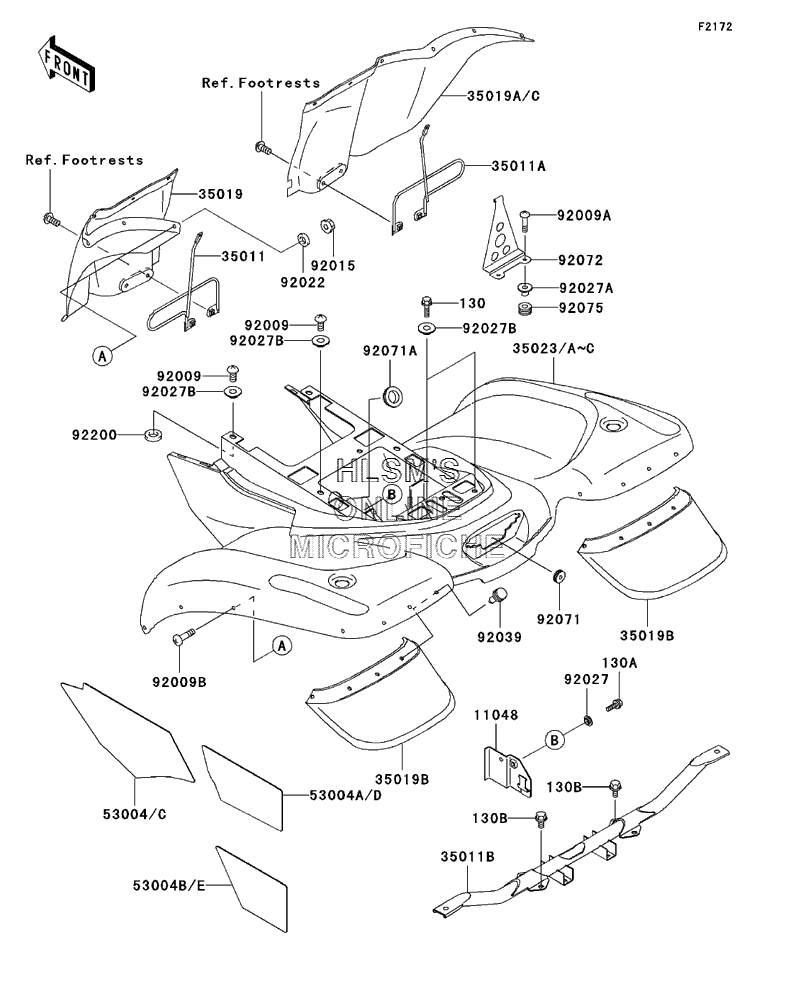

FENDER - REAR для Kawasaki Prairie 300 (KVF300-B3) - 2001 года выпуска
-
№АртикулНазвание
-
130130C0618 BOLT-FLANGED, 6X18BOLT-FLANGED, 6X18
-
130A130J0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130B130J0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
1104811048-1966 BRACKET, ELECTRICBRACKET, ELECTRIC
-
3501135011-1759 STAY, REAR FLAP (LEFT)STAY, REAR FLAP (LEFT)
-
35011A35011-1760 STAY, REAR FLAP (RIGHT)STAY, REAR FLAP (RIGHT)
-
35011B35011-1782 STAY, REAR FENDERSTAY, REAR FENDER
-
3501935019-1334-6Z FLAP, REAR, FRONT (LEFT) (F.BLACK)FLAP, REAR, FRONT (LEFT) (F.BLACK)
-
35019B35019-1336-6Z FLAP, REAR, REAR (F.BLACK)FLAP, REAR, REAR (F.BLACK)
-
35019C35019-1375-6Z FLAP, REAR, FRONT (RIGHT) (F.BLACK)FLAP, REAR, FRONT (RIGHT) (F.BLACK)
-
3502335023-1494-6A FENDER-REAR (L.GREEN)FENDER-REAR (L.GREEN)
-
35023A35023-1494-6L FENDER-REAR (F.RED)FENDER-REAR (F.RED)
-
5300453004-1111 MAT, REAR FENDERMAT, REAR FENDER
-
53004A53004-1112 MAT, REAR FENDERMAT, REAR FENDER
-
53004B53004-1113 MAT, REAR FENDERMAT, REAR FENDER
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1465 SCREW, 6X25SCREW, 6X25
-
92009B92009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
9202792027-1018 COLLAR, L=3.5COLLAR, L=3.5
-
92027A92027-1651 COLLAR, FLANGED, L=12.1, BLACKCOLLAR, FLANGED, L=12.1, BLACK
-
92027B92027-1964 COLLAR, L=4.7COLLAR, L=4.7
-
9203992039-1229 RIVETRIVET
-
9207192071-1058 GROMMET, SENSOR LEADGROMMET, SENSOR LEAD
-
92071A92071-1237 GROMMETGROMMET
-
9207292072-1361 BANDBAND
-
9207592075-222 DAMPER, CASEDAMPER, CASE
-
9220092200-1055 WASHER, 8.5X20X2.3WASHER, 8.5X20X2.3
