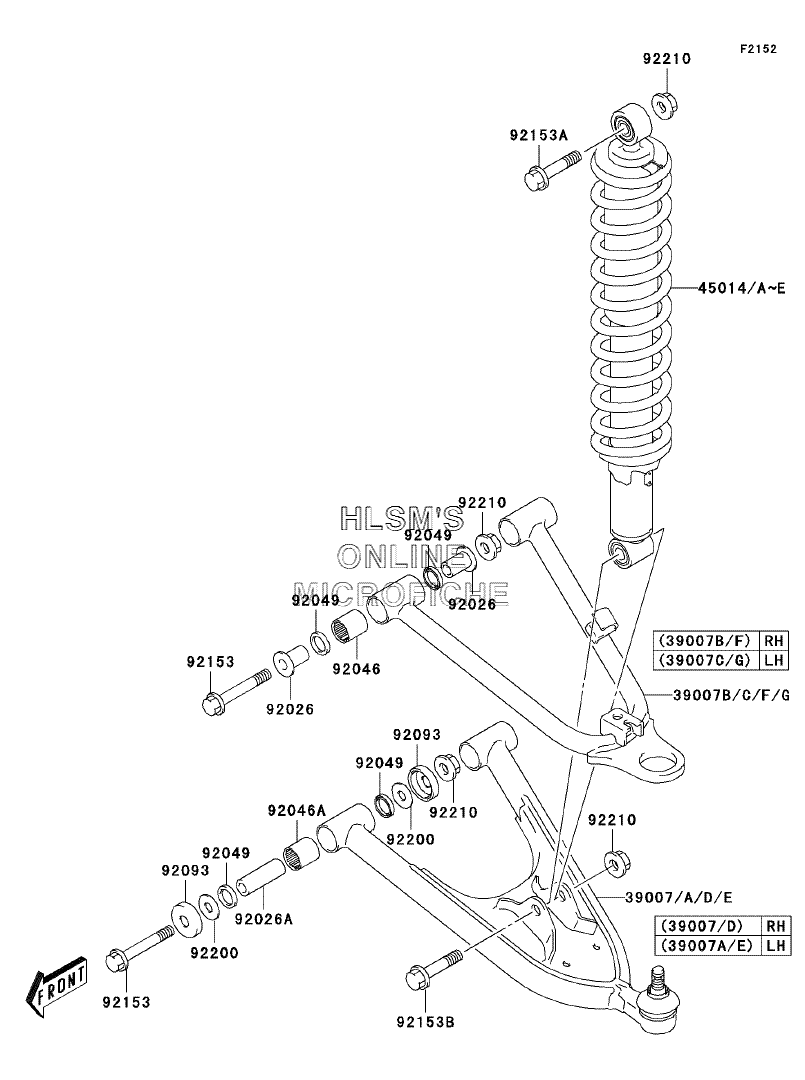

SUSPENSION - FRONT для Kawasaki KFX400 (KSF400-A1) - 2003 года выпуска
-
№АртикулНазвание
-
3900739007-S007-514 ARM-SUSPENSION (LOWER/RIGHT) (S.SILVER)ARM-SUSPENSION (LOWER/RIGHT) (S.SILVER)
-
39007A39007-S008-514 ARM-SUSPENSION (LOWER/LEFT) (S.SILVER)ARM-SUSPENSION (LOWER/LEFT) (S.SILVER)
-
39007B39007-S009-514 ARM-SUSPENSION (UPPER/RIGHT) (S.SILVER)ARM-SUSPENSION (UPPER/RIGHT) (S.SILVER)
-
39007C39007-S010-514 ARM-SUSPENSION (UPPER/LEFT) (S.SILVER)ARM-SUSPENSION (UPPER/LEFT) (S.SILVER)
-
4501445014-S017-535 SHOCK ABSORBER (L.GREEN)SHOCK ABSORBER (L.GREEN)
-
9202692026-S095 SPACERSPACER
-
92026A92026-S096 SPACERSPACER
-
9204692046-S003 BEARING-NEEDLE, 17X24X26BEARING-NEEDLE, 17X24X26
-
92046A92046-S016 BEARING-NEEDLE, SUSPENSION ARMBEARING-NEEDLE, SUSPENSION ARM
-
9204992049-S024 SEAL-OIL, REAR CUSHION RODSEAL-OIL, REAR CUSHION ROD
-
9209392093-S039 SEALSEAL
-
9215392153-S267 BOLT, SUSPENSION ARMBOLT, SUSPENSION ARM
-
92153A92153-S275 BOLT, SHOCK ABSORBER, 10X38BOLT, SHOCK ABSORBER, 10X38
-
92153B92153-S276 BOLT, SHOCK ABSORBER, 10X48BOLT, SHOCK ABSORBER, 10X48
-
9220092200-S130 WASHER, SUSPENSION ARMWASHER, SUSPENSION ARM
-
9221092210-S015 NUTNUT
