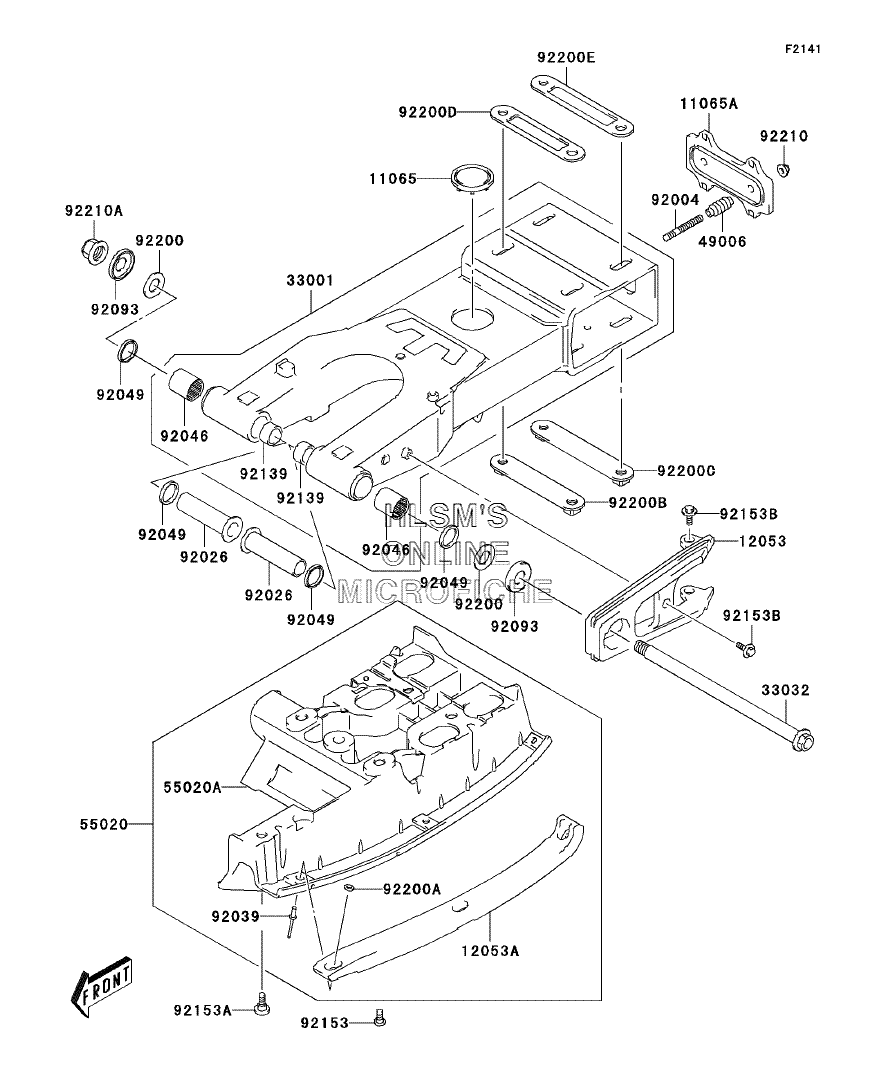

SUSPENSION - SWINGARM для Kawasaki KFX400 (KSF400-A1) - 2003 года выпуска
-
№АртикулНазвание
-
1106511065-S038 CAP, SWINGING ARMCAP, SWINGING ARM
-
11065A11065-S039 CAP, CHAIN ADJUSTERCAP, CHAIN ADJUSTER
-
1205312053-S017 GUIDE-CHAINGUIDE-CHAIN
-
12053A12053-S022 GUIDE-CHAINGUIDE-CHAIN
-
3300133001-S006 ARM-COMP-SWINGARM-COMP-SWING
-
3303233032-S008 SHAFT-SWING ARMSHAFT-SWING ARM
-
4900649006-S024 BOOT, CHAIN ADJUSTER BOLTBOOT, CHAIN ADJUSTER BOLT
-
5502055020-S033 GUARD, SWING ARMGUARD, SWING ARM
-
55020A55020-S034 GUARD, SWING ARMGUARD, SWING ARM
-
9200492004-S011 STUD, CHAIN ADJUSTERSTUD, CHAIN ADJUSTER
-
9202692026-S100 SPACERSPACER
-
9203992039-S011 RIVETRIVET
-
9204692046-S019 BEARING-NEEDLE, SWING ARMBEARING-NEEDLE, SWING ARM
-
9204992049-S053 SEAL-OIL, SWING ARMSEAL-OIL, SWING ARM
-
9209392093-S040 SEALSEAL
-
9213992139-S029 BUSHINGBUSHING
-
9215392153-S282 BOLTBOLT
-
92153A92153-S299 BOLTBOLT
-
92153B92153-S306 BOLTBOLT
-
9220092200-S054 WASHERWASHER
-
92200A92200-S215 WASHERWASHER
-
92200B92200-S216 WASHER, AXLEWASHER, AXLE
-
92200C92200-S217 WASHER, AXLEWASHER, AXLE
-
92200D92200-S218 WASHERWASHER
-
92200E92200-S219 WASHERWASHER
-
9221092210-S046 NUTNUT
-
92210A92210-S098 NUTNUT
