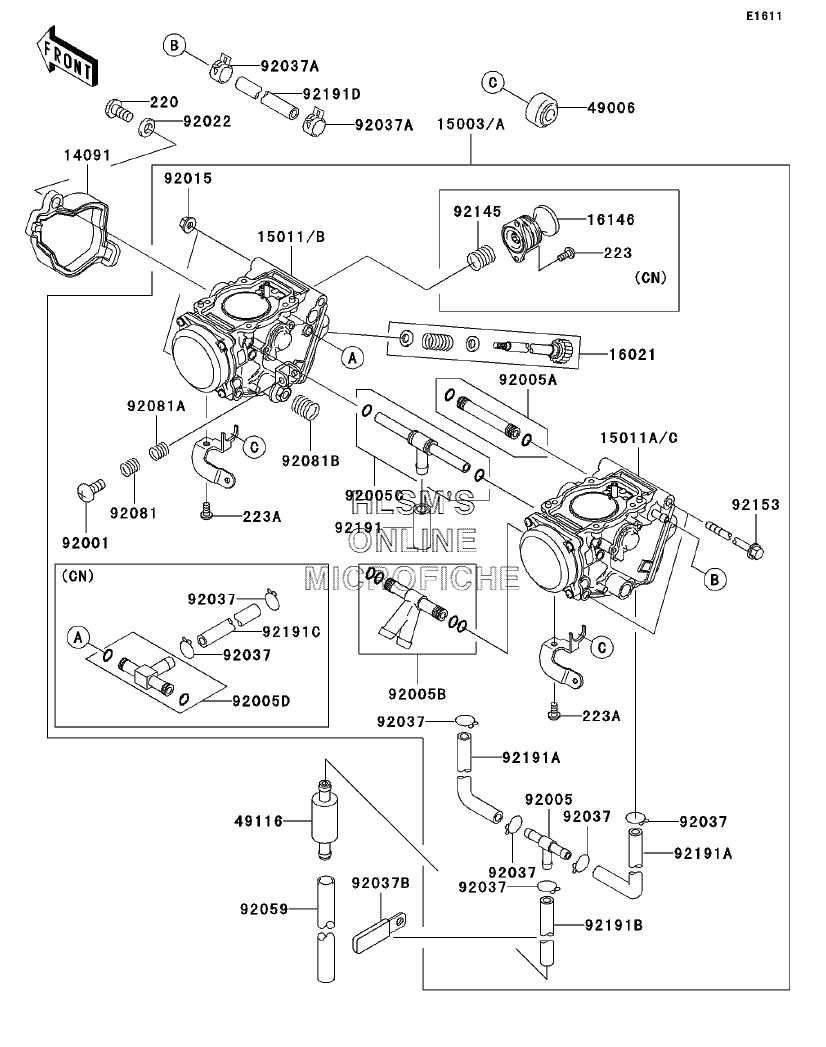

CARBURETOR для Kawasaki Brute Force 650 4x4 (KVF650-D1) - 2005 года выпуска
-
№АртикулНазвание
-
1409114091-1196 COVER, THROTTLE CABLECOVER, THROTTLE CABLE
-
1500315003-1755 CARBURETOR-ASSY (USA ONLY)CARBURETOR-ASSY (USA ONLY)
-
15003A15003-1756 CARBURETOR-ASSY (CANADA ONLY)CARBURETOR-ASSY (CANADA ONLY)
-
1501115011-1991 CARBURETOR, FRONT (USA ONLY)CARBURETOR, FRONT (USA ONLY)
-
15011A15011-1992 CARBURETOR, REAR (USA ONLY)CARBURETOR, REAR (USA ONLY)
-
15011B15011-1993 CARBURETOR, FRONT (CANADA ONLY)CARBURETOR, FRONT (CANADA ONLY)
-
15011C15011-1994 CARBURETOR, REAR (CANADA ONLY)CARBURETOR, REAR (CANADA ONLY)
-
1602116021-1238 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1614616146-1225 COVER-ASSY, PRIMING (CANADA ONLY)COVER-ASSY, PRIMING (CANADA ONLY)
-
4900649006-1353 BOOT, STARTER CABLEBOOT, STARTER CABLE
-
4911649116-1126 VALVE-ASSYVALVE-ASSY
-
9200192001-1998 BOLT, THROTTLE ADJUSTBOLT, THROTTLE ADJUST
-
9200592005-1112 FITTING, FUEL, T-TYPEFITTING, FUEL, T-TYPE
-
92005A92005-1375 FITTINGFITTING
-
92005B92005-1376 FITTINGFITTING
-
92005C92005-1385 FITTINGFITTING
-
92005D92005-1393 FITTING (CANADA ONLY)FITTING (CANADA ONLY)
-
9201592015-1259 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9202292022-1380 WASHER, 5.2X13X1WASHER, 5.2X13X1
-
9203792037-1201 CLAMP, TUBE (USA ONLY)CLAMP, TUBE (USA ONLY)
-
9203792037-1201 CLAMP, TUBE (CANADA ONLY)CLAMP, TUBE (CANADA ONLY)
-
92037A92037-1505 CLAMP, TUBECLAMP, TUBE
-
92037B92037-1539 CLAMP, L=45CLAMP, L=45
-
9205992059-1736 TUBE, 7X10X100TUBE, 7X10X100
-
9208192081-1620 SPRINGSPRING
-
92081A92081-1621 SPRING, THROTTLE ADJUST (LOWER)SPRING, THROTTLE ADJUST (LOWER)
-
92081B92081-1622 SPRING, THROTTLE ADJUST (CENTER)SPRING, THROTTLE ADJUST (CENTER)
-
9214592145-1451 SPRING, PRIMING (CANADA ONLY)SPRING, PRIMING (CANADA ONLY)
-
9215392153-1068 BOLT, 5X143BOLT, 5X143
-
9219192191-1672 TUBE, 7X11X25TUBE, 7X11X25
-
92191A92191-1673 TUBE, 4.5X8X65TUBE, 4.5X8X65
-
220220B0408 SCREW-PAN-CROS, 4X8SCREW-PAN-CROS, 4X8
-
223223C0412 SCREW-PAN-WS-CROS, 4X12 (CANADA ONLY)SCREW-PAN-WS-CROS, 4X12 (CANADA ONLY)
-
223A223D0408 SCREW-PAN-WS-CROS, 4X8SCREW-PAN-WS-CROS, 4X8
-
92191B92191-1674 TUBE, 4.5X8X420TUBE, 4.5X8X420
-
92191C92191-1676 TUBE, 4.5X8.5X35 (CANADA ONLY)TUBE, 4.5X8.5X35 (CANADA ONLY)
-
92191D92191-1694 TUBE, 5.3X10.3X200TUBE, 5.3X10.3X200
