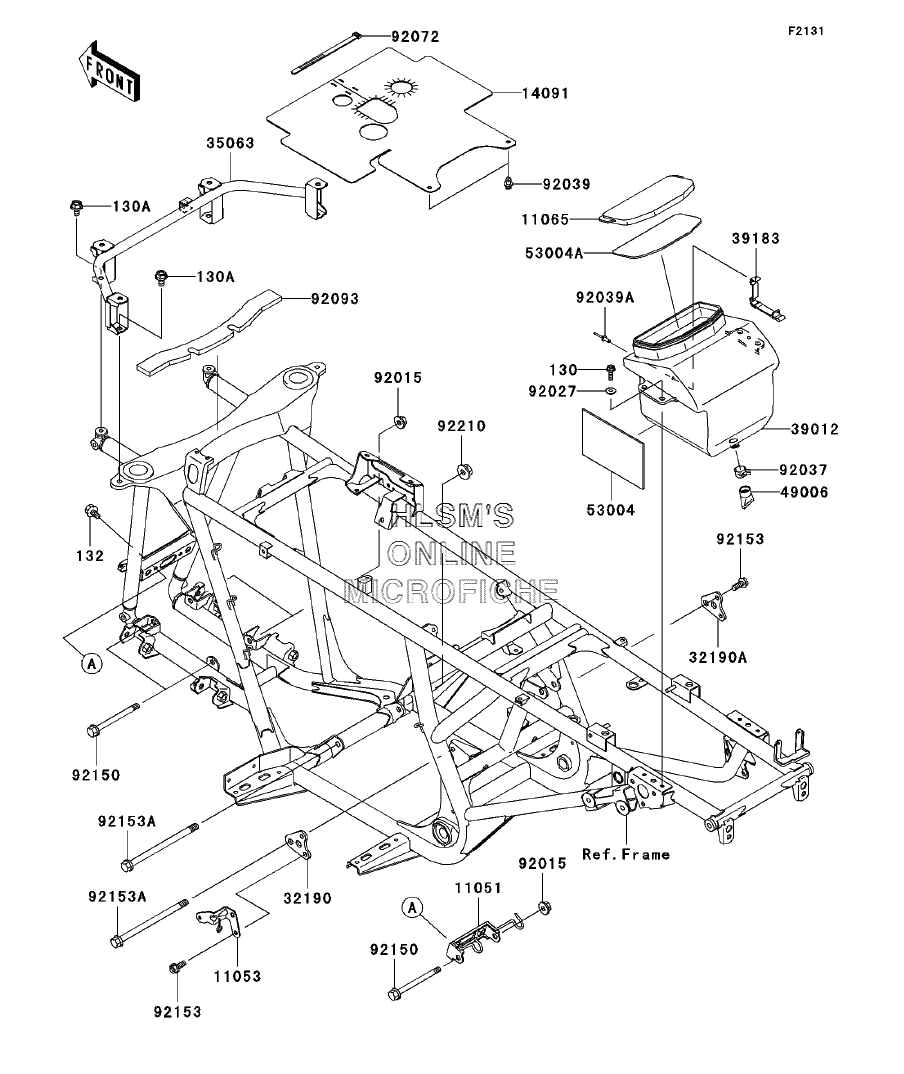

FRAME FITTINGS для Kawasaki Brute Force 650 4x4 (KVF650-D1) - 2005 года выпуска
-
№АртикулНазвание
-
130130G0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
130A130S0814 BOLT-FLANGED, 8X14BOLT-FLANGED, 8X14
-
132132J0814 BOLT-FLANGED-SMALL, 8X14BOLT-FLANGED-SMALL, 8X14
-
1105111051-1929 BRACKET, FRONT DIFFBRACKET, FRONT DIFF
-
1105311053-0481 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
1106511065-1154 CAP, STORAGE CASECAP, STORAGE CASE
-
1409114091-0416 COVER, FR, UPPCOVER, FR, UPP
-
3219032190-0045 BRACKET-ENGINE (REAR/UPPER/LEFT)BRACKET-ENGINE (REAR/UPPER/LEFT)
-
32190A32190-0046 BRACKET-ENGINE (REAR/UPPER/RIGHT)BRACKET-ENGINE (REAR/UPPER/RIGHT)
-
3506335063-0201 STAY, CARRIERSTAY, CARRIER
-
3901239012-1064 CASE-STORAGECASE-STORAGE
-
3918339183-1065 BAND-ASSY, TOOL BAGBAND-ASSY, TOOL BAG
-
4900649006-1292 BOOTBOOT
-
5300453004-1139 MAT, STORAGE CASEMAT, STORAGE CASE
-
53004A53004-1147 MAT, STORAGE CASE CAPMAT, STORAGE CASE CAP
-
9201592015-1717 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
9202792027-1936 COLLARCOLLAR
-
9203792037-1460 CLAMP, HOSE CLIPCLAMP, HOSE CLIP
-
9203992039-1229 RIVETRIVET
-
92039A92039-3719 RIVET, 4.8MMRIVET, 4.8MM
-
9207292072-030 BAND, L=123BAND, L=123
-
9209392093-1555 SEALSEAL
-
9215092150-1642 BOLT, FLANGED, 10X120BOLT, FLANGED, 10X120
-
9215392153-0948 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
92153A92153-1272 BOLT, FLANGED, 12X190BOLT, FLANGED, 12X190
-
9221092210-1150 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
