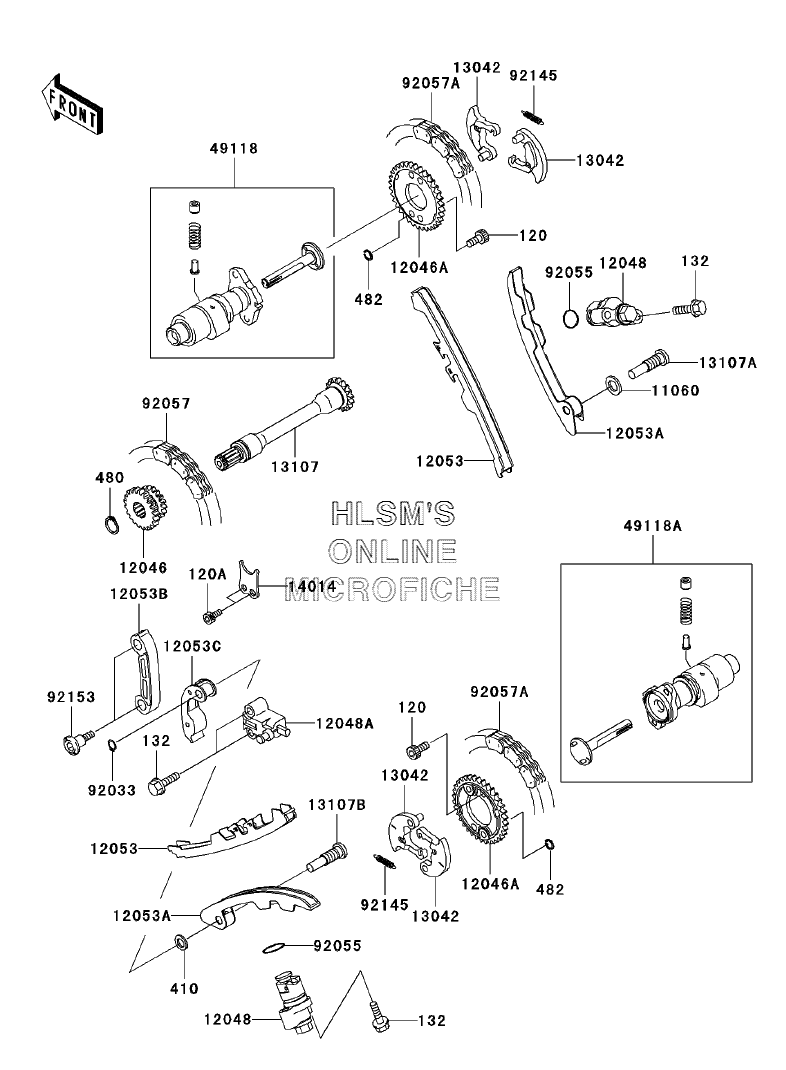

CAMSHAFT(S)/TENSIONER для Kawasaki KFX700 (Red / Silver) (KSV700-B2) - 2005 года выпуска
-
№АртикулНазвание
-
120120P0610 BOLT SOCKET, 6X10BOLT SOCKET, 6X10
-
120A120S0614 BOLT SOCKET, 6X14 (BLACK)BOLT SOCKET, 6X14 (BLACK)
-
132132Y0630 BOLT, FLANGED (SMALL)BOLT, FLANGED (SMALL)
-
410410B0800 WASHER PLAIN SMALL, 8MMWASHER PLAIN SMALL, 8MM
-
480480J1400 CIRCLIP TYPE C, 14MMCIRCLIP TYPE C, 14MM
-
482482J5000 CIRCLIP TYPE ECIRCLIP TYPE E
-
1106011060-1966 GASKETGASKET
-
1204612046-0021 SPROCKET (21/17 TEETH)SPROCKET (21/17 TEETH)
-
12046A12046-1203 SPROCKET, CAMSHAFT (34 TEETH)SPROCKET, CAMSHAFT (34 TEETH)
-
1204812048-1176 TENSIONER ASSY, CAMTENSIONER ASSY, CAM
-
12048A12048-1177 TENSIONER ASSY, SECONDARYTENSIONER ASSY, SECONDARY
-
1205312053-1441 GUIDE CHAIN, CAMSHAFT, TENSIONGUIDE CHAIN, CAMSHAFT, TENSION
-
12053A12053-1442 GUIDE CHAIN, CAMSHAFT, SLACKGUIDE CHAIN, CAMSHAFT, SLACK
-
12053B12053-1443 GUIDE CHAIN, TENSIONGUIDE CHAIN, TENSION
-
12053C12053-1444 GUIDE CHAIN, SLACKGUIDE CHAIN, SLACK
-
1304213042-1141 WEIGHT, DECOMPWEIGHT, DECOMP
-
1310713107-0029 SHAFTSHAFT
-
13107A13107-1443 SHAFT, CHAIN GUIDE, FRONTSHAFT, CHAIN GUIDE, FRONT
-
13107B13107-1444 SHAFT, CHAIN GUIDE, REARSHAFT, CHAIN GUIDE, REAR
-
1401414014-1148 PLATE POSITION, DRIVEPLATE POSITION, DRIVE
-
4911849118-0001 CAMSHAFT COMP, FRONTCAMSHAFT COMP, FRONT
-
49118A49118-0002 CAMSHAFT COMP, REARCAMSHAFT COMP, REAR
-
9203392033-1039 RING SNAP, 8MMRING SNAP, 8MM
-
9205592055-086 O-RINGO-RING
-
9205792057-0073 CHAIN, DID SCR 0412 SDHCHAIN, DID SCR 0412 SDH
-
92057A92057-0074 CHAIN, DID SCR 0409 SDHCHAIN, DID SCR 0409 SDH
-
9214592145-1303 SPRING, DECOMPSPRING, DECOMP
-
9215392153-1200 BOLTBOLT
