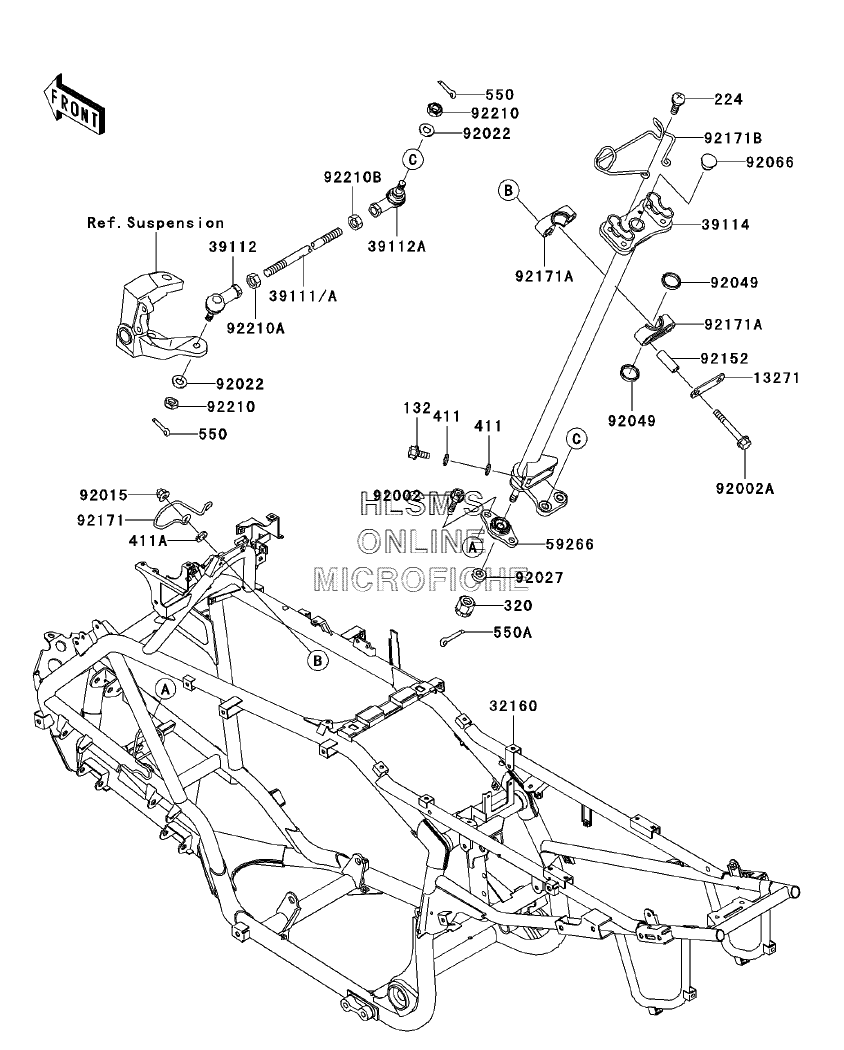

FRAME для Kawasaki KFX700 (Red / Silver) (KSV700-B2) - 2005 года выпуска
-
№АртикулНазвание
-
132132J0616 BOLT, FLANGED (SMALL)BOLT, FLANGED (SMALL)
-
224224C0614 SCREW PAN WP CROSSCREW PAN WP CROS
-
320320H1000 NUT CASTLENUT CASTLE
-
411411B0600 WASHER PLAIN, 6MMWASHER PLAIN, 6MM
-
411A411F0800 WASHER PLAIN, 8MMWASHER PLAIN, 8MM
-
550550D2015 PIN COTTER, 2.0X15PIN COTTER, 2.0X15
-
550A550D2518 PIN COTTER, 2.5X18PIN COTTER, 2.5X18
-
1327113271-1887 PLATEPLATE
-
3216032160-0028-HN FRAME COMP (G.GRAY)FRAME COMP (G.GRAY)
-
3911139111-0010 ROD, TIEROD, TIE
-
3911239112-1087 RODEND TIE, RIGHT HANDEDRODEND TIE, RIGHT HANDED
-
39112A39112-1088 RODEND TIE, LEFT HANDEDRODEND TIE, LEFT HANDED
-
3911439114-0001 SHAFT COMP STRGSHAFT COMP STRG
-
5926659266-0001 JOINT BALLJOINT BALL
-
9200292002-1250 BOLT, 8X20BOLT, 8X20
-
92002A92002-1349 BOLT, FLANGED, 8X70BOLT, FLANGED, 8X70
-
9201592015-1174 NUT, CAP, 8MM (BLACK)NUT, CAP, 8MM (BLACK)
-
9202292022-3742 WASHER, 10.2X20X1.5WASHER, 10.2X20X1.5
-
9202792027-1817 COLLAR, 10X21.3X7COLLAR, 10X21.3X7
-
9204992049-1611 SEAL OIL, SR25.4X31X3.8SEAL OIL, SR25.4X31X3.8
-
9206692066-1220 PLUGPLUG
-
9215292152-1456 COLLAR, 9.1X13.9X39.2COLLAR, 9.1X13.9X39.2
-
9217192171-0066 CLAMP, CABLECLAMP, CABLE
-
92171A92171-1542 CLAMP, STEERING SHAFTCLAMP, STEERING SHAFT
-
92171B92171-1543 CLAMP, CABLE AND HARNESSCLAMP, CABLE AND HARNESS
-
9221092210-1184 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
92210A92210-1385 NUT, RIGHT HANDEDNUT, RIGHT HANDED
-
92210B92210-1386 NUT, LEFT HANDEDNUT, LEFT HANDED
