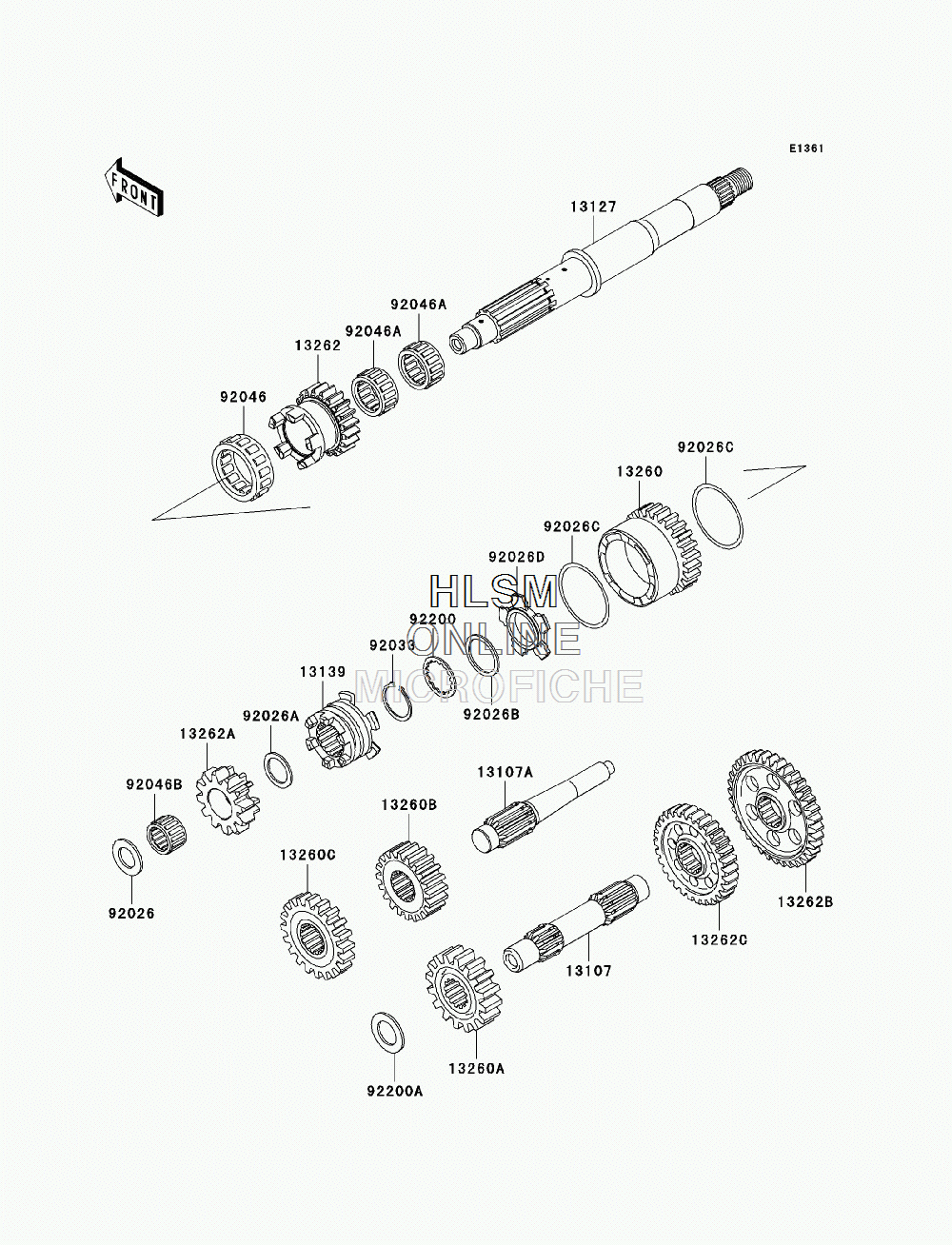

TRANSMISSION для Kawasaki Brute Force 650 4x4i Realtree Hardwoods Green HD (KVF650G6F) - 2006 года выпуска
-
№АртикулНазвание
-
1310713107-0113 SHAFT,COUNTERSHAFT,COUNTER
-
13107A13107-1437 SHAFT, REVERSE,IDLESHAFT, REVERSE,IDLE
-
1312713127-1282 SHAFT-TRANSMISSION INPUTSHAFT-TRANSMISSION INPUT
-
1313913139-0003 SHIFTERSHIFTER
-
1326013260-1867 GEAR,INPUT HIGH,26TGEAR,INPUT HIGH,26T
-
13260A13260-1871 GEAR,OUTPUT DRIVE,18TGEAR,OUTPUT DRIVE,18T
-
13260B13260-1872 GEAR,OUTPUT REVERSE,16TGEAR,OUTPUT REVERSE,16T
-
13260C13260-1873 GEAR,DRIVEN REVERSE,16TGEAR,DRIVEN REVERSE,16T
-
1326213262-0234 GEAR,INPUT LOW,20TGEAR,INPUT LOW,20T
-
13262A13262-0235 GEAR,INPUT REVERSE,12TGEAR,INPUT REVERSE,12T
-
13262B13262-0313 GEAR,DRIVEN LOW,36TGEAR,DRIVEN LOW,36T
-
13262C13262-0314 GEAR,DRIVEN HI,30TGEAR,DRIVEN HI,30T
-
9202692026-1415 SPACER,17.3X30X2.0SPACER,17.3X30X2.0
-
92026A92026-1568 SPACER,21.2X29X1.6SPACER,21.2X29X1.6
-
92026B92026-1587 SPACER,28.2X34.5X1.6SPACER,28.2X34.5X1.6
-
92026C92026-1599 SPACER,48.2X54.3X1.0SPACER,48.2X54.3X1.0
-
92026D92026-1600 SPACER,HI & LOWSPACER,HI & LOW
-
9203392033-1037 RING-SNAP,25.9X30.6X1.2RING-SNAP,25.9X30.6X1.2
-
9204692046-1276 BEARING-NEEDLE,HIGH GEARBEARING-NEEDLE,HIGH GEAR
-
92046A92046-1278 BEARING-NEEDLE,FWF-283317BEARING-NEEDLE,FWF-283317
-
92046B92046-1279 BEARING-NEEDLE, REVERSE GEARBEARING-NEEDLE, REVERSE GEAR
-
9220092200-1240 WASHER,28.5X34.0X1.5WASHER,28.5X34.0X1.5
-
92200A92200-1351 WASHER,20.3X33X2.0WASHER,20.3X33X2.0
