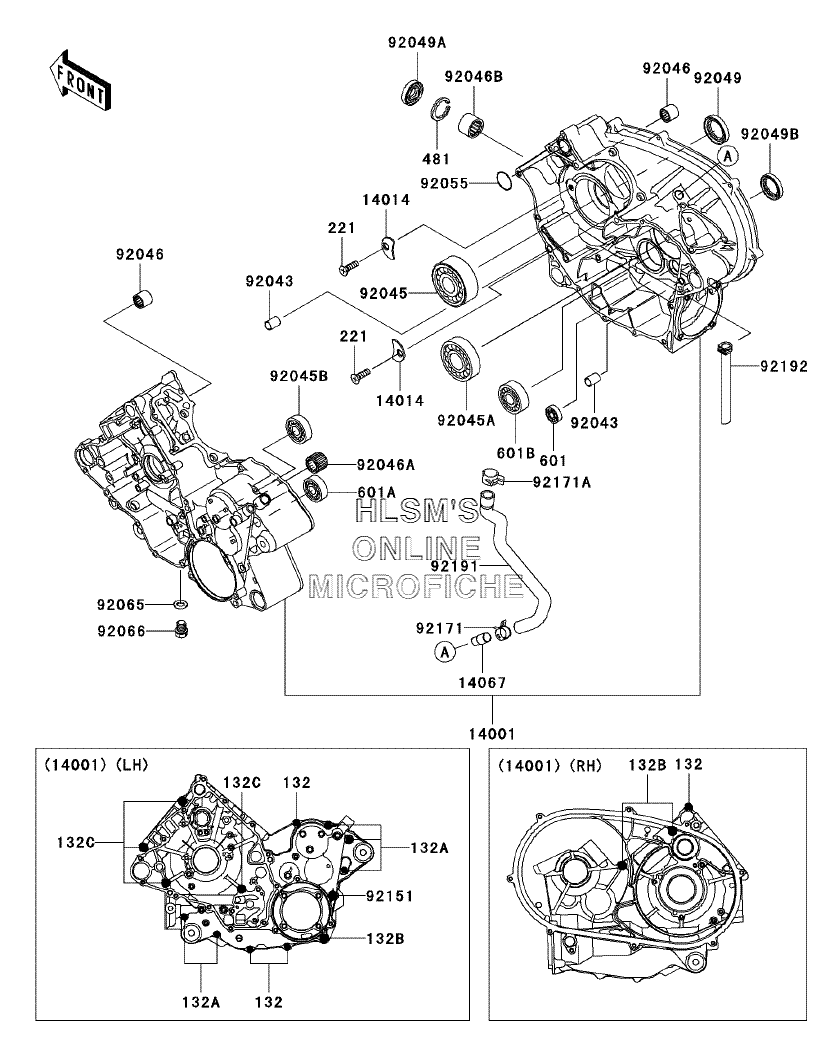

CRANKCASE для Kawasaki Prairie 700 4x4 (KVF700A6F) - 2006 года выпуска
-
№АртикулНазвание
-
132132Y0640 BOLT-FLANGED-SMALL, 6X40BOLT-FLANGED-SMALL, 6X40
-
132A132Y0665 BOLT-FLANGED-SMALL, 6X65BOLT-FLANGED-SMALL, 6X65
-
132B132Y08110 BOLT-FLANGED-SMALL, 8X110BOLT-FLANGED-SMALL, 8X110
-
132C132Y0875 BOLT-FLANGED-SMALL, 8X75BOLT-FLANGED-SMALL, 8X75
-
221221B0616 SCREW-CSK-CROS, 6X16SCREW-CSK-CROS, 6X16
-
481481J3700 CIRCLIP-TYPE-C, 37MMCIRCLIP-TYPE-C, 37MM
-
601601A6000 BEARING-BALLBEARING-BALL
-
601A601A6004 BEARING-BALL, #6004BEARING-BALL, #6004
-
601B601A6304 BEARING-BALL, #6304BEARING-BALL, #6304
-
1400114001-0044 SET-CRANKCASESET-CRANKCASE
-
1401414014-0006 PLATE-POSITIONPLATE-POSITION
-
1406714067-006 FITTING, BREATHERFITTING, BREATHER
-
9204392043-1506 PINPIN
-
9204592045-0012 BEARING-BALL, 5208X2-A-ECG45BEARING-BALL, 5208X2-A-ECG45
-
92045A92045-1190 BEARING-BALL, 6306SH2BEARING-BALL, 6306SH2
-
92045B92045-1389 BEARING-BALL, 6303LUABEARING-BALL, 6303LUA
-
9204692046-1118 BEARING-NEEDLE, TA202715ZEBEARING-NEEDLE, TA202715ZE
-
92046A92046-1143 BEARING-NEEDLEBEARING-NEEDLE
-
92046B92046-1277 BEARING-NEEDLE, FJ-2820WABEARING-NEEDLE, FJ-2820WA
-
9204992049-1452 SEAL-OIL, TC 35X50X8SEAL-OIL, TC 35X50X8
-
92049A92049-1570 SEAL-OIL, TCY 28X42X8SEAL-OIL, TCY 28X42X8
-
92049B92049-1575 SEAL-OIL, HTC 30X45X8SEAL-OIL, HTC 30X45X8
-
9205592055-1136 RING-O, 25.7X2.4RING-O, 25.7X2.4
-
9206592065-097 GASKET, 12X22X2GASKET, 12X22X2
-
9206692066-1174 PLUG, OIL DRAIN, 12X15PLUG, OIL DRAIN, 12X15
-
9215192151-1689 BOLT, 8X110BOLT, 8X110
-
9217192171-0329 CLAMPCLAMP
-
92171A92171-0514 CLAMPCLAMP
-
9219192191-1740 TUBE, BREATHERTUBE, BREATHER
-
9219292192-0057 TUBE, OIL RETURNTUBE, OIL RETURN
