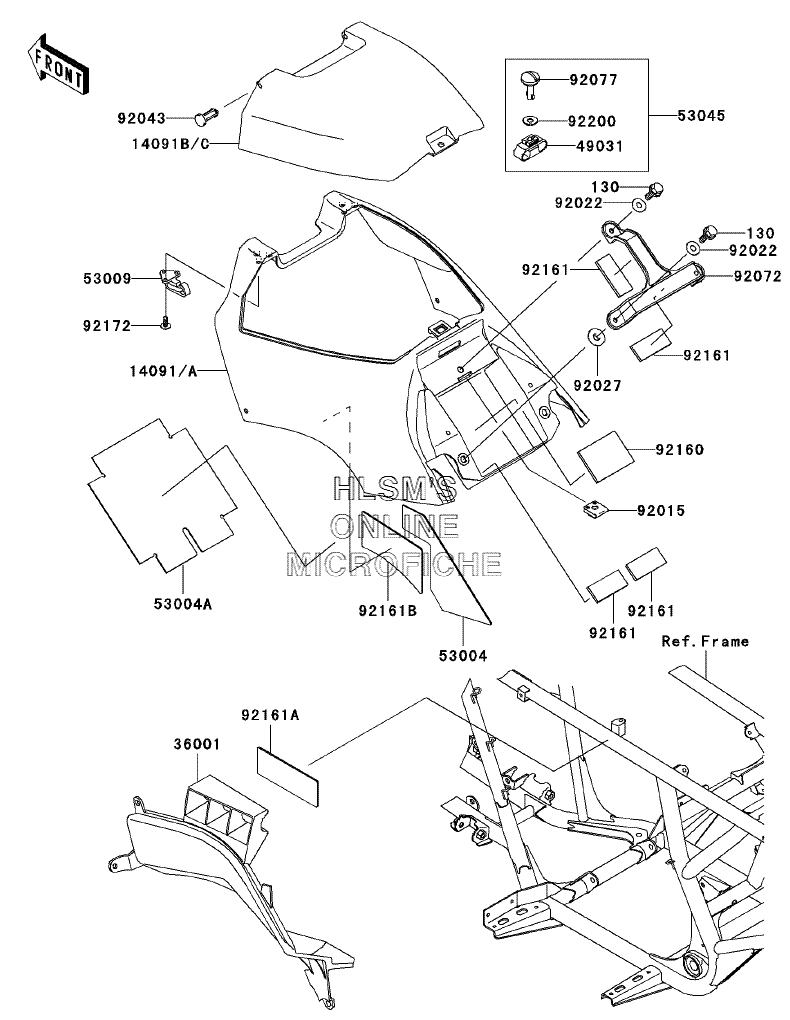

SIDE COVERS для Kawasaki Prairie 700 4x4 (KVF700A6F) - 2006 года выпуска
-
№АртикулНазвание
-
130130J0618 BOLT-FLANGED, 6X18BOLT-FLANGED, 6X18
-
1409114091-1423-260 COVER, FUEL TANK (A.RED)COVER, FUEL TANK (A.RED)
-
14091A14091-1423-286 COVER, FUEL TANK (W.GREEN)COVER, FUEL TANK (W.GREEN)
-
14091B14091-1424-260 COVER, FUEL TANK (UPPER) (A.RED)COVER, FUEL TANK (UPPER) (A.RED)
-
14091C14091-1424-286 COVER, FUEL TANK (UPPER) (W.GREEN)COVER, FUEL TANK (UPPER) (W.GREEN)
-
3600136001-1647 COVER-SIDECOVER-SIDE
-
4903149031-1060 LATCHLATCH
-
5300453004-1148 MAT, FUEL TANK COVERMAT, FUEL TANK COVER
-
53004A53004-1172 MAT, BATTERY CASEMAT, BATTERY CASE
-
5300953009-1110 HINGE, FUEL TANK COVER FRONTHINGE, FUEL TANK COVER FRONT
-
5304553045-1070 HOOK-ASSY, FUEL TANK COVER REARHOOK-ASSY, FUEL TANK COVER REAR
-
9201592015-1678 NUT, CLAMP, 6MMNUT, CLAMP, 6MM
-
9202292022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
9202792027-1964 COLLAR, L=4.7COLLAR, L=4.7
-
9204392043-1623 PIN, HINGEPIN, HINGE
-
9207292072-1406 BAND, BATTERYBAND, BATTERY
-
9207792077-1129 KNOBKNOB
-
9216092160-1897 DAMPER, BATTERYDAMPER, BATTERY
-
9216192161-1127 DAMPERDAMPER
-
92161A92161-1201 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
92161B92161-1202 DAMPER, FUEL TANK COVERDAMPER, FUEL TANK COVER
-
9217292172-1061 SCREW, TAPPING, 5X10SCREW, TAPPING, 5X10
-
9220092200-1578 WASHERWASHER
