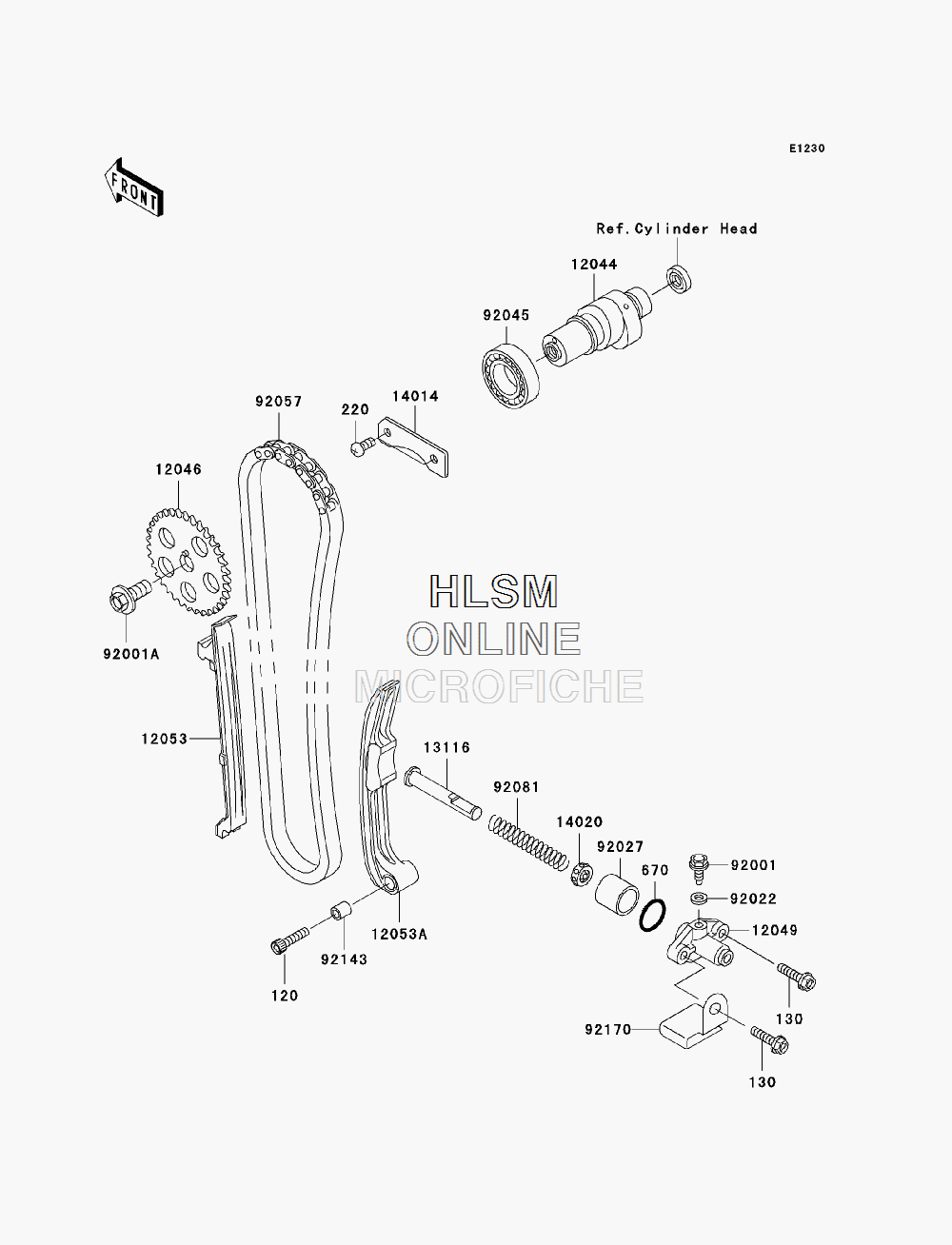

CAMSHAFT(S)/TENSIONER для Kawasaki BAYOU 250 (KLF250A7F) - 2007 года выпуска
-
№АртикулНазвание
-
120120CA0625 BOLT-SOCKET, 6X25BOLT-SOCKET, 6X25
-
130130BD0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
220220AA0614 SCREW-PAN-CROSS, 6X14SCREW-PAN-CROSS, 6X14
-
670670B2021 O RING, 21MMO RING, 21MM
-
1204412044-1211 CAMSHAFT-VALVECAMSHAFT-VALVE
-
1204612046-1059 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
1204912049-1055 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
1205312053-1224 GUIDE-CHAIN, FRONTGUIDE-CHAIN, FRONT
-
12053A12053-1225 GUIDE-CHAIN, TENSIONERGUIDE-CHAIN, TENSIONER
-
1311613116-1129 ROD-PUSHROD-PUSH
-
1401414014-1054 PLATE-POSITIONPLATE-POSITION
-
1402014020-1054 RETAINER, TENSIONERRETAINER, TENSIONER
-
9200192001-1155 BOLT, TENSIONER ADJUSTBOLT, TENSIONER ADJUST
-
92001A92001-1859 BOLT, 10X23BOLT, 10X23
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
9202792027-1273 COLLAR, TENSIONERCOLLAR, TENSIONER
-
9204592045-1056 BEARING-BALL, #6005C4BEARING-BALL, #6005C4
-
9205792057-1380 CHAIN, CAMSHAFTCHAIN, CAMSHAFT
-
9208192081-1105 SPRING, TENSIONERSPRING, TENSIONER
-
9214392143-1253 COLLAR, 6X8X10.2COLLAR, 6X8X10.2
-
9217092170-1471 CLAMPCLAMP
