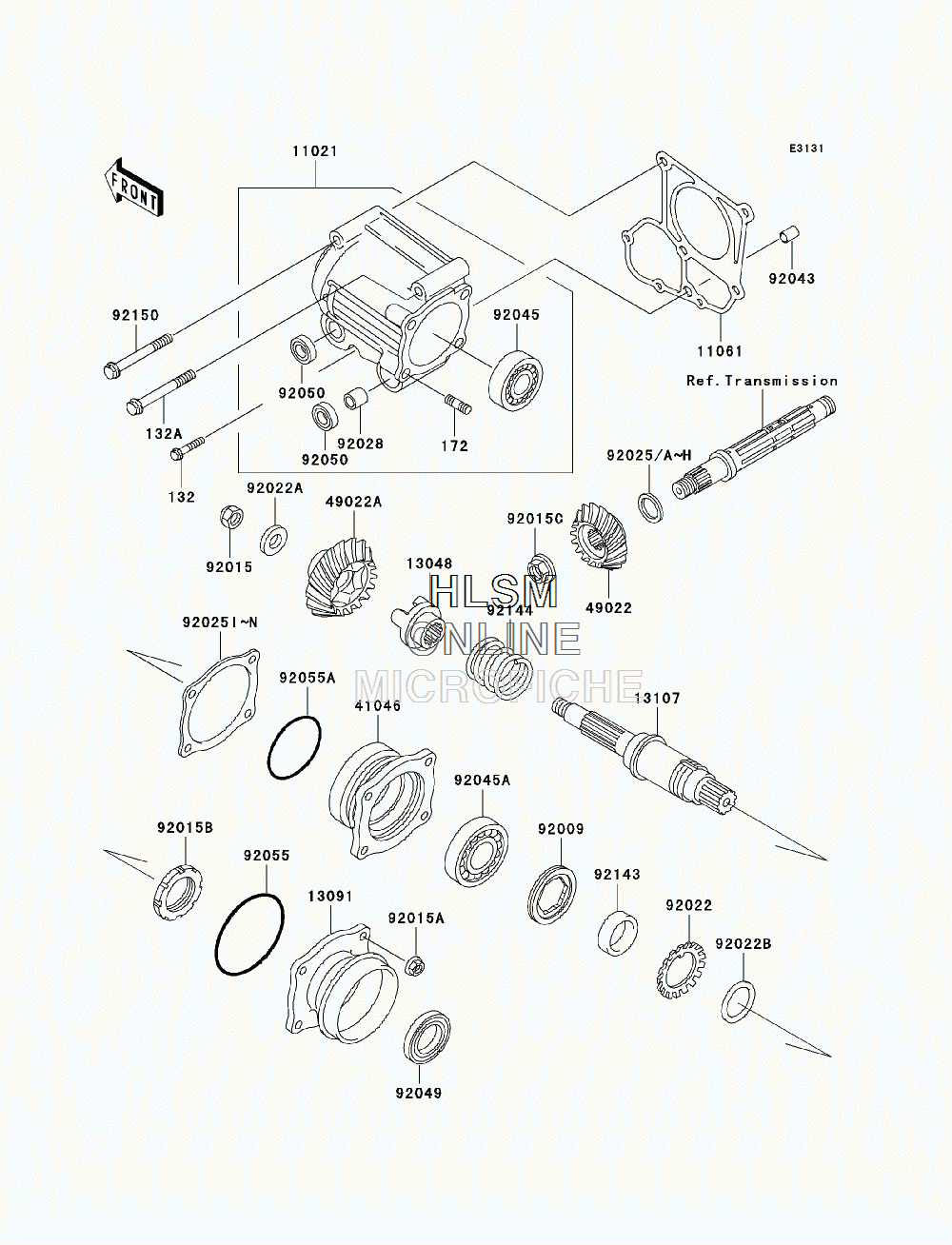

FRONT BEVEL GEAR для Kawasaki BAYOU 250 (KLF250A7F) - 2007 года выпуска
-
№АртикулНазвание
-
1102111021-1117 CASE-ASSY, FRONT BEVELCASE-ASSY, FRONT BEVEL
-
1106111061-0293 GASKET, GEAR CASEGASKET, GEAR CASE
-
1304813048-1070 CAM-DAMPERCAM-DAMPER
-
1309113091-1487 HOLDER, GEAR CASEHOLDER, GEAR CASE
-
1310713107-1210 SHAFT, FRONT BEVELSHAFT, FRONT BEVEL
-
4104641046-1083 HOUSING-BEARINGHOUSING-BEARING
-
4902249022-1095 GEAR-BEVEL, 15TGEAR-BEVEL, 15T
-
49022A49022-1096 GEAR-BEVEL, 18TGEAR-BEVEL, 18T
-
9200992009-1474 SCREW, 58MMSCREW, 58MM
-
9201592015-1190 NUT, LOCK, 12MM, (BLACK)NUT, LOCK, 12MM, (BLACK)
-
92015A92015-1402 NUT, 8MMNUT, 8MM
-
92015B92015-1511 NUT, PUMP GEAR, 30MMNUT, PUMP GEAR, 30MM
-
92015C92015-1581 NUT, 16MMNUT, 16MM
-
9202292022-1882 WASHERWASHER
-
92022A92022-1890 WASHER, 12X24X2.3WASHER, 12X24X2.3
-
92022B92022-1987 WASHER, 30.3X38X0.5WASHER, 30.3X38X0.5
-
9202592025-1533 SHIM, 20.3X28X1.3SHIM, 20.3X28X1.3
-
92025A92025-1534 SHIM, 20.3X28X0.7SHIM, 20.3X28X0.7
-
92025B92025-1535 SHIM, 20.3X28X0.8SHIM, 20.3X28X0.8
-
92025C92025-1536 SHIM, 20.3X28X0.9SHIM, 20.3X28X0.9
-
92025D92025-1537 SHIM, 20.3X28X1.0SHIM, 20.3X28X1.0
-
92025E92025-1538 SHIM, 20.3X28X1.2SHIM, 20.3X28X1.2
-
92025F92025-1573 SHIM, 20.3X28X0.15SHIM, 20.3X28X0.15
-
92025G92025-1574 SHIM, 20.3X28X0.20SHIM, 20.3X28X0.20
-
92025H92025-1575 SHIM, 20.3X28X1.1SHIM, 20.3X28X1.1
-
92025I92025-1858 SHIM, T=1.00SHIM, T=1.00
-
92025J92025-1859 SHIM, T=0.10SHIM, T=0.10
-
92025K92025-1860 SHIM, T=0.15SHIM, T=0.15
-
92025L92025-1861 SHIM, T=0.50SHIM, T=0.50
-
92025M92025-1862 SHIM, T=0.80SHIM, T=0.80
-
92025N92025-1863 SHIM, T=1.20SHIM, T=1.20
-
9202892028-1347 BUSHINGBUSHING
-
9204392043-1264 PIN, 8.2X10X14PIN, 8.2X10X14
-
9204592045-0092 BEARING-BALL, 6205CMBEARING-BALL, 6205CM
-
92045A92045-1201 BEARING-BALL, 6006CMBEARING-BALL, 6006CM
-
9204992049-1288 SEAL-OILSEAL-OIL
-
9205092050-082 SEAL-OILSEAL-OIL
-
9205592055-1287 RING-O, 66.5MMRING-O, 66.5MM
-
92055A92055-1294 RING-O, 63.6X2.4RING-O, 63.6X2.4
-
9214392143-1121 COLLARCOLLAR
-
9214492144-1161 SPRINGSPRING
-
9215092150-1108 BOLTBOLT
-
132132BB0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
132A132BB0870 BOLT-FLANGED-SMALL, 8X70BOLT-FLANGED-SMALL, 8X70
-
172172BA0825 BOLT-STUD, 8X25BOLT-STUD, 8X25
