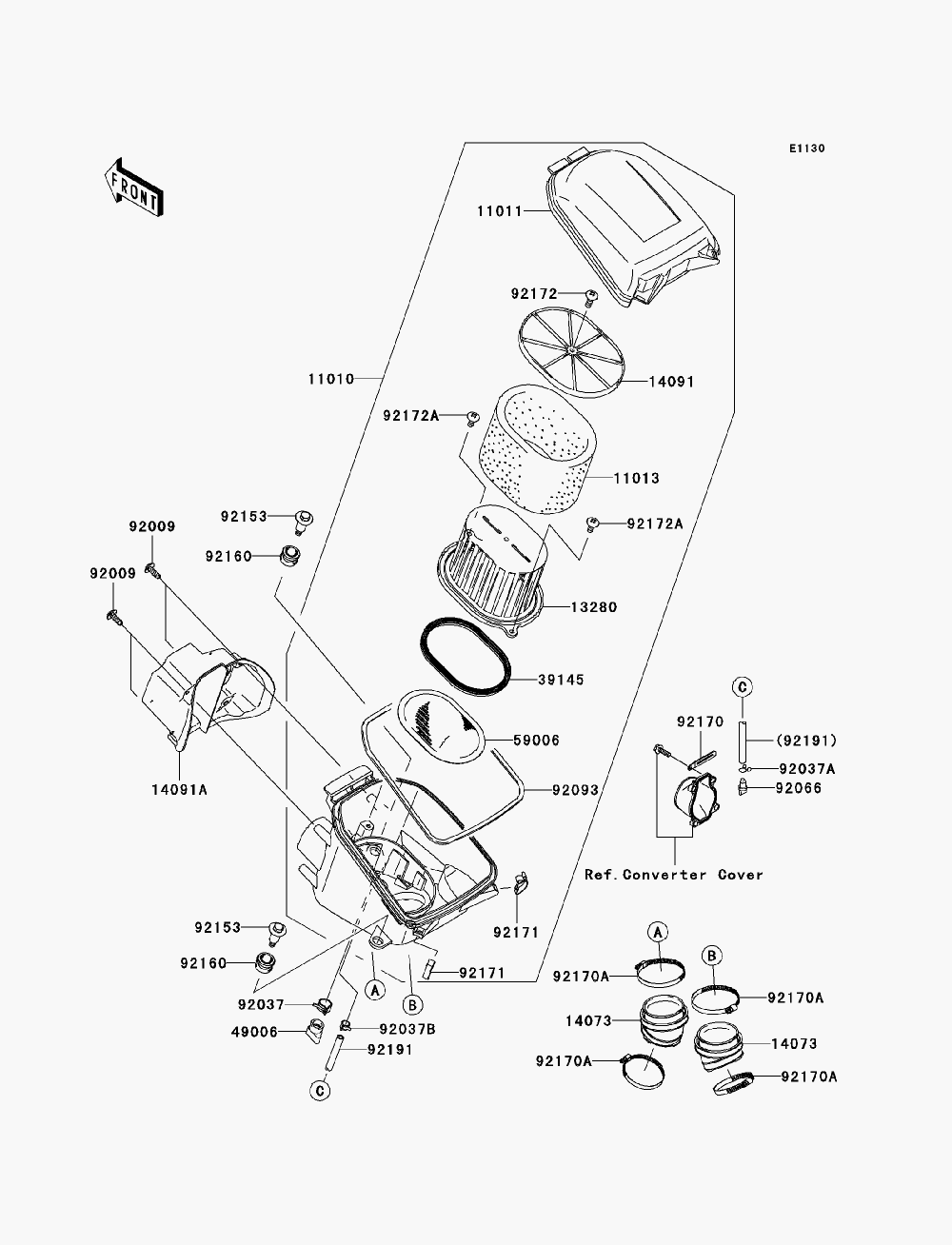

AIR CLEANER для Kawasaki BRUTE FORCE 750 4X4I (KVF750B7F) - 2007 года выпуска
-
№АртикулНазвание
-
1101011010-0023-6Z FILTER-ASSY-AIR,F.BLACKFILTER-ASSY-AIR,F.BLACK
-
1101111011-0017-6Z CASE-AIR FILTER,UPP,F.BLACKCASE-AIR FILTER,UPP,F.BLACK
-
1101311013-0007 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1328013280-0048 HOLDERHOLDER
-
1407314073-0030 DUCT,JOINTDUCT,JOINT
-
1409114091-0163 COVER,ELEMENTCOVER,ELEMENT
-
14091A14091-0164 COVER, FRONTCOVER, FRONT
-
3914539145-0001 TRIM-SEALTRIM-SEAL
-
4900649006-1292 BOOTBOOT
-
5900659006-0002 AREARESTER-FLAMEAREARESTER-FLAME
-
9200992009-1113 SCREW,TAPPINGSCREW,TAPPING
-
9203792037-1460 CLAMP,HOSE CLIPCLAMP,HOSE CLIP
-
92037A92037-147 CLAMP,TUBECLAMP,TUBE
-
92037B92037-1505 CLAMP,TUBECLAMP,TUBE
-
9206692066-1211 PLUG,DRAINPLUG,DRAIN
-
9209392093-0017 SEALSEAL
-
9215392153-1052 BOLT,FLANGED,6X28.7BOLT,FLANGED,6X28.7
-
9216092160-1594 DAMPERDAMPER
-
9217092170-1514 CLAMPCLAMP
-
92170A92170-1763 CLAMPCLAMP
-
9217192171-0225 CLAMPCLAMP
-
9217292172-0130 SCREW,6X18SCREW,6X18
-
92172A92172-0131 SCREW,6X14SCREW,6X14
-
9219192191-1531 TUBE,7X11X470TUBE,7X11X470
