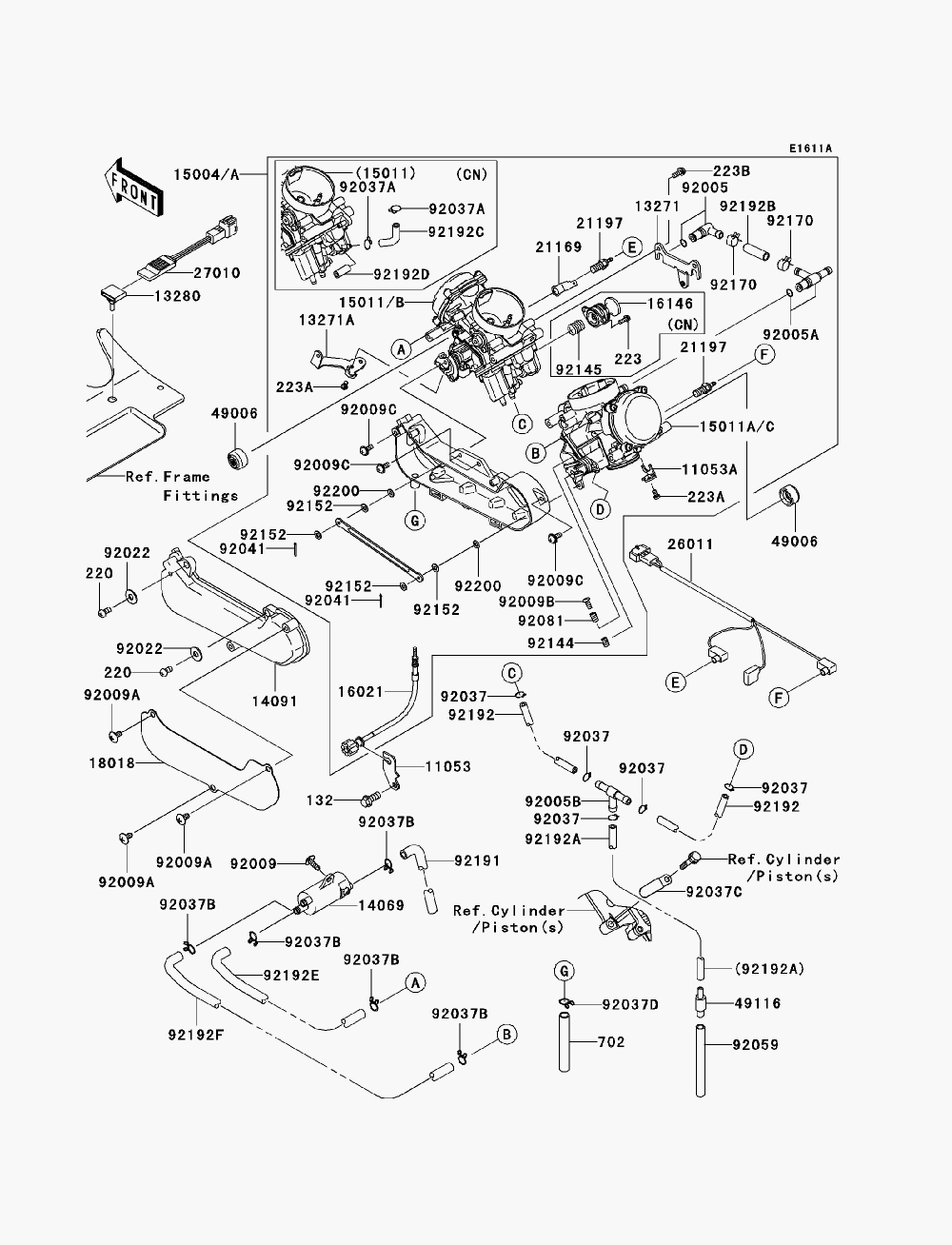

CARBURETOR для Kawasaki BRUTE FORCE 750 4X4I (KVF750B7F) - 2007 года выпуска
-
№АртикулНазвание
-
1105311053-1299 BRACKETBRACKET
-
11053A11053-1606 BRACKETBRACKET
-
1327113271-0750 PLATEPLATE
-
13271A13271-0751 PLATEPLATE
-
1328013280-1253 HOLDER,CARBURETORHOLDER,CARBURETOR
-
1406914069-0002 BREATHERBREATHER
-
1409114091-0360 COVERCOVER
-
1500415004-0005 CARBURETOR-ASSY,CVKR34 (USA ONLY)CARBURETOR-ASSY,CVKR34 (USA ONLY)
-
15004A15004-0006 CARBURETOR-ASSY,CVKR34 (CANADA ONLY)CARBURETOR-ASSY,CVKR34 (CANADA ONLY)
-
1501115011-0090 CARBURETOR, FRONT (CANADA ONLY)CARBURETOR, FRONT (CANADA ONLY)
-
15011A15011-0091 CARBURETOR, REAR (CANADA ONLY)CARBURETOR, REAR (CANADA ONLY)
-
15011B15011-0096 CARBURETOR, FRONT (USA ONLY)CARBURETOR, FRONT (USA ONLY)
-
15011C15011-0097 CARBURETOR, REAR (USA ONLY)CARBURETOR, REAR (USA ONLY)
-
1602116021-0011 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1614616146-1225 COVER-ASSY,PRIMING (CANADA ONLY)COVER-ASSY,PRIMING (CANADA ONLY)
-
1801818018-0004 PLATE-HEAT GUARDPLATE-HEAT GUARD
-
2116921169-0001 TERMINALTERMINAL
-
2119721197-1006 HEATERHEATER
-
2601126011-0030 WIRE-LEADWIRE-LEAD
-
2701027010-0013 SWITCHSWITCH
-
4900649006-1353 BOOT,STARTER CABLEBOOT,STARTER CABLE
-
4911649116-1126 VALVE-ASSYVALVE-ASSY
-
9200592005-0029 FITTINGFITTING
-
92005A92005-0030 FITTINGFITTING
-
92005B92005-1017 FITTING,TUBE,T-TYPEFITTING,TUBE,T-TYPE
-
9200992009-1113 SCREW,TAPPINGSCREW,TAPPING
-
92009A92009-1480 SCREW,6X12SCREW,6X12
-
92009B92009-1858 SCREW,SYNCHRONIZESCREW,SYNCHRONIZE
-
92009C92009-1878 SCREWSCREW
-
9202292022-1380 WASHER,5.2X13X1WASHER,5.2X13X1
-
9203792037-010 CLAMP,TUBECLAMP,TUBE
-
92037A92037-1201 CLAMP,TUBE (CANADA ONLY)CLAMP,TUBE (CANADA ONLY)
-
92037B92037-147 CLAMP,TUBECLAMP,TUBE
-
132132Y0614 BOLT-FLANGED-SMALL,6X14BOLT-FLANGED-SMALL,6X14
-
220220B0408 SCREW-PAN-CROS,4X8SCREW-PAN-CROS,4X8
-
223223C0412 SCREW-PAN-WS-CROS,4X12 (CANADA ONLY)SCREW-PAN-WS-CROS,4X12 (CANADA ONLY)
-
223A223D0408 SCREW-PAN-WS-CROS,4X8SCREW-PAN-WS-CROS,4X8
-
223B223D0514 SCREW-PAN-WS-CROS,5X14SCREW-PAN-WS-CROS,5X14
-
702702A09080 TUBE-RUBBERTUBE-RUBBER
-
92037C92037-1539 CLAMP,L=45CLAMP,L=45
-
92037D92037-1972 CLAMP,TUBECLAMP,TUBE
-
9204192041-1061 COTTERCOTTER
-
9205992059-1736 TUBE,7X10X100TUBE,7X10X100
-
9208192081-1620 SPRINGSPRING
-
9214492144-1451 SPRINGSPRING
-
9214592145-1451 SPRING,PRIMING (CANADA ONLY)SPRING,PRIMING (CANADA ONLY)
-
9215292152-0268 COLLARCOLLAR
-
9217092170-1051 CLAMP,TUBECLAMP,TUBE
-
9219192191-1531 TUBE,7X11X470TUBE,7X11X470
-
9219292192-0141 TUBE,4.5X8X120TUBE,4.5X8X120
-
92192A92192-0142 TUBE,4.5X8X370TUBE,4.5X8X370
-
92192B92192-0187 TUBE,7.3X12.5X45TUBE,7.3X12.5X45
-
92192C92192-0188 TUBE,4.5X8.5X40 (CANADA ONLY)TUBE,4.5X8.5X40 (CANADA ONLY)
-
92192D92192-0189 TUBE,4.5X8.5X20 (CANADA ONLY)TUBE,4.5X8.5X20 (CANADA ONLY)
-
92192E92192-0276 TUBE,AIR-VENT, FRONTTUBE,AIR-VENT, FRONT
-
92192F92192-0277 TUBE,AIR-VENT, REARTUBE,AIR-VENT, REAR
-
9220092200-1432 WASHER,LINK ARM,PLASTICWASHER,LINK ARM,PLASTIC
