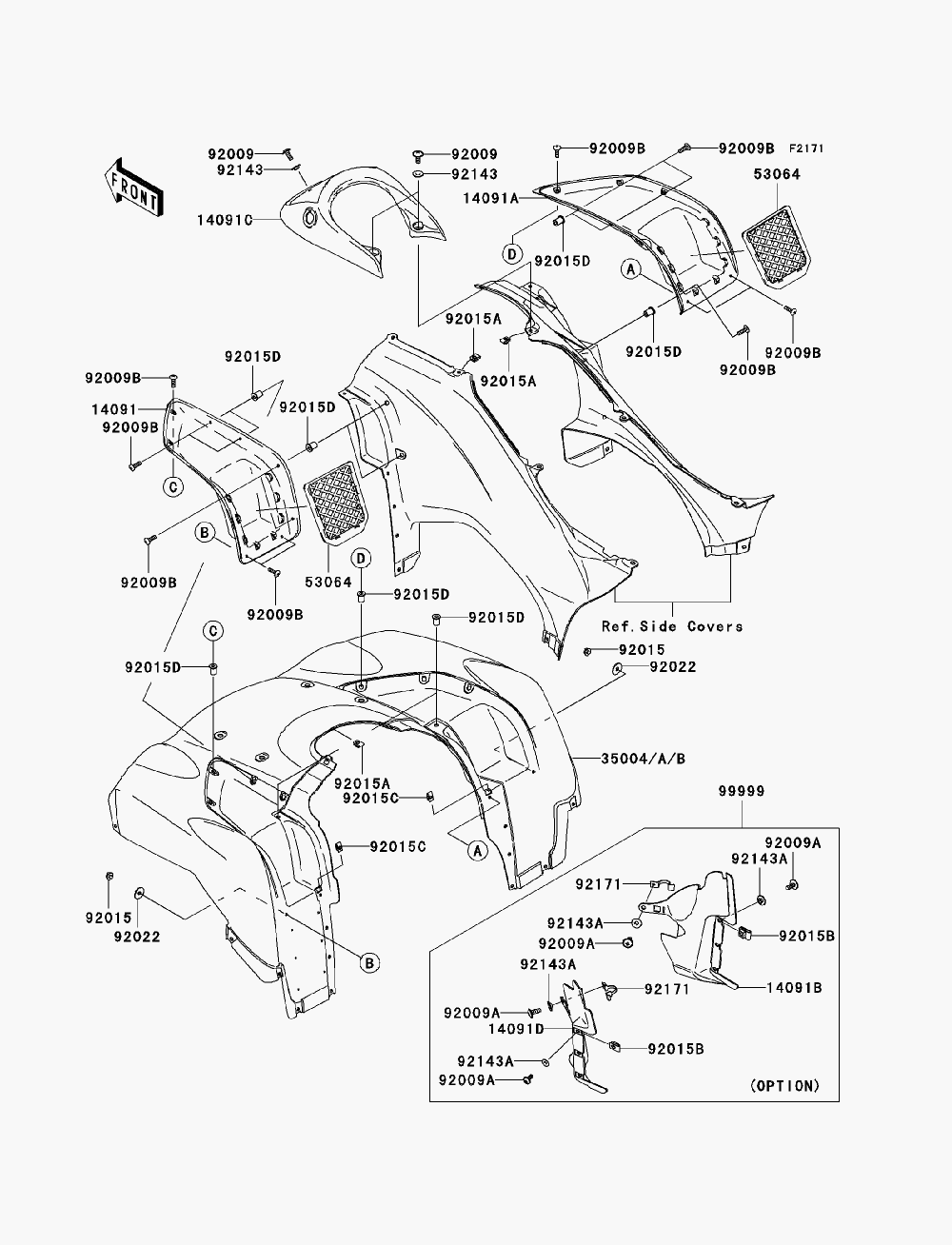

FENDER - FRONT для Kawasaki BRUTE FORCE 750 4X4I (KVF750B7FA) - 2007 года выпуска
-
№АртикулНазвание
-
1409114091-0135-6Z COVER,POCKET, LEFT HAND,F.BLACKCOVER,POCKET, LEFT HAND,F.BLACK
-
14091A14091-0136-6Z COVER,POCKET, RIGHT HAND,F.BLACKCOVER,POCKET, RIGHT HAND,F.BLACK
-
14091B14091-0179 COVER,SIDE,INNER, RIGHT HAND (OPTION)COVER,SIDE,INNER, RIGHT HAND (OPTION)
-
14091C14091-0270-6Z COVER,TOP,F.BLACKCOVER,TOP,F.BLACK
-
14091D14091-0337 COVER,SIDE,INNER, LEFT HAND (OPTION)COVER,SIDE,INNER, LEFT HAND (OPTION)
-
3500435004-0038-16D FENDER-FRONT,CAMOUFLAGEFENDER-FRONT,CAMOUFLAGE
-
5306453064-0002 NET-CARGONET-CARGO
-
9200992009-1621 SCREW,6X16SCREW,6X16
-
92009A92009-1621 SCREW,6X16 (OPTION)SCREW,6X16 (OPTION)
-
92009B92009-1655 SCREW,5X18SCREW,5X18
-
9201592015-1259 NUT,FLANGED,5MMNUT,FLANGED,5MM
-
92015A92015-1602 NUT,6MMNUT,6MM
-
92015B92015-1602 NUT,6MM (OPTION)NUT,6MM (OPTION)
-
92015C92015-1710 NUT,5MMNUT,5MM
-
92015D92015-1757 NUT,WELL,5MMNUT,WELL,5MM
-
9202292022-1581 WASHER,5.5X20X1.2WASHER,5.5X20X1.2
-
9214392143-1087 COLLARCOLLAR
-
92143A92143-1087 COLLAR (OPTION)COLLAR (OPTION)
-
9217192171-0223 CLAMP (OPTION)CLAMP (OPTION)
-
9999999999-0055 INNER FENDER KIT (OPTION)INNER FENDER KIT (OPTION)
