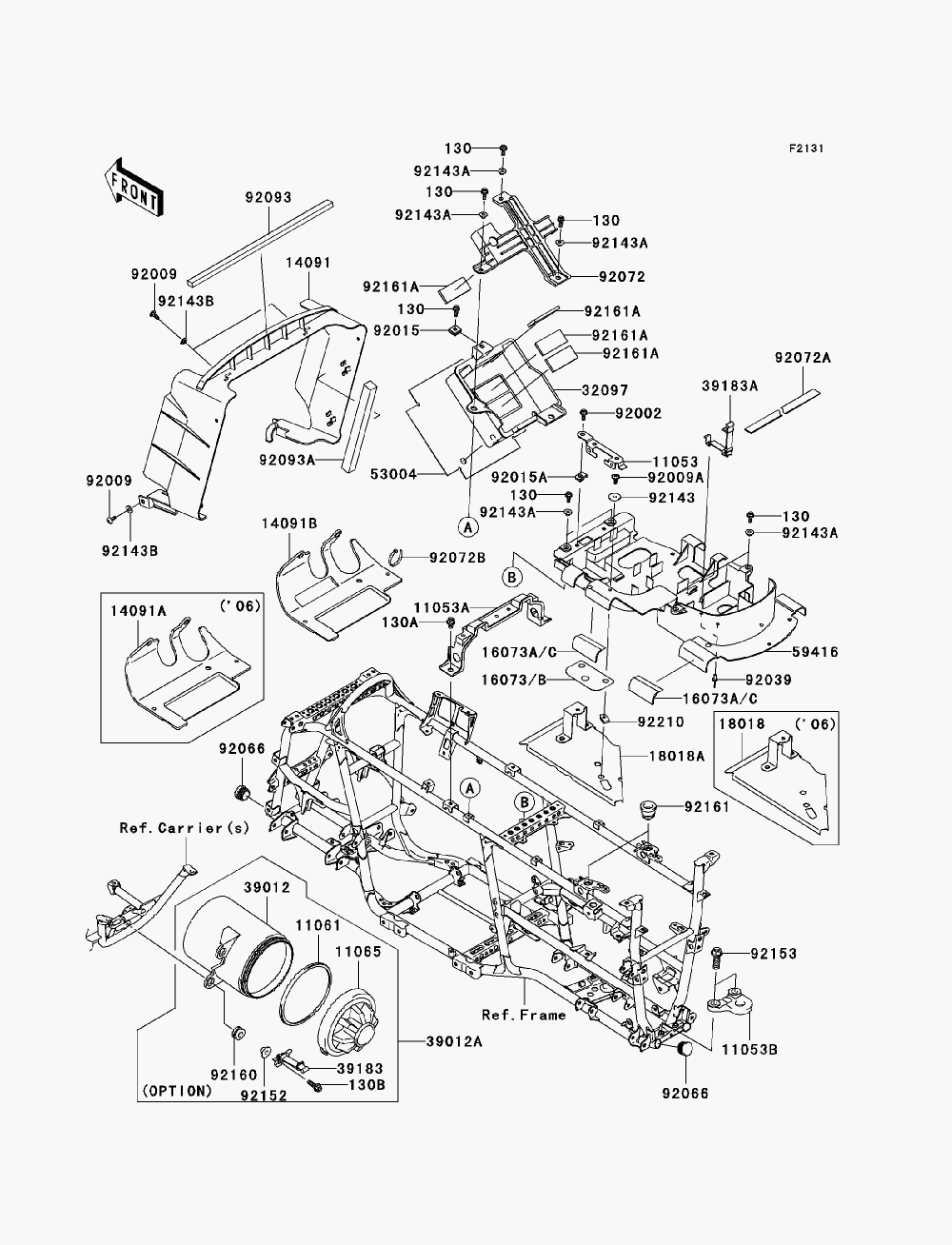

FRAME FITTINGS для Kawasaki BRUTE FORCE 750 4X4I (KVF750B7FA) - 2007 года выпуска
-
№АртикулНазвание
-
1105311053-0937 BRACKET,FUSE ASSYBRACKET,FUSE ASSY
-
11053A11053-0969 BRACKET,SEAT & BATTERY BANDBRACKET,SEAT & BATTERY BAND
-
11053B11053-1638 BRACKET,TRAILER HITCHBRACKET,TRAILER HITCH
-
1106111061-0072 GASKET,TOOL CASE (OPTION)GASKET,TOOL CASE (OPTION)
-
1106511065-0088 CAP,TOOL CASE (OPTION)CAP,TOOL CASE (OPTION)
-
1409114091-0338 COVER,RADIATORCOVER,RADIATOR
-
14091B14091-0540 COVER,AIR CLEANERCOVER,AIR CLEANER
-
16073B16073-0035 INSULATOR,ELECTRIC CASEINSULATOR,ELECTRIC CASE
-
16073C16073-0036 INSULATOR,ELECTRIC CASEINSULATOR,ELECTRIC CASE
-
18018A18018-0009 PLATE-HEAT GUARDPLATE-HEAT GUARD
-
3209732097-0009 CASE-BATTERYCASE-BATTERY
-
3901239012-0005 CASE-STORAGE (OPTION)CASE-STORAGE (OPTION)
-
39012A39012-5013 CASE-STORAGE,ASSY (OPTION)CASE-STORAGE,ASSY (OPTION)
-
3918339183-0003 BAND-ASSY,TOOL BAG (OPTION)BAND-ASSY,TOOL BAG (OPTION)
-
39183A39183-1065 BAND-ASSY,TOOL BAGBAND-ASSY,TOOL BAG
-
5300453004-0002 MAT,BATTERY CASEMAT,BATTERY CASE
-
5941659416-0004 CASE-ELECTRICCASE-ELECTRIC
-
9200292002-1571 BOLT,6X16BOLT,6X16
-
9200992009-1166 SCREW,TAPPING,6X16SCREW,TAPPING,6X16
-
92009A92009-1621 SCREW,6X16SCREW,6X16
-
9201592015-1094 NUT,6MMNUT,6MM
-
92015A92015-1602 NUT,6MMNUT,6MM
-
9203992039-3719 RIVET,4.8MMRIVET,4.8MM
-
9206692066-0036 PLUGPLUG
-
9207292072-0033 BAND,BATTERYBAND,BATTERY
-
92072A92072-0040 BAND,MAGIC TAPEBAND,MAGIC TAPE
-
92072B92072-1239 BAND,L=188BAND,L=188
-
9209392093-0024 SEAL,L=408SEAL,L=408
-
92093A92093-0028 SEAL,L=250SEAL,L=250
