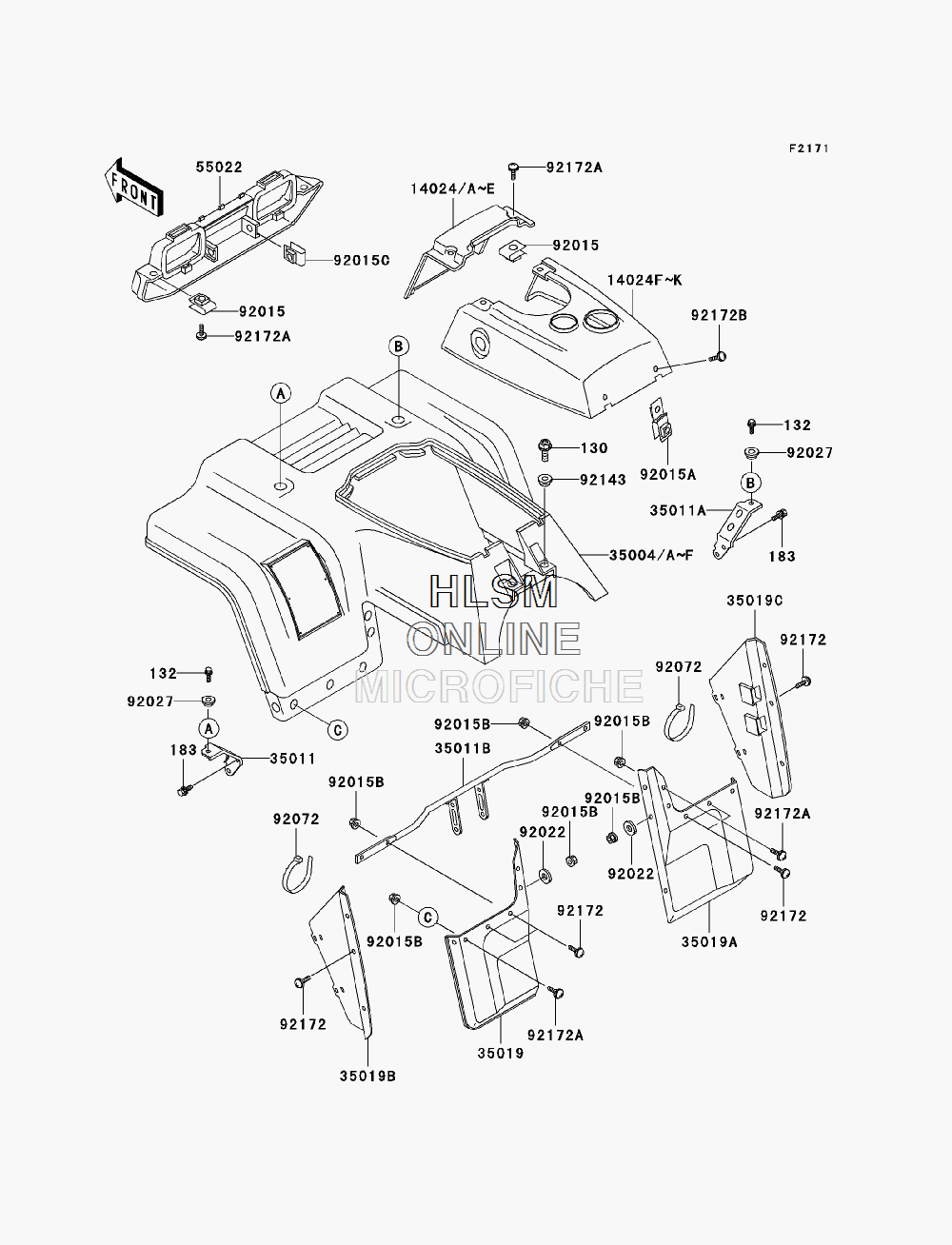

FENDER - FRONT для Kawasaki BAYOU 250 (KLF250A8F) - 2008 года выпуска
-
№АртикулНазвание
-
130130AB0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
132132BB0820 BOLT-FLANGED-SMALL, 8X20BOLT-FLANGED-SMALL, 8X20
-
14024A14024-1475-286 COVER, FRONT FENDER, FRONT, (W.GREEN) (FOR 286)COVER, FRONT FENDER, FRONT, (W.GREEN) (FOR 286)
-
14024C14024-1475-6B COVER, FRONT FENDER, FRONT, (S.RED) (FOR 6B)COVER, FRONT FENDER, FRONT, (S.RED) (FOR 6B)
-
14024E14024-1475-6F COVER, FRONT FENDER, FRONT, (P.WHITE) (FOR 6F)COVER, FRONT FENDER, FRONT, (P.WHITE) (FOR 6F)
-
14024G14024-1476-286 COVER, FRONT FENDER, REAR, (W.GREEN) (FOR 286)COVER, FRONT FENDER, REAR, (W.GREEN) (FOR 286)
-
14024I14024-1476-6B COVER, FRONT FENDER, REAR, (S.RED) (FOR 6B)COVER, FRONT FENDER, REAR, (S.RED) (FOR 6B)
-
14024K14024-1476-6F COVER, FRONT FENDER, REAR, (P.WHITE) (FOR 6F)COVER, FRONT FENDER, REAR, (P.WHITE) (FOR 6F)
-
35004C35004-1380-286 FENDER-FRONT, (W.GREEN) (FOR 286)FENDER-FRONT, (W.GREEN) (FOR 286)
-
35004E35004-1380-6B FENDER-FRONT, (S.RED) (FOR 6B)FENDER-FRONT, (S.RED) (FOR 6B)
-
35004F35004-1380-6F FENDER-FRONT, (P.WHITE) (FOR 6F)FENDER-FRONT, (P.WHITE) (FOR 6F)
-
3501135011-1361 STAY, FRONT FENDER, LEFT HANDSTAY, FRONT FENDER, LEFT HAND
-
35011A35011-1362 STAY, FRONT FENDER, RIGHT HANDSTAY, FRONT FENDER, RIGHT HAND
-
35011B35011-1368 STAY, FRONT FLAPSTAY, FRONT FLAP
-
3501935019-1195 FLAP, FRONT, LEFT HANDFLAP, FRONT, LEFT HAND
-
35019A35019-1196 FLAP, FRONT, RIGHT HANDFLAP, FRONT, RIGHT HAND
-
35019B35019-1197 FLAP, FRONT, INSIDE, LEFT HANDFLAP, FRONT, INSIDE, LEFT HAND
-
35019C35019-1198 FLAP, FRONT, INSIDE, RIGHT HANDFLAP, FRONT, INSIDE, RIGHT HAND
-
5502255022-1060-6D COVER-HEAD LAMP, (BLACK)COVER-HEAD LAMP, (BLACK)
-
9201592015-1094 NUT, 6MMNUT, 6MM
-
92015A92015-1667 NUT, PLATENUT, PLATE
-
92015B92015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
92015C92015-1691 NUT, CLIP, 8MMNUT, CLIP, 8MM
-
9202292022-1804 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
9202792027-1908 COLLARCOLLAR
-
9207292072-1239 BAND, L=188BAND, L=188
-
9214392143-1025 COLLAR, L=6.5COLLAR, L=6.5
-
9217292172-0002 SCREW, 6X18SCREW, 6X18
-
92172A92172-0004 SCREW, 6X14SCREW, 6X14
-
92172B92172-0005 SCREW, 6X10SCREW, 6X10
-
183183BB0814 BOLT-UPSET-WS-SMALL, 8X14BOLT-UPSET-WS-SMALL, 8X14
