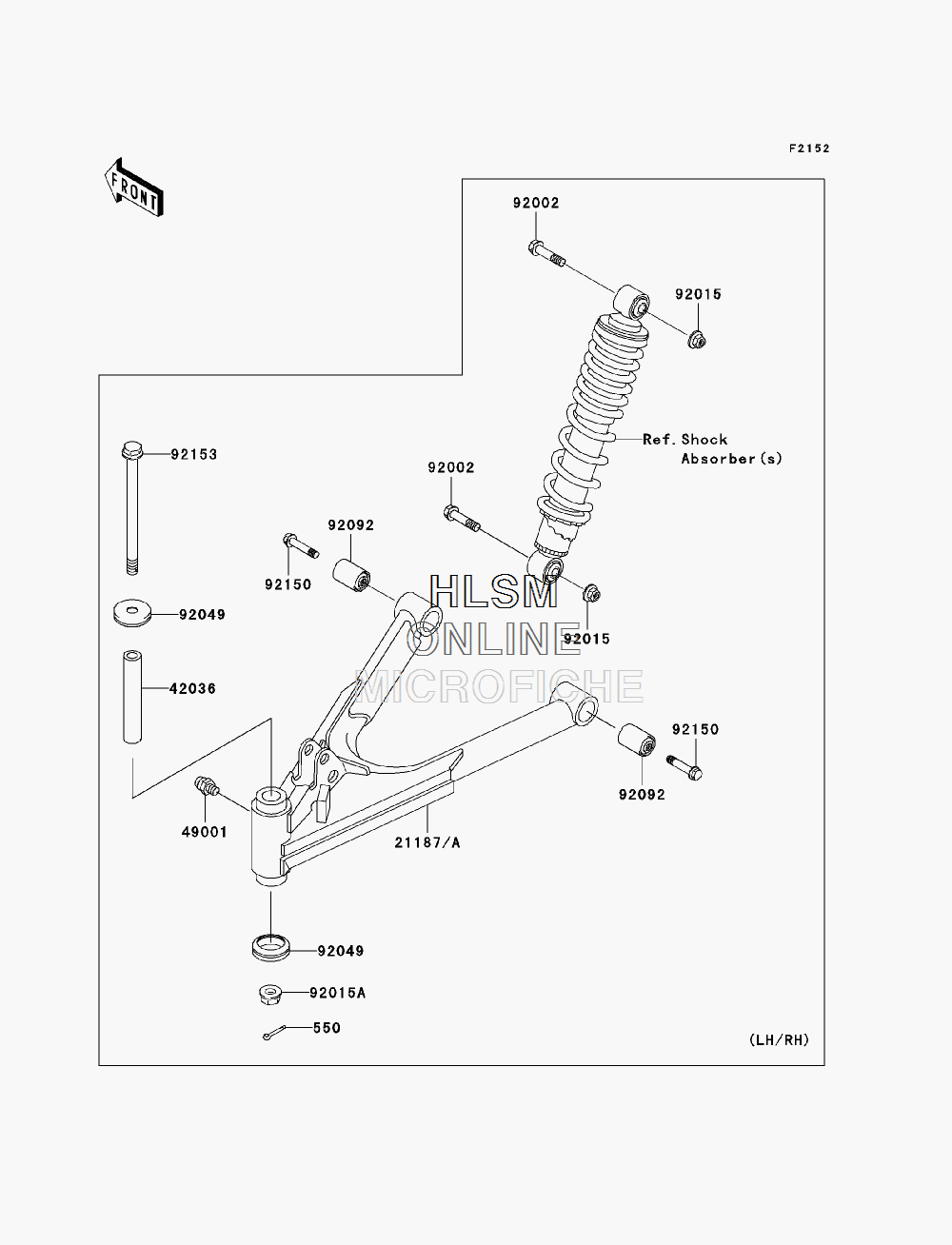

SUSPENSION - FRONT для Kawasaki BAYOU 250 (KLF250A8F) - 2008 года выпуска
-
№АртикулНазвание
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
2118721187-1065 ARM-ASSY, SUSPENSION, FRONT, LEFT HANDARM-ASSY, SUSPENSION, FRONT, LEFT HAND
-
21187A21187-1066 ARM-ASSY, SUSPENSION, FRONT, RIGHT HANDARM-ASSY, SUSPENSION, FRONT, RIGHT HAND
-
4203642036-1141 SLEEVE, KNUCKLE, L=99.6SLEEVE, KNUCKLE, L=99.6
-
4900149001-0001 NIPPLE-GREASENIPPLE-GREASE
-
9200292002-1545 BOLT, FLANGED, 10X42BOLT, FLANGED, 10X42
-
9201592015-1597 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
92015A92015-1717 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
9204992049-1285 SEAL-OILSEAL-OIL
-
9209292092-005 BUSHING-RUBBERBUSHING-RUBBER
-
9215092150-1022 BOLT, FLANGED, 12X58BOLT, FLANGED, 12X58
-
9215392153-1169 BOLT, FLANGED, 10X142BOLT, FLANGED, 10X142
