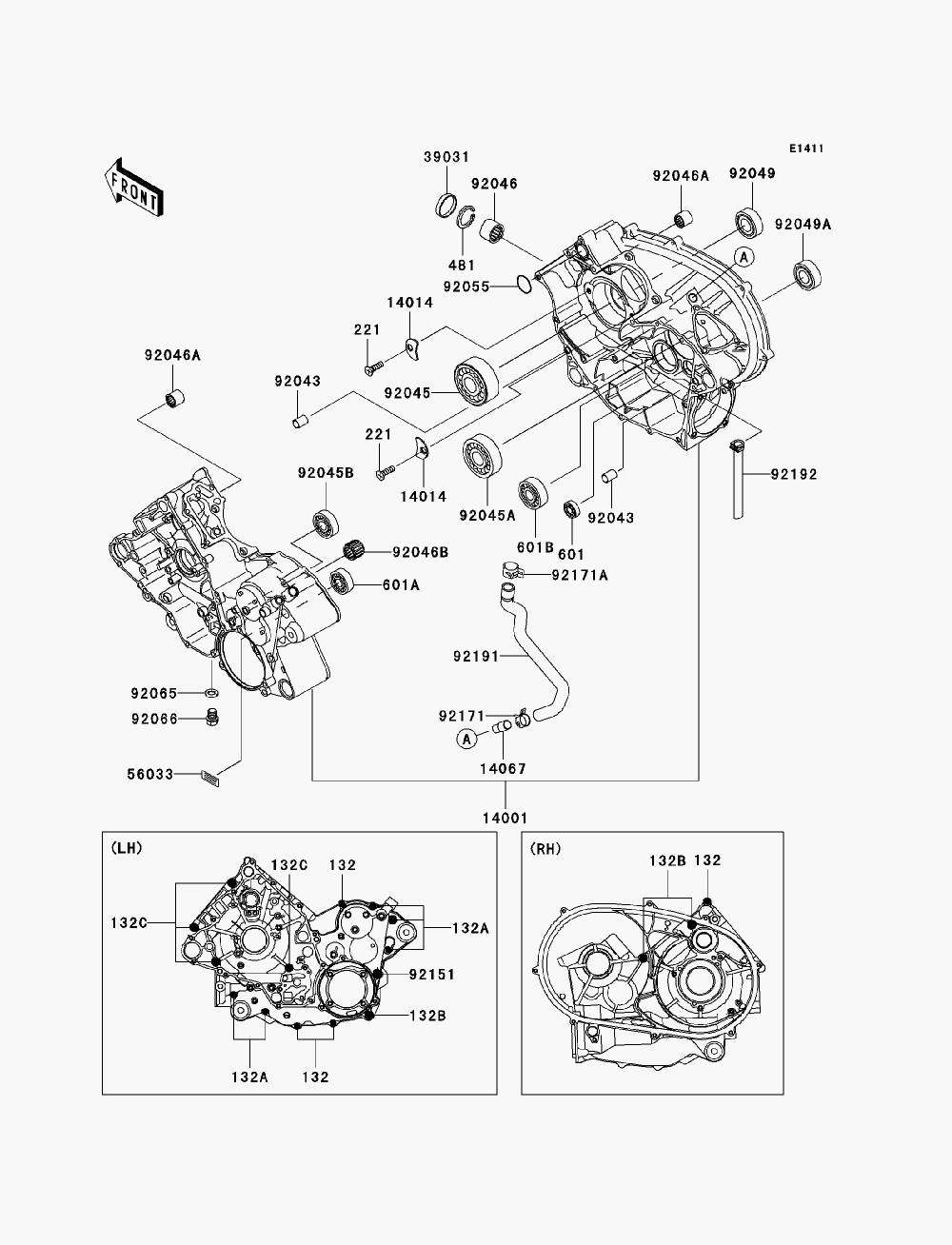

CRANKCASE для Kawasaki KFX700 (KSV700B8F) - 2008 года выпуска
-
№АртикулНазвание
-
132132BD0640 BOLT-FLANGED-SMALL,6X40BOLT-FLANGED-SMALL,6X40
-
132A132BD0665 BOLT-FLANGED-SMALL,6X65BOLT-FLANGED-SMALL,6X65
-
132B132BD08110 BOLT-FLANGED-SMALL,8X110BOLT-FLANGED-SMALL,8X110
-
132C132BD0875 BOLT-FLANGED-SMALL,8X75BOLT-FLANGED-SMALL,8X75
-
221221AA0616 SCREW-CSK-CROS,6X16SCREW-CSK-CROS,6X16
-
481481J3700 CIRCLIP-TYPE-C,37MMCIRCLIP-TYPE-C,37MM
-
601601A6000 BEARING-BALLBEARING-BALL
-
601A601A6004 BEARING-BALL,#6004BEARING-BALL,#6004
-
601B601A6304 BEARING-BALL,#6304BEARING-BALL,#6304
-
1400114001-0044 SET-CRANKCASESET-CRANKCASE
-
1401414014-0006 PLATE-POSITIONPLATE-POSITION
-
1406714067-006 FITTING,BREATHERFITTING,BREATHER
-
3903139031-1070 CAP-ENDCAP-END
-
5603356033-0021 LABEL-MANUAL,OIL LEVELLABEL-MANUAL,OIL LEVEL
-
9204392043-1506 PIN,10X14PIN,10X14
-
9204592045-0012 BEARING-BALL,5208X2-A-ECG45BEARING-BALL,5208X2-A-ECG45
-
92045A92045-1190 BEARING-BALL,6306SH2BEARING-BALL,6306SH2
-
92045B92045-1389 BEARING-BALL,6303LUABEARING-BALL,6303LUA
-
9204692046-0022 BEARING-NEEDLEBEARING-NEEDLE
-
92046A92046-1118 BEARING-NEEDLE,TA202715ZEBEARING-NEEDLE,TA202715ZE
-
92046B92046-1143 BEARING-NEEDLEBEARING-NEEDLE
-
9204992049-1452 SEAL-OIL,TC 35X50X8SEAL-OIL,TC 35X50X8
-
92049A92049-1575 SEAL-OIL,HTC 30X45X8SEAL-OIL,HTC 30X45X8
-
9205592055-1136 RING-O,25.7X2.4RING-O,25.7X2.4
-
9206592065-097 GASKET,12X22X2GASKET,12X22X2
-
9206692066-1174 PLUG,OIL DRAIN,12X15PLUG,OIL DRAIN,12X15
-
9215192151-1689 BOLT,8X110BOLT,8X110
-
9217192171-0329 CLAMPCLAMP
-
92171A92171-0514 CLAMPCLAMP
-
9219192191-1740 TUBE,BREATHERTUBE,BREATHER
-
9219292192-0057 TUBE,OIL RETURNTUBE,OIL RETURN
