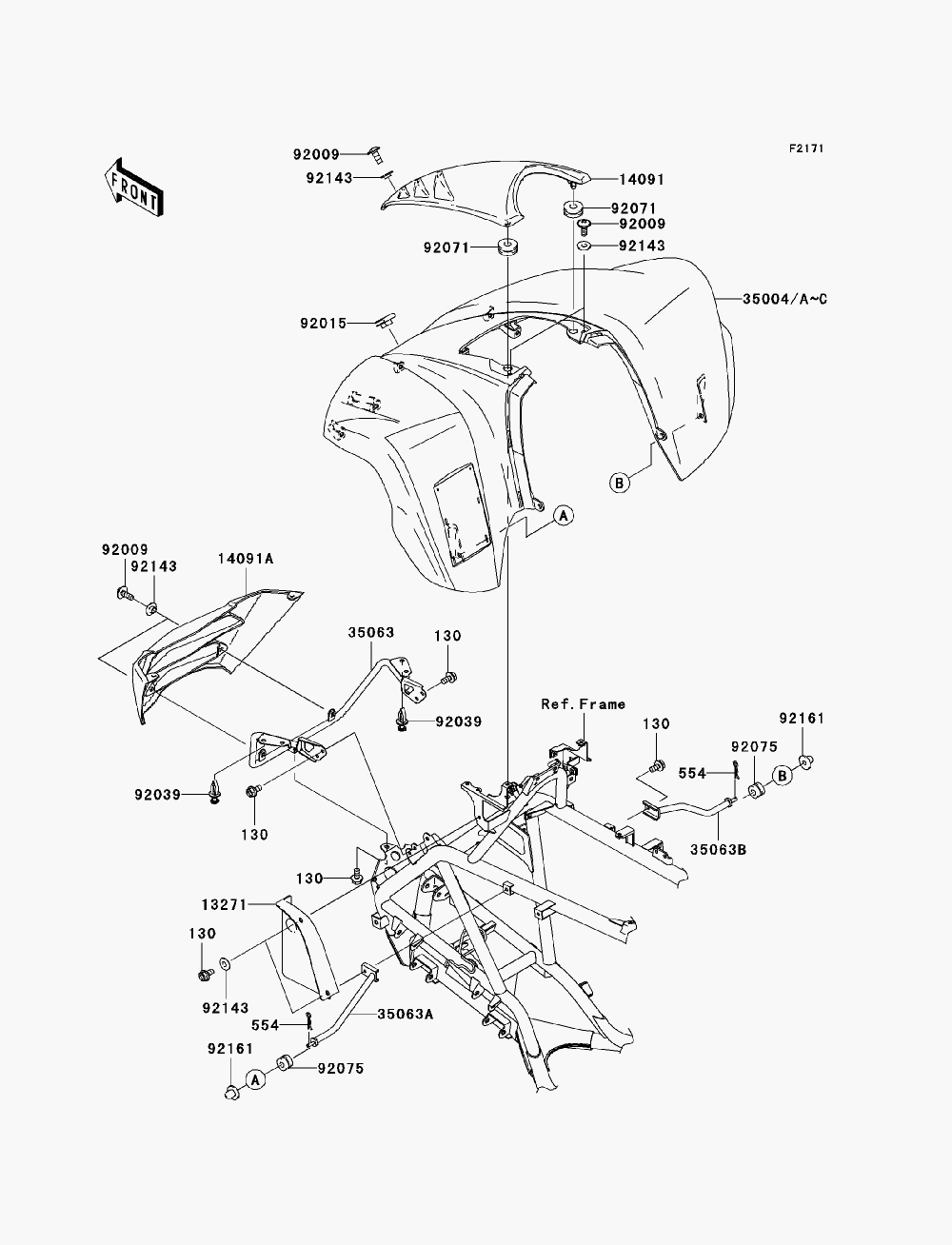

FENDER - FRONT для Kawasaki KFX700 (KSV700B8F) - 2008 года выпуска
-
№АртикулНазвание
-
130130BB0612 BOLT-FLANGED,6X12BOLT-FLANGED,6X12
-
554554DA0600 PIN-SNAPPIN-SNAP
-
1327113271-0058 PLATE, FRONT FENDERPLATE, FRONT FENDER
-
1409114091-1511-6D COVER,MAINTENANCE,BLACKCOVER,MAINTENANCE,BLACK
-
14091A14091-1524-6Z COVER, FRONT GRILL,F.BLACKCOVER, FRONT GRILL,F.BLACK
-
35004A35004-0027-16K FENDER-FRONT,BASE WHITEFENDER-FRONT,BASE WHITE
-
3506335063-0067 STAY, FRONT GRILLSTAY, FRONT GRILL
-
35063A35063-0139 STAY, FRONT FENDER, LEFT HANDSTAY, FRONT FENDER, LEFT HAND
-
35063B35063-0140 STAY, FRONT FENDER, RIGHT HANDSTAY, FRONT FENDER, RIGHT HAND
-
9200992009-1621 SCREW,6X16SCREW,6X16
-
9201592015-1678 NUT,CLAMP,6MMNUT,CLAMP,6MM
-
9203992039-1229 RIVETRIVET
-
9207192071-1131 GROMMETGROMMET
-
9207592075-1435 DAMPERDAMPER
-
9214392143-1087 COLLARCOLLAR
-
9216192161-1160 DAMPERDAMPER
