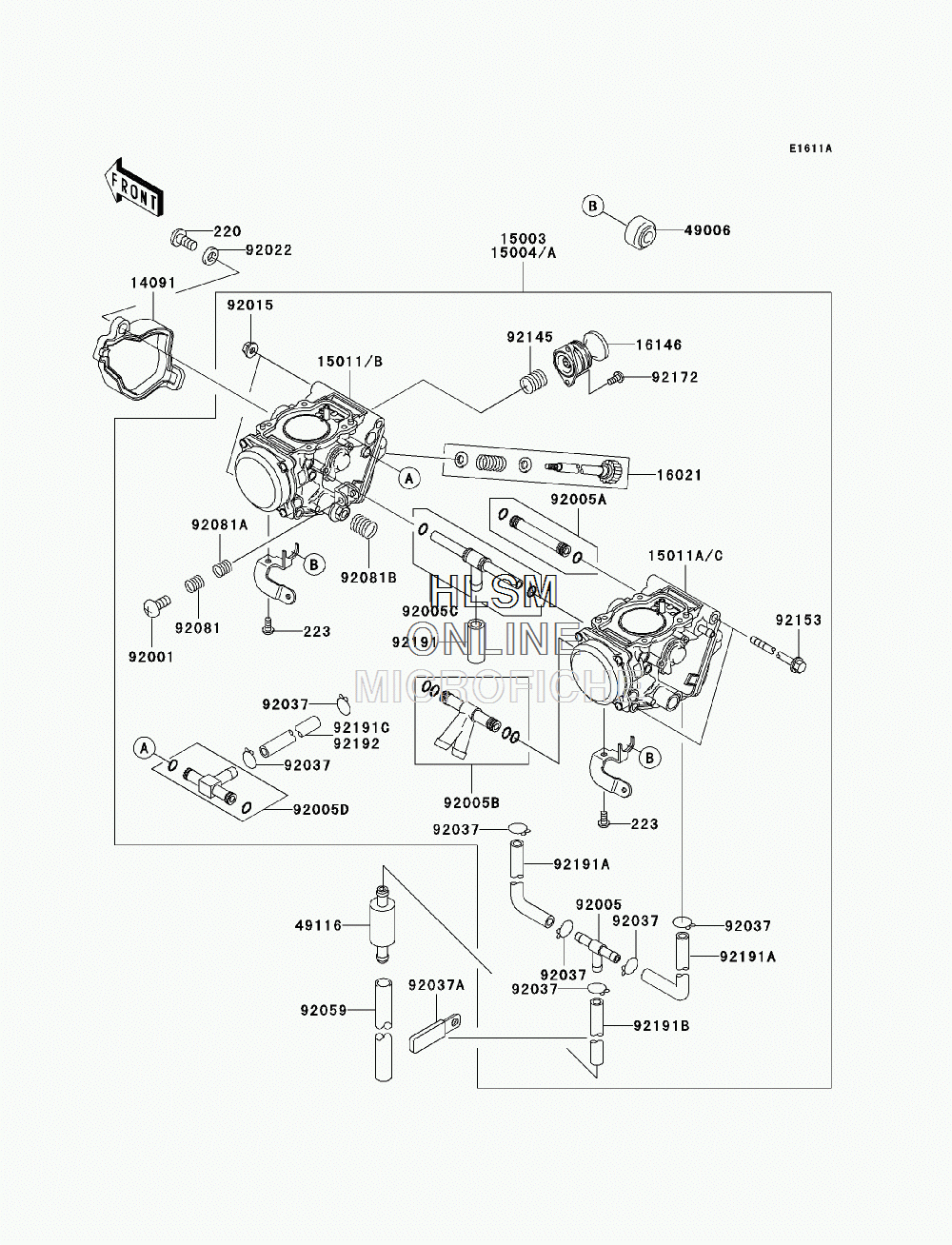

CARBURETOR (CANADA) для Kawasaki BRUTE FORCE 650 4X4 (KVF650D9F) - 2009 года выпуска
-
№АртикулНазвание
-
1409114091-1196 COVER,THROTTLE CABLECOVER,THROTTLE CABLE
-
15004A15004-0037 CARBURETOR-ASSY,CVKR32CARBURETOR-ASSY,CVKR32
-
15011B15011-0116 CARBURETOR, FRONTCARBURETOR, FRONT
-
15011C15011-0117 CARBURETOR, REARCARBURETOR, REAR
-
1602116021-1238 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1614616146-1225 COVER-ASSY,PRIMINGCOVER-ASSY,PRIMING
-
4900649006-1353 BOOT,STARTER CABLEBOOT,STARTER CABLE
-
4911649116-1126 VALVE-ASSYVALVE-ASSY
-
9200192001-1998 BOLT,THROTTLE ADJUSTBOLT,THROTTLE ADJUST
-
9200592005-1112 FITTING,FUEL,T-TYPEFITTING,FUEL,T-TYPE
-
92005A92005-1375 FITTINGFITTING
-
92005B92005-1376 FITTINGFITTING
-
92005C92005-1385 FITTINGFITTING
-
92005D92005-1393 FITTINGFITTING
-
9201592015-1259 NUT,FLANGED,5MMNUT,FLANGED,5MM
-
9202292022-1380 WASHER,5.2X13X1WASHER,5.2X13X1
-
9203792037-1201 CLAMP,TUBECLAMP,TUBE
-
92037A92037-1539 CLAMP,L=45CLAMP,L=45
-
220220AA0408 SCREW-PAN-CROS,4X8SCREW-PAN-CROS,4X8
-
223223AA0408 SCREW-PAN-WS-CROS,4X8SCREW-PAN-WS-CROS,4X8
-
9205992059-1736 TUBE,7X10X100TUBE,7X10X100
-
9208192081-1620 SPRINGSPRING
-
92081A92081-1621 SPRING,THROTTLE ADJUST LWRSPRING,THROTTLE ADJUST LWR
-
92081B92081-1622 SPRING,THROTTLE ADJUST CNTSPRING,THROTTLE ADJUST CNT
-
9214592145-1451 SPRING,PRIMINGSPRING,PRIMING
-
9215392153-1068 BOLT,5X143BOLT,5X143
-
9217292172-0230 SCREWSCREW
-
9219192191-1672 TUBE,7X11X25TUBE,7X11X25
-
92191A92191-1673 TUBE,4.5X8X65TUBE,4.5X8X65
-
92191B92191-1674 TUBE,4.5X8X420TUBE,4.5X8X420
-
9219292192-0605 TUBE,4.5X8.5X3.5TUBE,4.5X8.5X3.5
