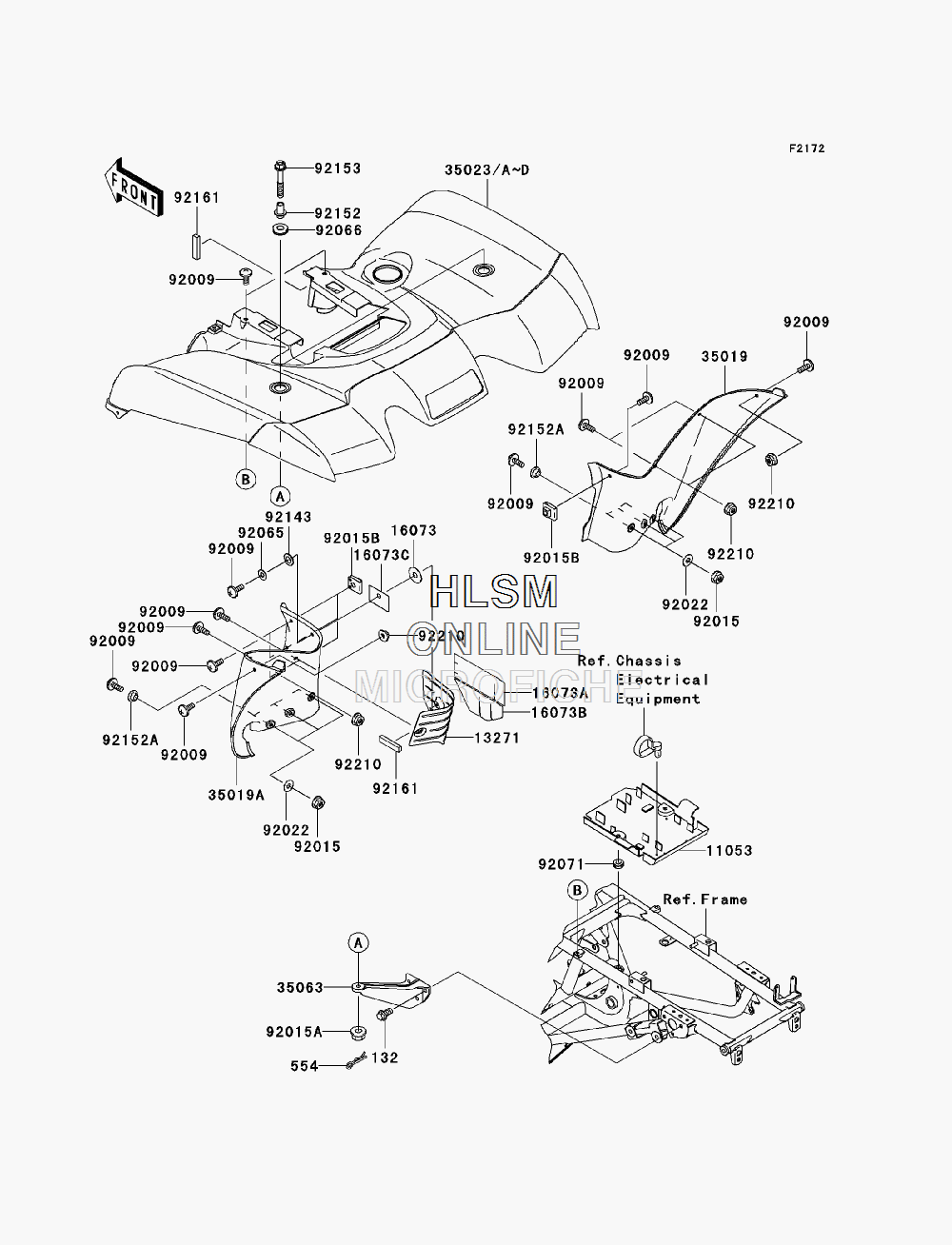

FENDER - REAR для Kawasaki BRUTE FORCE 650 4X4 (KVF650D9F) - 2009 года выпуска
-
№АртикулНазвание
-
132132BB0818 BOLT-FLANGED-SMALL,8X18BOLT-FLANGED-SMALL,8X18
-
554554DA0800 PIN-SNAPPIN-SNAP
-
1105311053-1308 BRACKET,ELECTRICBRACKET,ELECTRIC
-
1327113271-0411 PLATE,HEAT GUARDPLATE,HEAT GUARD
-
1607316073-0023 INSULATORINSULATOR
-
16073A16073-0024 INSULATORINSULATOR
-
16073B16073-0025 INSULATORINSULATOR
-
16073C16073-0026 INSULATORINSULATOR
-
3501935019-0033-6Z FLAP, REAR, RIGHT HAND,F.BLACKFLAP, REAR, RIGHT HAND,F.BLACK
-
35019A35019-0041-6Z FLAP, REAR, LEFT HAND,F.BLACKFLAP, REAR, LEFT HAND,F.BLACK
-
35023A35023-0056-286 FENDER-REAR,W.GREEN (FOR 286)FENDER-REAR,W.GREEN (FOR 286)
-
35023B35023-0056-290 FENDER-REAR,L.GREEN (FOR 777)FENDER-REAR,L.GREEN (FOR 777)
-
35023C35023-0056-6B FENDER-REAR,S.RED (FOR 6B)FENDER-REAR,S.RED (FOR 6B)
-
35023D35023-0056-839 FENDER-REAR,BLACK (FOR 839)FENDER-REAR,BLACK (FOR 839)
-
3506335063-1100 STAY, REAR FENDERSTAY, REAR FENDER
-
9200992009-1621 SCREW,6X16SCREW,6X16
-
9201592015-1367 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
92015A92015-1397 NUT,LOCK,FLANGED,8MMNUT,LOCK,FLANGED,8MM
-
92015B92015-1678 NUT,CLAMP,6MMNUT,CLAMP,6MM
-
9202292022-1093 WASHER,6.5X16X1.0WASHER,6.5X16X1.0
-
9206592065-092 GASKET,6X14X0.8GASKET,6X14X0.8
-
9206692066-1438 PLUGPLUG
-
9207192071-1131 GROMMETGROMMET
-
9214392143-1087 COLLARCOLLAR
-
9215292152-0098 COLLAR,L=38.5COLLAR,L=38.5
-
92152A92152-0224 COLLARCOLLAR
-
9215392153-0984 BOLT,FLANGED,8X70BOLT,FLANGED,8X70
-
9216192161-0272 DAMPERDAMPER
-
9221092210-1368 NUT,6MMNUT,6MM
