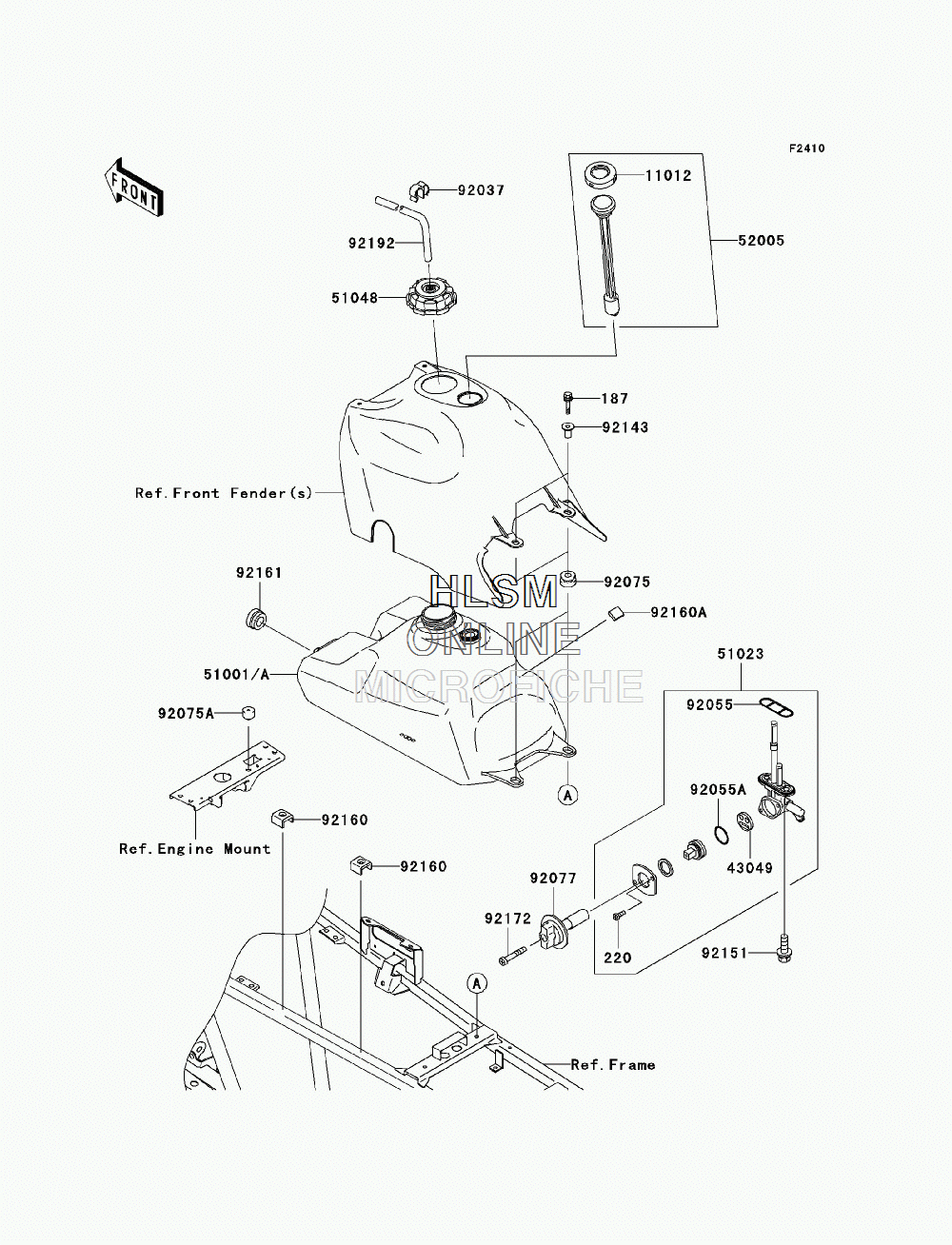

FUEL TANK для Kawasaki PRAIRIE 360 4X4 REALTREE APG HD (KVF360CAF) - 2010 года выпуска
-
№АртикулНазвание
-
187187BA0635 BOLT-UPSET-WSP,6X35BOLT-UPSET-WSP,6X35
-
220220AA0308 SCREW-PAN-CROS,3X8SCREW-PAN-CROS,3X8
-
1101211012-1627 CAP,FUEL GAUGECAP,FUEL GAUGE
-
4304943049-1091 PACKING,TAP VALVEPACKING,TAP VALVE
-
5100151001-0199 TANK-COMP-FUELTANK-COMP-FUEL
-
5102351023-1402 TAP-ASSY,FUELTAP-ASSY,FUEL
-
5104851048-1133 CAP-ASSY-TANK,FUELCAP-ASSY-TANK,FUEL
-
5200552005-7501 GAUGE,FUELGAUGE,FUEL
-
9203792037-1458 CLAMPCLAMP
-
9205592055-1112 RING-O,FUEL TAP PACKINGRING-O,FUEL TAP PACKING
-
92055A92055-1419 RING-O,TAP LEVERRING-O,TAP LEVER
-
9207592075-1787 DAMPERDAMPER
-
92075A92075-1876 DAMPERDAMPER
-
9207792077-1098 KNOB,FUEL TAPKNOB,FUEL TAP
-
9214392143-1100 COLLAR,L=19.6COLLAR,L=19.6
-
9215192151-1198 BOLT,6X14BOLT,6X14
-
9216092160-1773 DAMPERDAMPER
-
92160A92160-3864 DAMPER,25X25DAMPER,25X25
-
9216192161-7502 DAMPERDAMPER
-
9217292172-1073 SCREW,4X25SCREW,4X25
-
9219292192-0750 TUBE,5X9X450TUBE,5X9X450
